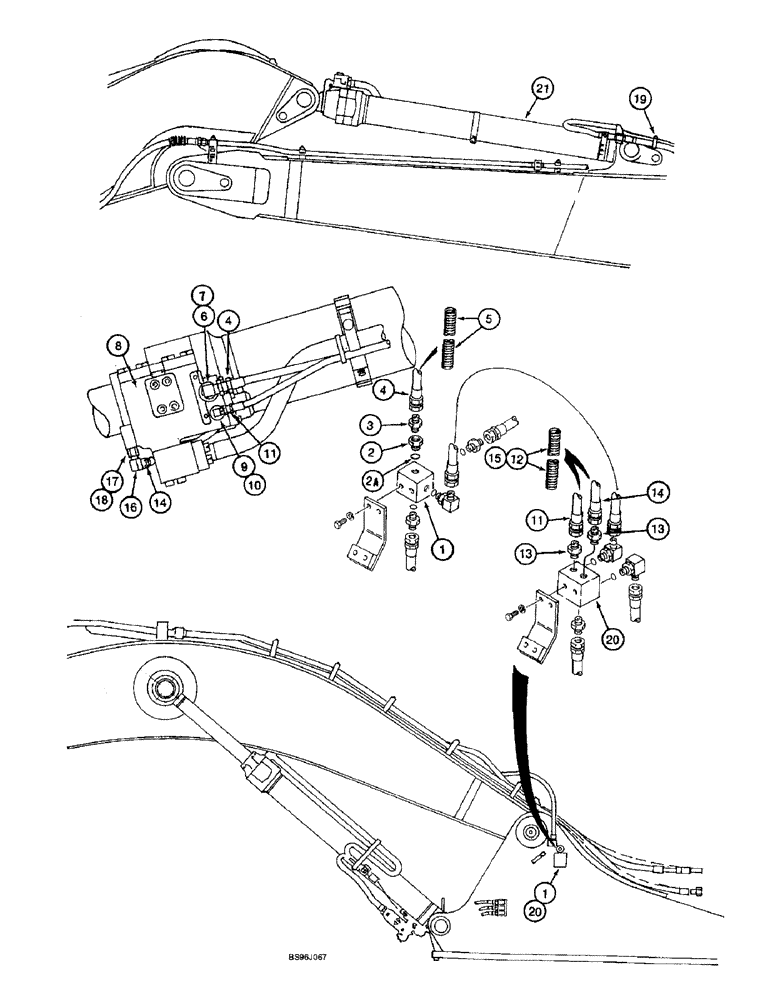

Запчасти Case 9060B (8-186) - LOAD HOLDING OPTION, ARM CYLINDER HYDRAULICS (08) - HYDRAULICS

1

164112A1

MANIFOLD

- hydraulic, arm cylinder, see Figure 8-180 for related parts

1шт.

2

162039A1

BUSHING

- reducer, Includes: Ref. 2A

1шт.

2a

154487A1

O-RING

- reducer bushing

1шт.

3

150720A1

ADAPTER

- straight, special

1шт.

4

164981A1

HYDRAULIC HOSE

7150 mm, Arm Manifold to Arm Cylinder Holding Valve Port \xd2 T1\xd3

1шт.

5

157865A1

TUBE,28 mm ID, 34 mm OD, 800 mm Length

SLEEVE - corrugated

1шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 7

1шт.

7

154503A1

O-RING

- elbow

1шт.

8

164126A1

SAFETY VALVE

VALVE ASSEMBLY - holding, arm cylinder, parts list Figure 8-190, see Figure 8-186 for, Serial Range: mounting-cylinder

1шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- elbow

1шт.

11

164982A1

HYDRAULIC HOSE

- 7300 mm, Arm Cylinder Holding Valve Port \xd2 T2\xd3, Serial Range: -Manifold

1шт.

12

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

13

153597A1

ADAPTER

- straight

2шт.

14

164983A1

HYDRAULIC HOSE

7600 mm, Manifold to Arm Cylinder Holding Valve Port \xd2 Pi\xd3

1шт.

15

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

16

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

17

153413A1

SOCKET

REDUCER - special, Includes: Ref. 18

1шт.

18

154475A1

O-RING

- reducer bushing

1шт.

19

170308A1

BAND

STRAP - tie

1шт.

20

162016A1

MANIFOLD

- hydraulic, see Figure 8-180 for related parts

1шт.

21

164971A1

CYLINDER ASSY.

CYLINDER - 180 (7-3/32) ID x 1910 mm (75-3/16 inch) stroke, arm, see Figures 8-188 for related parts and 8-142 for component parts

1шт.
