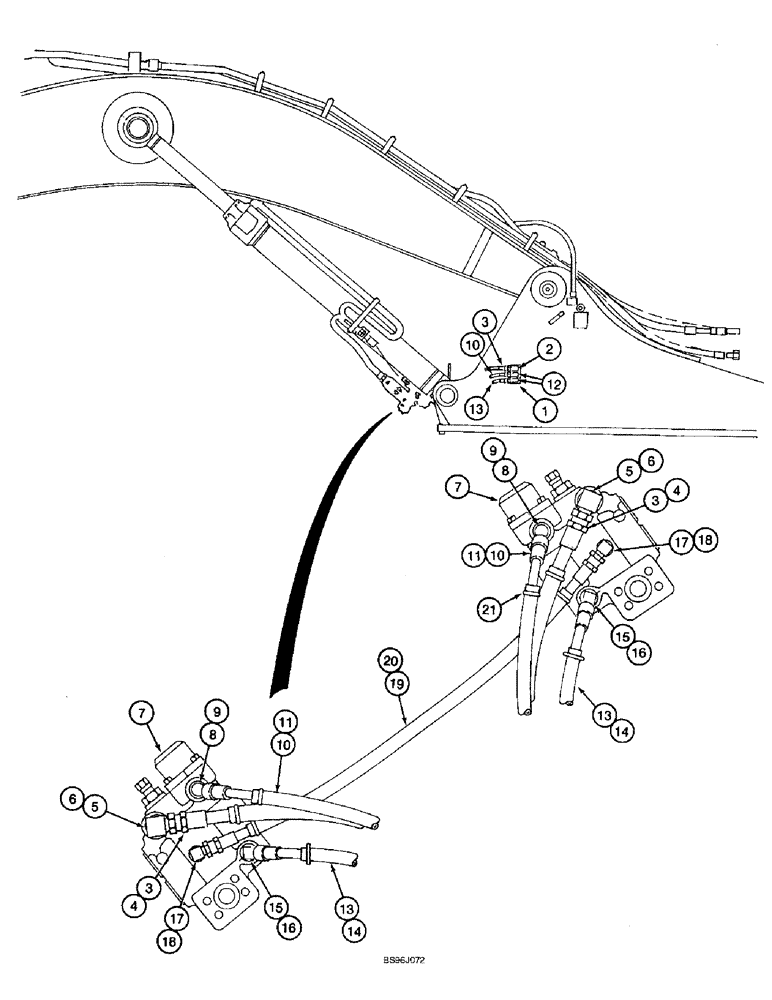

Запчасти Case 9060B (8-182) - LOAD HOLDING OPTION, BOOM CYLINDER HYDRAULICS (08) - HYDRAULICS

1

162014A1

MANIFOLD

- hydraulic, boom cylinder, see Figure 8-182 for related parts

1шт.

2

150602A1

ADAPTER

ELBOW - 90 degree

2шт.

3

164980A1

HYDRAULIC HOSE,12.70 mm ID x 1050.00 mm

- Boom Manifold to Boom Cylinder Holding Valve Port \xd2 T1\xd3 12.70 mm ID x 1050.00 mm

2шт.

4

158061A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

5

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, Includes: Ref. 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

7

164963A1

SAFETY VALVE

VALVE ASSEMBLY - boom cylinder holding, parts list Figure 8-194, see Figure 8-184 for, Serial Range: mounting-cylinder

2шт.

8

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 9

2шт.

9

154475A1

O-RING

- elbow

1шт.

10

164979A1

HYDRAULIC HOSE,9.50 mm ID x 950.00 mm

Boom Cylinder Holding Valve Port \xd2 T2\xd3 to Manifold 9.50 mm ID x 950.00 mm

2шт.

11

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

12

153495A1

ADAPTER

ELBOW - 90 degree

4шт.

13

164978A1

HYDRAULIC HOSE

790 mm, Manifold to Boom Cylinder Holding Valve Port \xd2 P\xd3

2шт.

14

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long

2шт.

15

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 16

2шт.

16

154475A1

O-RING

- elbow

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 18

2шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

19

161988A1

HYDRAULIC HOSE

HOSE - 900 mm (35-3/8 inch) long, crossover line between boom cylinder holding valves

1шт.

20

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, crossover hose

1шт.

21

170308A1

BAND

STRAP - tie

1шт.
