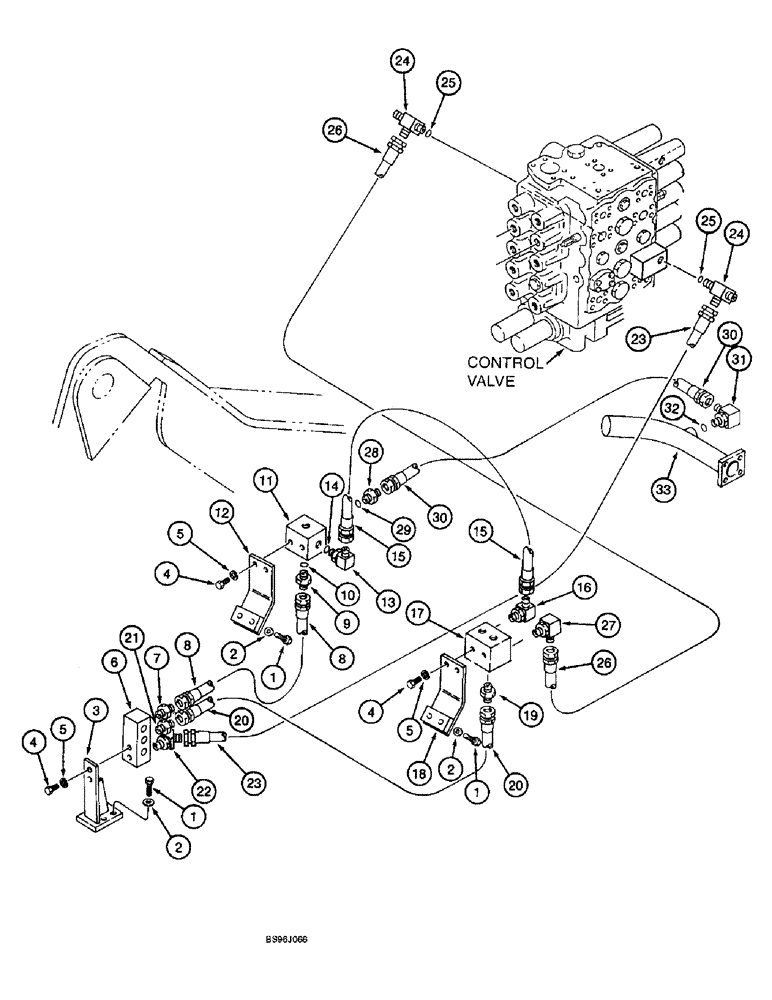

Запчасти Case 9060B (8-180) - LOAD HOLDING OPTION, BASIC HYDRAULICS (08) - HYDRAULICS

1

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

2

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

3

164113A1

BRACKET

- manifold mounting

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

6шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

6

162014A1

MANIFOLD

- hydraulic, lower, boom and arm

1шт.

7

150073A1

ADAPTER

- straight

1шт.

8

165080A1

HOSE ASSY.

HOSE - 800 mm (31-1/2 inch) long, lower manifold to arm manifold

1шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154487A1

O-RING

- adapter

1шт.

11

164112A1

MANIFOLD

- hydraulic, arm

1шт.

12

162012A1

BRACKET

- manifold mounting

1шт.

13

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 14

1шт.

14

154475A1

O-RING

- elbow

1шт.

15

153293A1

HOSE ASSY.

HOSE - 380 mm (15 inch) long

1шт.

16

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

17

162016A1

MANIFOLD

- hydraulic, boom

1шт.

18

162012A1

BRACKET

- manifold mounting

1шт.

19

153597A1

ADAPTER

- straight

1шт.

20

153319A1

HOSE ASSY.

HOSE - 800 mm (31-1/2 inch) long, lower manifold to boom manifold

1шт.

21

153597A1

ADAPTER

- straight

1шт.

22

153488A1

ADAPTER

ELBOW - 45 degree

1шт.

23

161174A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long, at control valve port \xd2 4PP1\xd3

1шт.

24

162827A1

TEE

- special, Includes: Ref. 25

2шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

26

164976A1

HOSE ASSY.

HOSE - 3050 mm (120-1/8 inch) long, at control valve port \xd2 5PP1\xd3

1шт.

27

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

28

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 29

1шт.

29

154503A1

O-RING

- adapter

1шт.

30

164975A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long

1шт.

31

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 32

1шт.

32

154503A1

O-RING

- elbow

1шт.

33

164977A1

HYD TUBE

TUBE - hydraulic return, see Figure 8-18 for related parts

1шт.
