(8-178) - AUXILIARY EQUIPMENT OPTIONS, SUPPLY AND CYLINDER LINES, 3.4 OR 4.0 METER ARM

Запчасти Case 9060B (8-178) - AUXILIARY EQUIPMENT OPTIONS, SUPPLY AND CYLINDER LINES, 3.4 OR 4.0 METER ARM (08) - HYDRAULICS

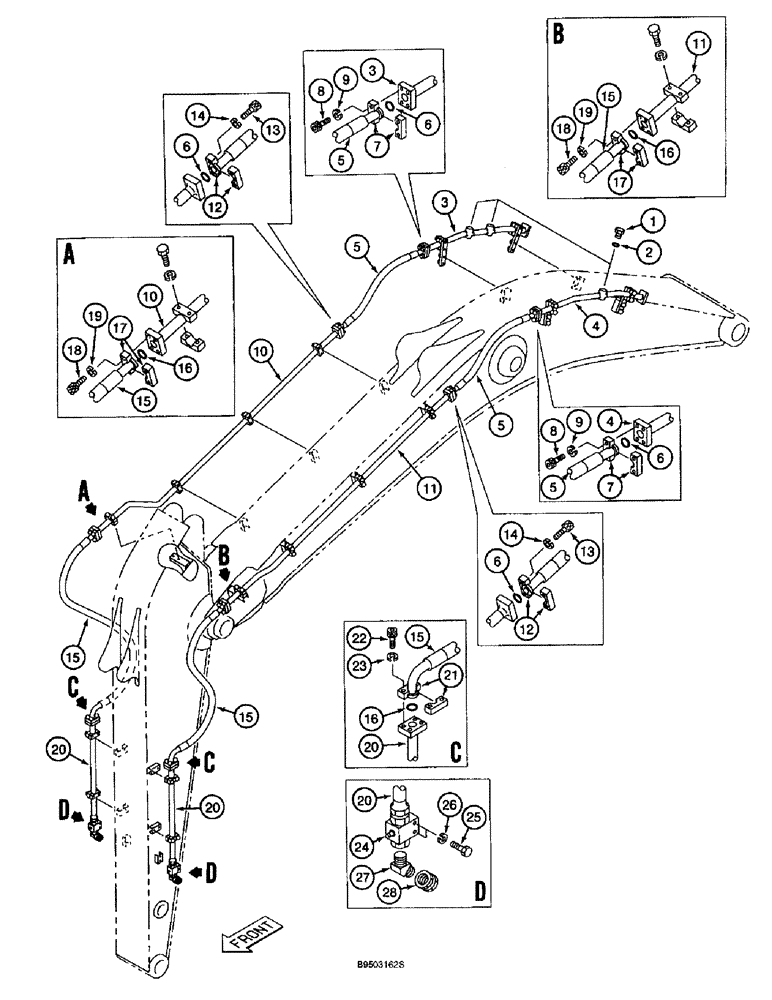

Схема запчастей Case 9060B - (8-178) - AUXILIARY EQUIPMENT OPTIONS, SUPPLY AND CYLINDER LINES, 3.4 OR 4.0 METER ARM (08) - HYDRAULICS
13
6
17
15
2
9
5
10
18
6
28
6
4
7
5
24
14
11
5
11
5
15
21
18
23
3
20
14
16
19
20
25
3
6
20
7
8
8
19
27
12
12
22
15
16
15
9
20
1
4
17
16
15
10
26
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

- port, Includes: Ref. 2

3шт.

2

154503A1

O-RING

- plug

1шт.

3

165102A1

HYD TUBE

TUBE - lower boom, right-hand cylinder supply line

1шт.

4

165101A1

HYD TUBE

TUBE - lower boom, left-hand cylinder supply line

1шт.

5

162610A1

HOSE ASSY.

HOSE - 1300 mm (51-3/16 inch) long, boom (from lower boom tubes to upper boom tubes)

2шт.

6

153626A1

O-RING

- hose

4шт.

7

150124A1

FLANGE

- split

4шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

8шт.

9

150336A1

SPRING WASHER

WASHER - lock, 14 mm

8шт.

10

165100A1

HYD TUBE

TUBE - upper boom, right-hand cylinder supply line

1шт.

11

165099A1

HYD TUBE

TUBE - upper boom, left-hand cylinder supply line

1шт.

12

150124A1

FLANGE

- split

4шт.

13

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

8шт.

14

150336A1

SPRING WASHER

WASHER - lock, 14 mm

8шт.

15

165097A1

HOSE ASSY.

HOSE - 2050 mm (80-3/4 inch) long, boom-to-arm junction (upper boom tubes to arm tubes) 3.4 M arm only, if used

2шт.

15

170739A1

HOSE ASSY.

HOSE - 2700 mm (106-1/4 inch) long, boom-to-arm junction (upper boom tubes to arm tubes) 4.0 M arm only, if used

2шт.

16

153626A1

O-RING

- hose

4шт.

17

150124A1

FLANGE

- split

4шт.

18

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

8шт.

19

150336A1

SPRING WASHER

WASHER - lock, 14 mm

8шт.

20

165098A1

TUBE ASSY.,6 mm ID, 8 mm OD

TUBE - arm

2шт.

21

150124A1

FLANGE

- split

4шт.

22

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

8шт.

23

150336A1

SPRING WASHER

WASHER - lock, 14 mm

8шт.

24

162628A1

VALVE

- stop, Includes: Ref. 24A

2шт.

24a

164520A1

SEAL KIT

KIT - seal, stop valve, not shown

1шт.

25

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

4шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

27

162615A1

ADAPTER

ELBOW - 45 degree, special

2шт.

28

162627A1

PLUG

- elbow

2шт.
