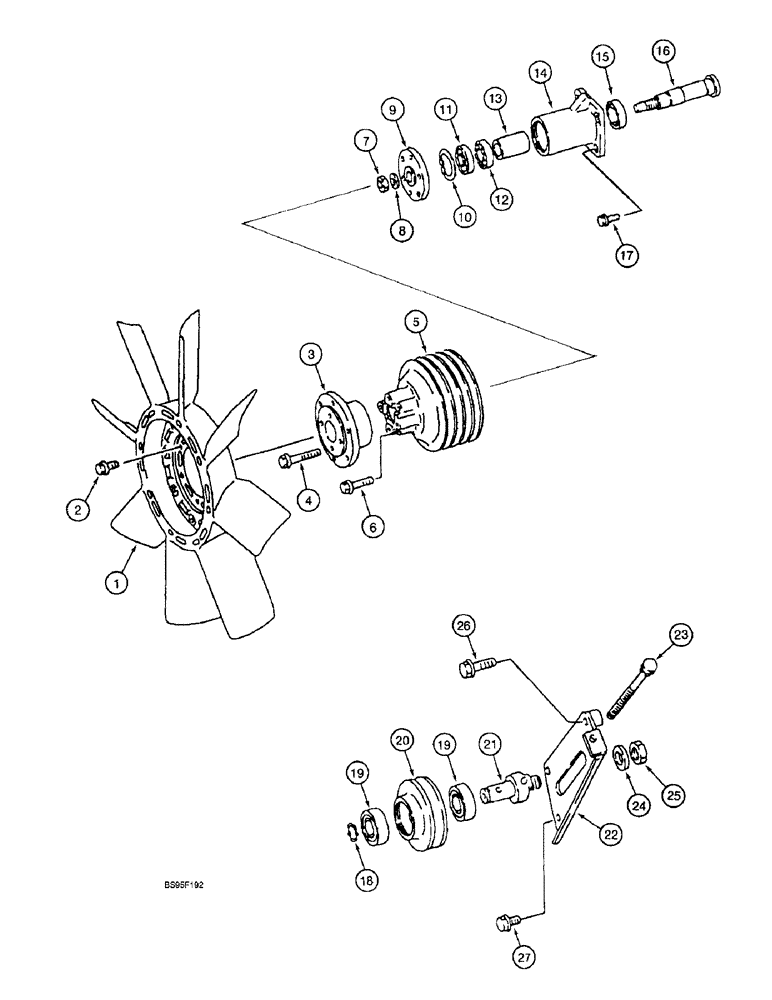

Запчасти Case 9060B (2-12) - FAN, FAN DRIVE AND IDLER PULLEY, 6D22-TC ENGINE (02) - ENGINE

1

240285A1

FAN

- cooling

1шт.

2

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

8шт.

3

240287A1

SPACER

FLANGE - fan mounting

1шт.

4

240288A1

BOLT

- hex flange, 10 x 75 mm

4шт.

4

134797A1

BOLT,Hex, M10 x 90mm

- hex flange, 10 x 90 mm

4шт.

5

240286A1

PULLEY

- cooling fan

1шт.

6

134807A1

BOLT,Hex, M10 x 50mm

- hex flange, 10 x 50 mm

4шт.

134793A1

PULLEY

DRIVE ASSEMBLY - fan, Includes: Ref. 7 - 16

1шт.

7

132633A1

NUT

- hex jam, 20 mm

1шт.

8

134789A1

WASHER

- flat, 22.5 x 36 mm

1шт.

9

134777A1

FLANGE

- coupling

1шт.

10

134770A1

RING, SNAP

RING - retaining

1шт.

11

134774A1

BALL BEARING

BEARING - pulley drive

1шт.

12

134739A1

BALL BEARING

BEARING - ball

1шт.

13

134786A1

SPACER

- fan drive shaft

1шт.

14

NSS

NOT SOLD SEPARAT

DRIVE - fan

1шт.

15

134776A1

BALL BEARING

BEARING - ball

1шт.

16

134783A1

SHAFT

- fan drive

1шт.

17

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

2шт.

17

133250A1

BOLT,Hex, M12 x 25mm, W/ Captive Wshr

- hex, with captive washer, 12 x 25 mm

2шт.

134745A1

PULLEY

Assy - Idler, Incl Ref 18 - 25

1шт.

18

134771A1

RING, SNAP

RING - retaining

1шт.

19

240397A1

BEARING, BALL

BEARING - ball, replaces 134738A1 bearing

2шт.

20

134778A1

PULLEY

- fan idler

1шт.

21

134751A1

SHAFT

- idler pulley

1шт.

22

133341A1

BRACKET

- idler pulley

1шт.

23

134796A1

BOLT

- hex, 10 x 150 mm

1шт.

24

134787A1

WASHER

- flat, 17 mm

1шт.

25

134814A1

JAM NUT

- hex jam, 16 mm

1шт.

26

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

1шт.

26

133294A1

BOLT,Hex Flg, M10 x 30mm

- hex flange, 10 x 30 mm

1шт.

27

133168A1

BOLT,M10 x 30mm, W/ Captive Wshr

- with captive washer, 10 x 30 mm

4шт.
