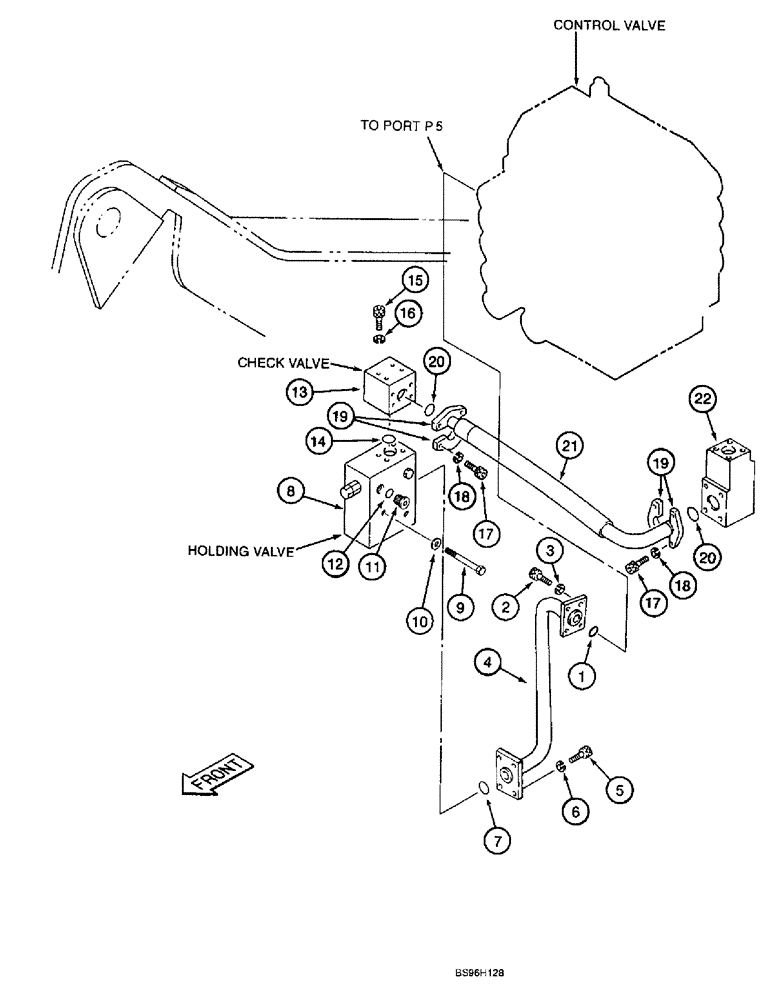

Запчасти Case 9060B (8-174) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, DUAL FLOW LINES (08) - HYDRAULICS

1

154548A1

O-RING

- tube

1шт.

2

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

- hex, 10 - 1.5 x 70 mm, class 10.9

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

170732A1

TUBE

- dual flow supply line, control valve port \xd2 P5\xd3 to holding valve

1шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

154548A1

O-RING

-, Serial Range: tube-valve

1шт.

8

153296A1

VALVE

ASSEMBLY - holding, parts list figure 8-196

1шт.

9

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

2шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

11

159085A1

PLUG

- port, holding valve, Includes: Ref. 12

1шт.

12

154487A1

O-RING

- port plug

1шт.

13

162674A1

VALVE

- check

1шт.

14

154548A1

O-RING

- check valve to holding valve

1шт.

15

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

8шт.

18

892-11010

LOCK WASHER,M10

8шт.

19

A12306

FLANGE

CLAMP - split flange

4шт.

20

162246A1

O-RING

- hose

2шт.

21

170744A1

HOSE ASSY.

HOSE - 500 mm (19-5/8 inch) long, check valve to holding valve to control valve manifold

1шт.

22

163677A1

MANIFOLD

- control valve, see Figure 8-12 for related parts

1шт.
