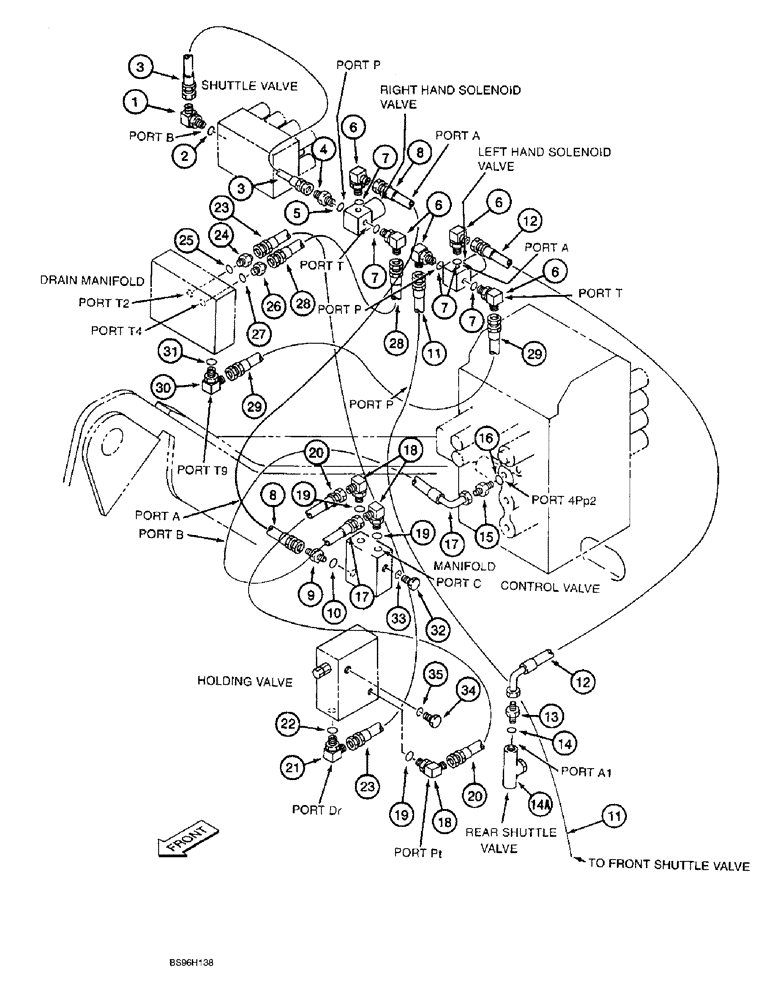

Запчасти Case 9060B (8-172) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT LINES (08) - HYDRAULICS

1

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

156735A1

HOSE,6.3 mm ID x 350.00 mm

- 350 mm (13-3/4 inch) long (shuttle valve port \xd2 B\xd3 to right-hand solenoid valve port \xd2 P\xd3 )

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 7

5шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

164940A1

HOSE ASSY.

HOSE - 1600 mm (63 inch) long, right-hand solenoid valve port \xd2 A\xd3 to manifold port \xd2 A\xd3 )

1шт.

9

153378A1

ADAPTER

- straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- adapter

1шт.

11

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

Left-Hand Solenoid Valve Port \xd2 P\xd3 to Front Shuttle Valve Port \xd2 B\xd3 ), See Figure 8-168 6.40 mm ID x 4500.00 mm

1шт.

12

161486A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long, left-hand solenoid valve port \xd2 A\xd3 to rear shuttle valve port \xd2 A1\xd3

1шт.

13

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14a

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1, see Figure 8-168 for mounting

1шт.

15

162554A1

FITTING

ADAPTER - special, Includes: Ref. 16

1шт.

16

154475A1

O-RING

- elbow

1шт.

17

162648A1

HOSE

- 1150 mm (45-1/4 inch) long, manifold port \xd2 C\xd3 to control valve port \xd2 4Pp2\xd3 )

1шт.

18

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 19

3шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

20

151867A1

HOSE,63.00 mm ID x 600.00 mm

- Manifold port \xd2 B\xd3 to holding valve port Pt 63.00 mm ID x 600.00 mm

1шт.

21

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, pilot relief lines, Includes: Ref. 22

1шт.

22

154475A1

O-RING

- elbow, pilot relief lines

1шт.

23

152753A1

HOSE,95.00 mm ID x 1100.00 mm

- Holding valve port \xd2 Dr\xd3 to drain manifold port \xd2 T2\xd3 ), Pilot relief lines 95.00 mm ID x 1100.00 mm

1шт.

24

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, pilot relief lines, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, pilot relief lines

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, pilot relief lines, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, pilot relief lines

1шт.

28

153342A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long, right-hand solenoid valve port \xd2 T\xd3 to drain manifold port \xd2 T4\xd3 ), pilot relief lines

1шт.

29

153342A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long, left-hand solenoid valve port \xd2 T\xd3 to drain manifold port \xd2 T9\xd3, pilot relief lines

1шт.

30

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, pilot relief lines, Includes: Ref. 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, pilot relief lines

1шт.

32

162557A1

PLUG

- special, at manifold, pilot relief lines, Includes: Ref. 33

1шт.

33

154475A1

O-RING

- plug, pilot relief lines

1шт.

34

159085A1

PLUG

- special, at holding valve, pilot relief lines, Includes: Ref. 35

1шт.

35

154487A1

O-RING

- plug, pilot relief lines

1шт.
