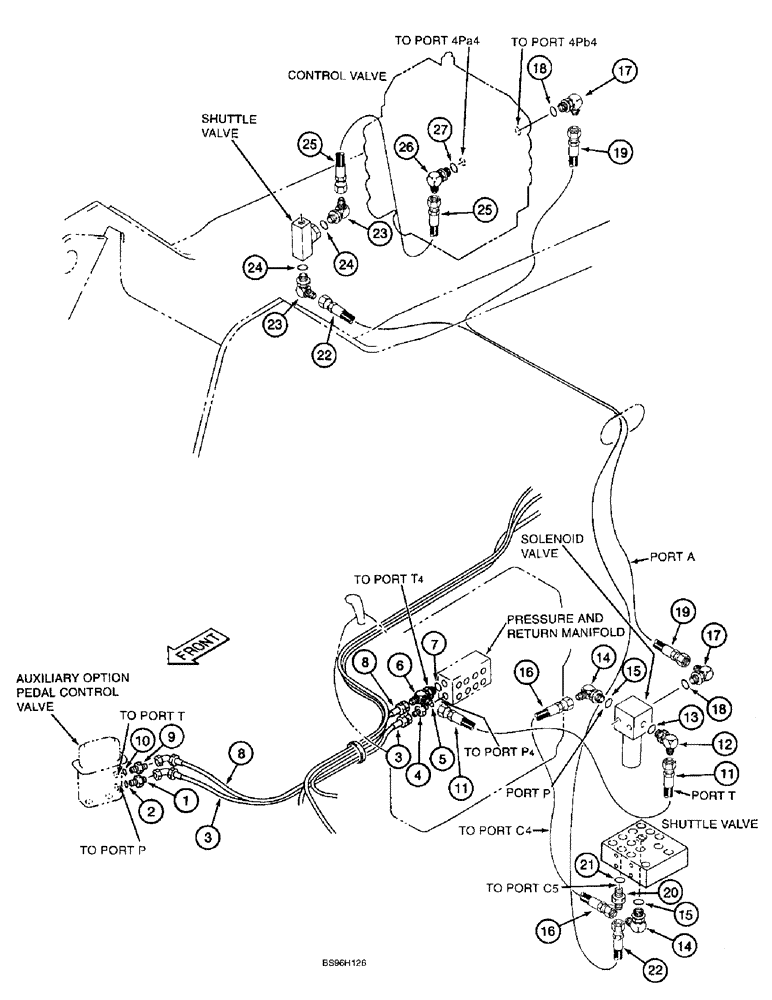

Запчасти Case 9060B (8-170) - DBL ACTN AXLRY EQUIP OPTION,PILOT LINES,OPERATOR/XD5 S CAB,PILOT RELIEF LINES,PILOT SUPPLY LINES (08) - HYDRAULICS

1

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, shuttle valve to left-hand solenoid valve port \xd2 P\xd3

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

6

159497A1

TEE

- special, pilot supply lines, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee, pilot supply lines

1шт.

8

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, pedal control valve pilot supply line (pressure and return manifold port \xd2 P4\xd3 to pedal control valve port \xd2 P\xd3 )

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, pilot supply lines, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, pilot supply lines

1шт.

11

153398A1

HOSE ASSY.

HOSE - 1400 mm (55-1/4 inch) long, pedal control valve pilot supply, (pressure and return manifold port \xd2 T4\xd3 to solenoid valve port \xd2 T\xd3

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, pilot supply lines, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, pilot supply lines

1шт.

14

153559A1

ELBOW

- 90 degree, pilot supply lines, Includes: Ref. 15

2шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, pilot supply lines

1шт.

16

164942A1

HOSE ASSY.

HOSE - 350 mm (13-3/4 inch) long, pedal control valve pilot supply, solenoid valve port \xd2 P\xd3 to shuttle valve port \xd2 C4\xd3

1шт.

17

153559A1

ELBOW

- 90 degree, pilot supply lines, Includes: Ref. 18

2шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, pilot supply lines

1шт.

19

157970A1

HOSE ASSY.

HOSE - 2700 mm (106-1/4 inch) long, solenoid valve port \xd2 A\xd3 to control valve port \xd2 4Pb4\xd3, pilot supply lines

1шт.

20

152747A1

ADAPTER

- straight, pilot supply lines, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, pilot supply lines

1шт.

22

157967A1

HOSE

- 2200 mm (86-5/8 inch) long, shuttle valve port \xd2 C5\xd3 to shuttle valve port \xd2 A2\xd3, pilot supply lines

1шт.

23

153559A1

ELBOW

- 90 degree, pilot supply lines, Includes: Ref. 24

2шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, pilot supply lines

1шт.

25

152889A1

HOSE ASSY.

HOSE - 650 mm (25-5/8 inch) long, control valve port \xd2 4Pa4\xd3 to shuttle valve port \xd2 B\xd3, pilot supply lines

1шт.

26

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, pilot supply lines, Includes: Ref. 27

1шт.

27

154475A1

O-RING

- elbow, pilot supply lines

1шт.
