Запчасти Case 9060B (8-168) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT SUPPLY LINE AND COMPONENT MOUNTING (08) - HYDRAULICS

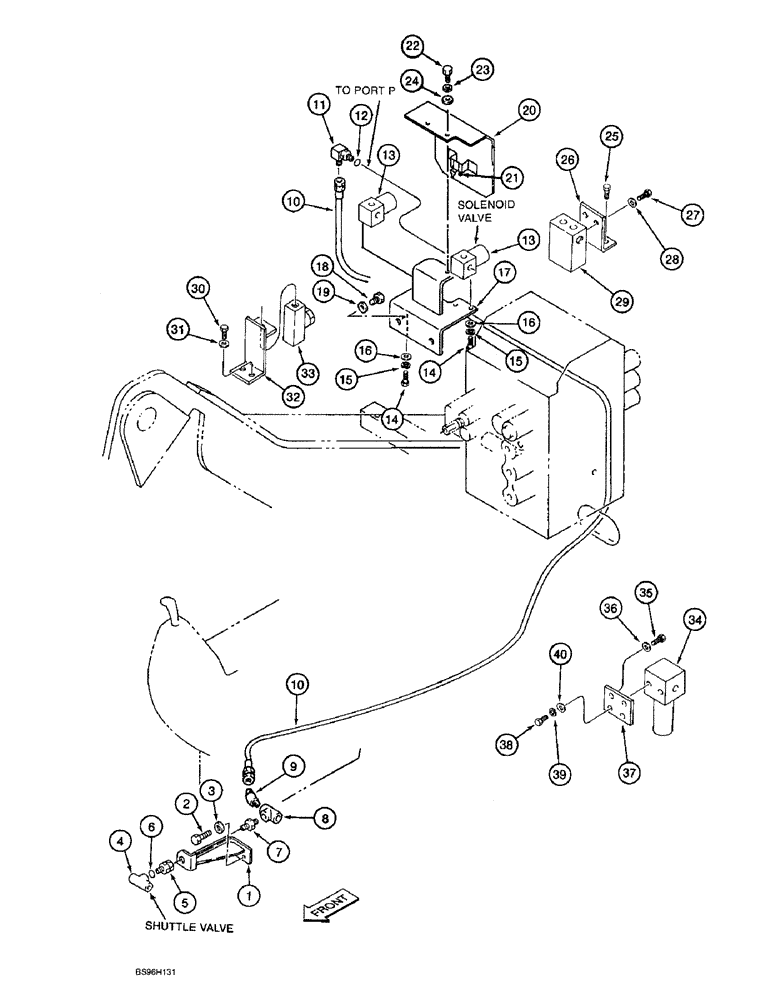

Схема запчастей Case 9060B - (8-168) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT SUPPLY LINE AND COMPONENT MOUNTING (08) - HYDRAULICS
32
30
3
27
28
18
10
13
16
19
33
38
14
13
8
25
29
21
34
11
35
9
37
6
24
39
15
17
12
10
5
23
22
15
14
20
16
1
4
40
2
7
31
26
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162638A1

BRACKET

- mounting

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

5

162654A1

HYD CONNECTOR

ADAPTER - straight

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

7

162640A1

ADAPTER

- special

1шт.

8

152135A1

TEE

- special

1шт.

9

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

10

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

Solenoid Valve Pilot Supply Line (T in shuttle valve to solenoid valve port \xd2 P\xd3 ) 6.40 mm ID x 4500.00 mm

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

162538A1

VALVE

ASSEMBLY - solenoid, parts list Figure 8-136

2шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

4шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

4шт.

17

162681A1

BRACKET

- mounting

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

19

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

20

162679A1

COVER

- special

1шт.

21

162299A1

CLIP

- cover

1шт.

22

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

23

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

2шт.

25

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

26

170746A1

BRACKET

- manifold mounting

1шт.

27

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

28

150811A1

WASHER

- flat, special, 12 mm

2шт.

29

170738A1

MANIFOLD

- hydraulic

1шт.

30

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

31

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

32

170743A1

BRACKET

- shuttle valve mounting

1шт.

33

158186A1

VALVE PRESSURE RELIE

VALVE - shuttle

3шт.

34

162680A1

VALVE

- solenoid, parts list Figure 8-134

1шт.

35

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

36

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

37

162537A1

LARGE PLATE

BRACKET - mounting

1шт.

38

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

39

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

40

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

2шт.
