Запчасти Case 9060B (8-166) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS

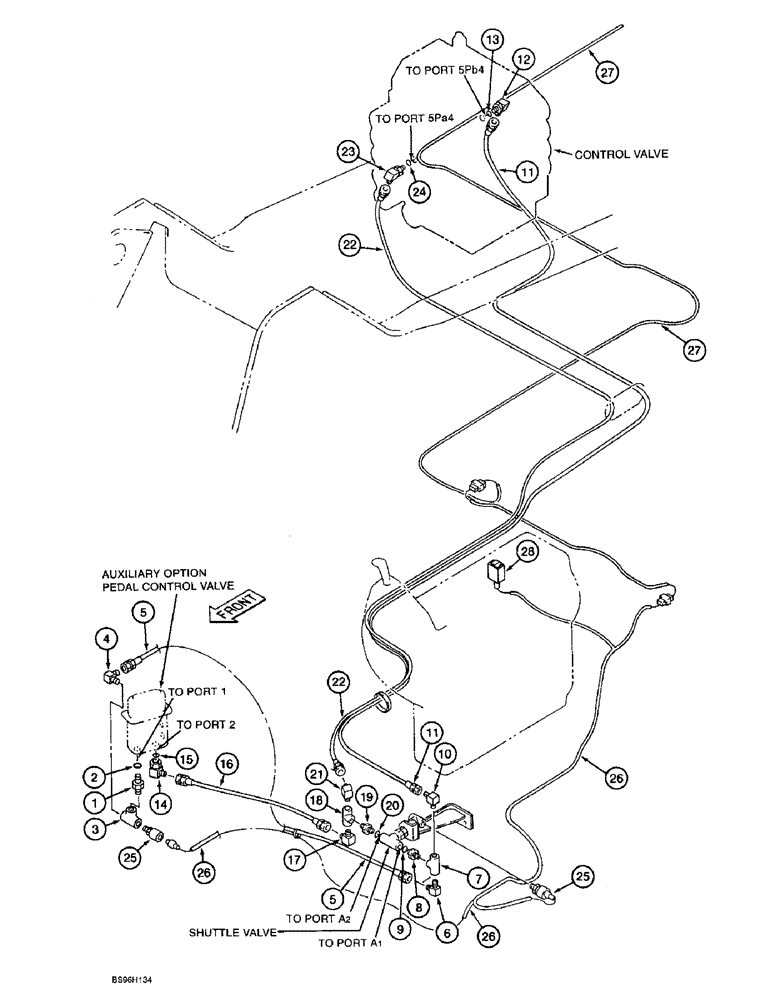

Схема запчастей Case 9060B - (8-166) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS
26
23
27
27
26
26
28
6
7
5
22
12
8
4
14
24
16
25
1
11
18
3
10
2
21
17
5
13
25
20
9
11
15
19
22

Артикул

Название

Примечание

Количество

1

152899A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

3

152135A1

TEE

- hydraulic

1шт.

4

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

5

152281A1

HOSE,63.00 mm ID x 800.00 mm

63.00 mm ID x 800 mm - Pedal-forward signal line (Pedal control valve port \xd2 1\xd3 to shuttle valve port \xd2 A1\xd3 )

1шт.

6

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

7

152135A1

TEE

- hydraulic

1шт.

8

152899A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connecter

1шт.

10

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

11

157840A1

HOSE ASSY.

HOSE - 4250 mm (167-1/3 inch) long, pedal-forward signal line (from tee at shuttle valve port \xd2 A1\xd3 to control valve port \xd2 5Pb4\xd3 )

1шт.

12

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 13

1шт.

13

154475A1

O-RING

- elbow

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, pedal-backward signal lines, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, pedal-backward signal lines

1шт.

16

152775A1

HOSE ASSY.

HOSE - 500 mm (19-3/4 inch) long, pedal-backward signal line (pedal control valve port \xd2 2\xd3 to shuttle valve port \xd2 A2\xd3 )

1шт.

17

153599A1

ADAPTER

ELBOW - 45 degree, pedal-backward signal lines

1шт.

18

152135A1

TEE

- hydraulic, pedal-backward signal lines

1шт.

19

152899A1

HYD CONNECTOR

CONNECTOR - straight, pedal-backward signal lines, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, pedal-backward signal lines

1шт.

21

153599A1

ADAPTER

ELBOW - 45 degree, pedal-backward signal lines

1шт.

22

157838A1

HOSE,6.5 mm ID x 3500.00 mm

- 3500 mm (137-3/4 inch) long, pedal-backward signal line (from tee at shuttle valve port \xd2 A2\xd3 to control valve port \xd2 5Pa4\xd3 )

1шт.

23

156554A1

ELBOW

- 90 degree, special, pedal-backward signal lines, Includes: Ref. 24

1шт.

24

154475A1

O-RING

- elbow, pedal-backward signal lines

1шт.

25

159599A1

PRESSURE SWITCH

SWITCH - pressure, electrical components

2шт.

26

170731A1

HARNESS

- wiring, electrical components

1шт.

27

170730A1

HARNESS

- wiring, electrical components

1шт.

28

162660A1

TOGGLE SWITCH

Aux Attachment Control Switch - selector, single/double option, electrical components

1шт.

Выбрано товаров: 28
