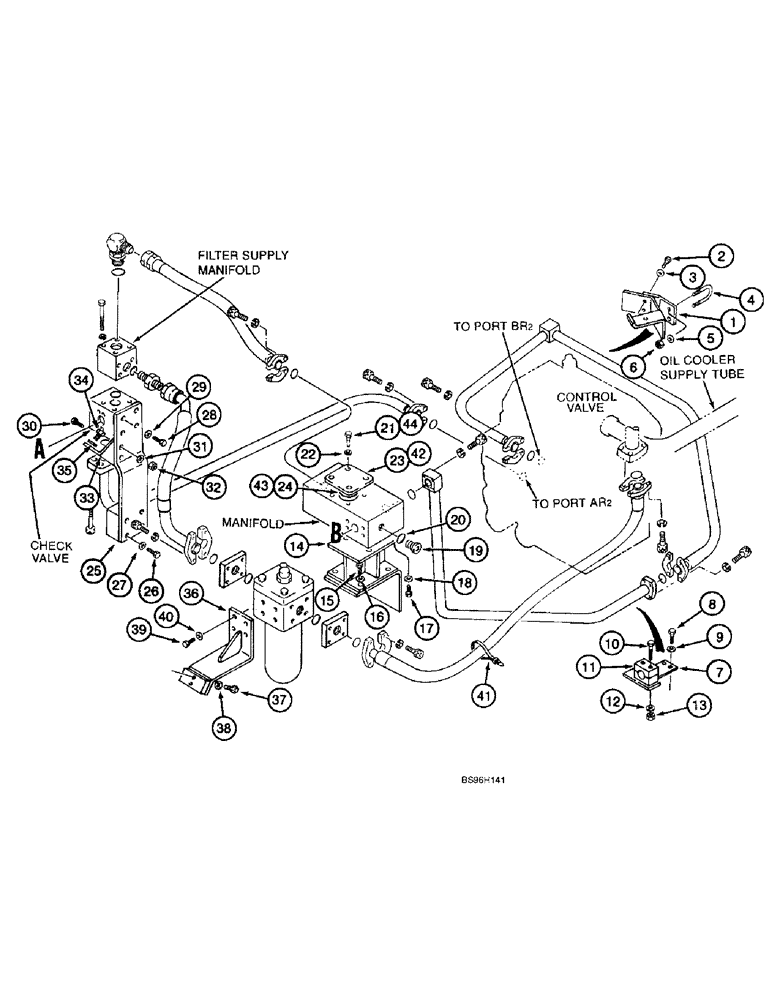

Запчасти Case 9060B (8-162) - AUXILIARY EQUIPMENT - SINGLE AND DOUBLE ACTION, COMPONENT MOUNTING & TUBE SUPPORTS (08) - HYDRAULICS

1

170727A1

BRACKET

- tube support

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

152065A1

U-BOLT,M10 x 56mm W x 68mm L

BOLT - U-type

1шт.

5

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

7

170718A1

BRACKET

- tube support

1шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

9

150811A1

WASHER

- flat, special, 12 mm

2шт.

10

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex, 12 - 1.75 x 90 mm, class 10.9

2шт.

11

162613A1

COLLAR

CLAMP - tube

2шт.

12

150811A1

WASHER

- flat, special, 12 mm

2шт.

13

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

14

170714A1

BRACKET

- mounting, manifold, left-hand side

1шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

18

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

19

162659A1

PLUG

- port, manifold, Includes: Ref. 20

1шт.

20

154523A1

O-RING

- plug

1шт.

21

862-16035

HEX SOC SCREW,M16 x 35mm, Cl 12.9

SCREW - hex socket, 16 - 2.0 x 35 mm, class 12.9, single action only, if used

4шт.

22

170617A1

SPRING WASHER

WASHER - lock

4шт.

23

163435A1

COVER

- top of manifold, single action only, if used, Includes: Ref. 24

1шт.

24

154640A1

O-RING

- cover

1шт.

25

170722A1

BRACKET

- support, manifold, right-hand side

1шт.

26

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

27

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

29

150811A1

WASHER

- flat, special, 12 mm

2шт.

30

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

31

150811A1

WASHER

- flat, special, 12 mm

2шт.

32

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

33

170719A1

BRACKET

- support, manifold, right-hand side

1шт.

34

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

35

150811A1

WASHER

- flat, special, 12 mm

2шт.

36

170715A1

BRACKET

- mounting, hydraulic filter

1шт.

37

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

38

150811A1

WASHER

- flat, special, 12 mm

2шт.

39

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

40

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

41

170308A1

BAND

STRAP - tie

1шт.

42

162658A1

MANIFOLD VALVE

VALVE - stop, double action only, if used, Includes: Ref. 43

1шт.

43

154640A1

O-RING

- valve

1шт.

44

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

- hex socket, 16 - 2.0 x 30 mm, class 12.9, double action only, if used

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
