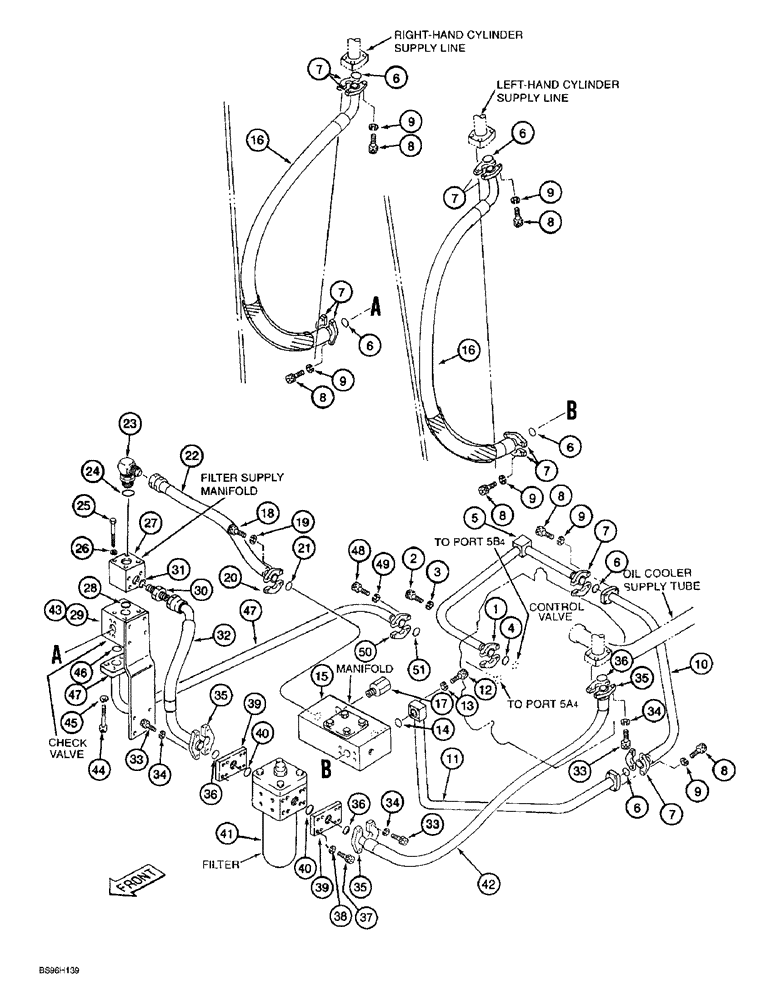

Запчасти Case 9060B (8-160) - AUXILIARY EQUIPMENT - SINGLE AND DOUBLE ACTION, BASIC HYDRAULICS-CONTROL VALVE TO FILTER (08) - HYDRAULICS

1

A12306

FLANGE

CLAMP - split flange

2шт.

2

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

162246A1

O-RING

- tube

1шт.

5

170726A1

TUBE

- control valve supply

1шт.

6

153626A1

O-RING

- tube

6шт.

7

150124A1

FLANGE

- split

12шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

24шт.

9

150336A1

SPRING WASHER

WASHER - lock, 14 mm

24шт.

10

170725A1

HOSE ASSY.

HOSE - 700 mm (27-1/2 inch) long, Serial Range: valve-manifold

1шт.

11

170716A1

TUBE,42 mm OD

- valve to manifold

1шт.

12

862-14080

HEX SOC SCREW,M14 x 80mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 80 mm, class 12.9

4шт.

13

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

14

153626A1

O-RING

- plate

1шт.

15

162657A1

MANIFOLD

- left-hand side

1шт.

16

170712A1

HOSE ASSY.

HOSE - 2300 mm (90-1/2 inch) long, Serial Range: manifold-boom

2шт.

17

162656A1

VALVE

- relief

1шт.

18

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

19

112309A1

LOCK WASHER

- lock, special

4шт.

20

A12301

CLAMP,Half

CLAMP - split flange, hose

2шт.

21

153626A1

O-RING

- hose

1шт.

22

170740A1

HOSE ASSY.

HOSE - 790 mm (31-1/8 inch) long, crossover, Serial Range: manifold-manifold

1шт.

23

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

- 90 degree, Includes: Ref. 24

1шт.

24

154599A1

O-RING

- elbow

1шт.

25

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

- hex socket, 14 - 2.0 x 90 mm, class 12.9

4шт.

26

150336A1

SPRING WASHER

WASHER - lock, 14 mm

4шт.

27

162667A1

MANIFOLD

- hydraulic, upper right-hand sidel

1шт.

28

153626A1

O-RING

-, Serial Range: manifold-manifold

1шт.

29

163436A1

MANIFOLD

- hydraulic, lower right-hand side, single action only if used

1шт.

30

159047A1

ADAPTER

- straight, special, Includes: Ref. 31

1шт.

31

154599A1

O-RING

- adapter

1шт.

32

170721A1

HOSE ASSY.

HOSE - 630 mm (24-3/4 inch) long, upper right-hand, Serial Range: manifold-filter

1шт.

33

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

12шт.

34

112309A1

LOCK WASHER

- lock, special, hose

12шт.

35

A12301

CLAMP,Half

CLAMP - split flange

6шт.

36

153626A1

O-RING

- hose

3шт.

37

861-12025

HEX SOC SCREW,M12 x 25mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 25 mm, class 12.9

8шт.

38

112312A1

LOCK WASHER

- lock, 12 mm

8шт.

39

170723A1

FLANGE

PLATE - adapter, for split flange, at filter

2шт.

40

154667A1

O-RING

- flat, Serial Range: flange-filter

2шт.

41

168028A1

FILTER ASSY

FILTER ASSEMBLY - hydraulic, Includes: Ref. 41A, Replaces 170724A1

1шт.

41a

170806A1

HYDRAULIC OIL FILTER

ELEMENT - filter, not shown

1шт.

42

170717A1

HOSE ASSY.

HOSE - 970 mm (38-1/8 inch) long, Serial Range: filter-valve

1шт.

43

162665A1

VALVE

- three directional, double action only, if used

1шт.

44

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9, if used

4шт.

45

150336A1

SPRING WASHER

WASHER - lock, 14 mm, if used

4шт.

46

153626A1

O-RING

- tube if used

1шт.

47

170733A1

TUBE

- right-hand supply, control valve to three directional valve, double action only, if used

1шт.

48

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, if used

4шт.

49

892-11010

LOCK WASHER,M10

If used M10

4шт.

50

A12306

FLANGE

CLAMP - split flange, if used

2шт.

51

162246A1

O-RING

- tube, if used

1шт.
