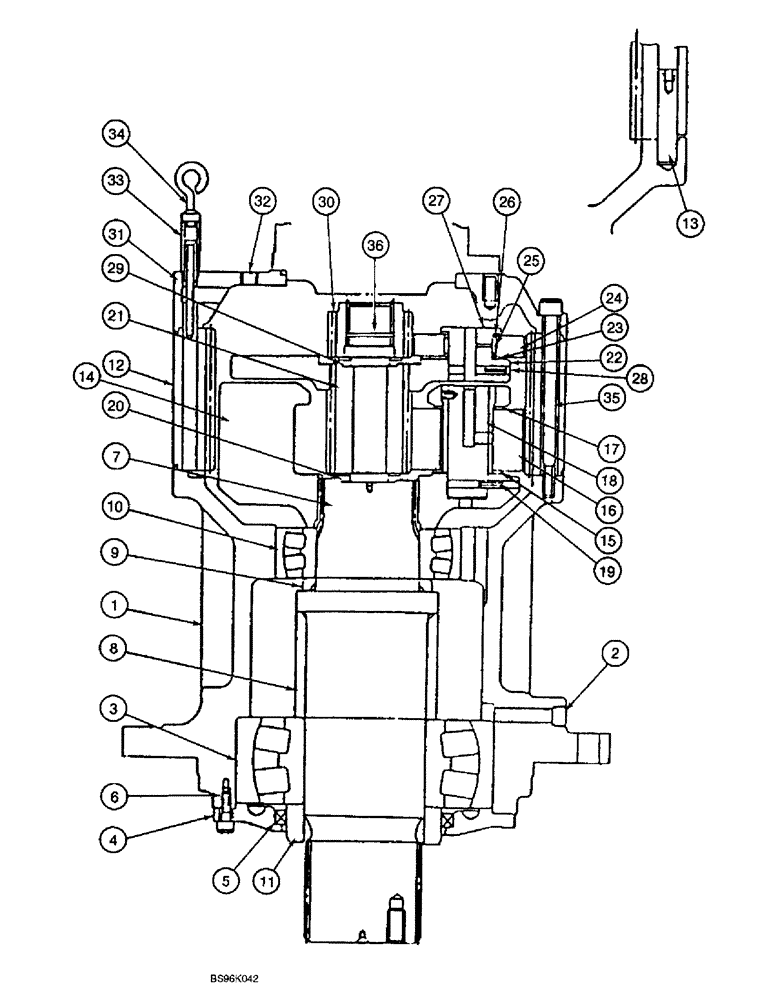

Запчасти Case 9060B (8-158) - REDUCTION GEAR ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
158856A1
REDUCER
GEAR ASSEMBLY - reduction, Includes: Ref. 1 - 36
1шт.
1
150321A1
HOUSING ASSY.
HOUSING - gear assembly
1шт.
2
150829A1
PLUG
- port
1шт.
3
150252A1
BEARING,140 mm ID x 300 mm OD x 102 mm
- roller
1шт.
4
158857A1
RETAINER
- seal
1шт.
5
150267A1
OIL SEAL
SEAL - oil
1шт.
6
863-12035
HEX SOC SCREW,M12 x 35mm, Cl 12.9
BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9
16шт.
7
150382A1
SHAFT
- drive
1шт.
8
150313A1
SPACER
- bearing
1шт.
9
150333A1
SPACER
- bearing
1шт.
10
150335A1
ROLLER BEARING,130 mm ID x 230 mm OD x 64 mm
- roller
1шт.
11
150215A1
SEALING RING
RING - seal
1шт.
12
150411A1
PINION
GEAR - ring
1шт.
13
150228A1
PIN
- special, alignment
4шт.
14
150421A1
BEARING CARRIER
CARRIER - planetary, first stage
1шт.
15
150209A1
WASHER, THRUST
WASHER - thrust
4шт.
16
150431A1
SUN GEAR
GEAR - planetary, first stage
4шт.
17
150209A1
WASHER, THRUST
WASHER - thrust
4шт.
18
150199A1
GEAR SHAFT
SHAFT - gear
4шт.
19
738-1825
LOCK PIN,M8 x 25, Slotted
4шт.
20
150308A1
PLATE, THRUST
WASHER - thrust
1шт.
21
150424A1
SUN GEAR
GEAR - sun, first stage
1шт.
22
150416A1
HOUSING
CARRIER - planetary, second stage
1шт.
23
150300A1
WASHER, THRUST
WASHER - thrust
3шт.
24
150428A1
SUN GEAR
GEAR - planetary, second stage
3шт.
25
150244A1
BEARING, NEEDLE
BEARING - needle
3шт.
26
150300A1
WASHER, THRUST
WASHER - thrust
3шт.
27
150197A1
GEAR SHAFT
SHAFT - gear
3шт.
28
738-1825
LOCK PIN,M8 x 25, Slotted
3шт.
29
150308A1
PLATE, THRUST
WASHER - thrust
1шт.
30
150423A1
SUN GEAR
GEAR - sun, second stage
1шт.
31
150378A1
COVER
- reduction gear assembly
1шт.
32
150829A1
PLUG
- port
1шт.
33
150435A1
COLUMN JACKET
TUBE - dipstick
1шт.
34
150438A1
GAUGE
DIPSTICK - oil lube
1шт.
35
150237A1
BOLT,Hex Skt
BOLT - hex socket
18шт.
36
800-1155
RETAINER,55mm ID
RING - external retaining, No. 55
1шт.
Выбрано товаров: 37
