Запчасти Case 9060B (8-156) - SWING MOTOR ASSEMBLY, ANTI-SHOCK VALVE (08) - HYDRAULICS

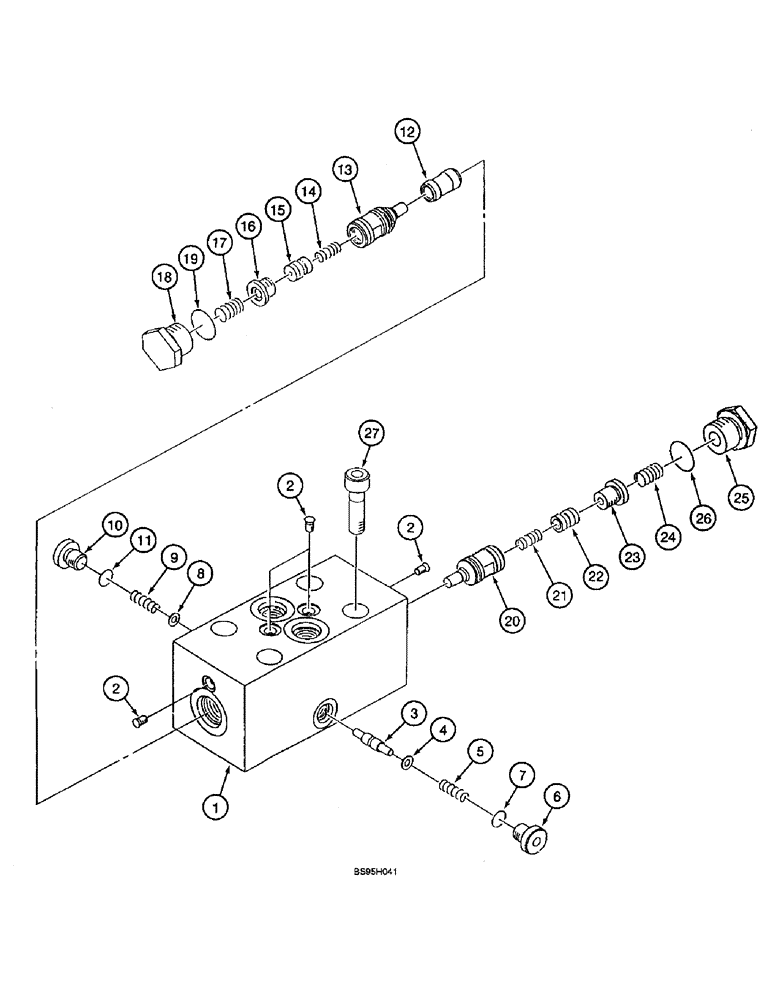

Схема запчастей Case 9060B - (8-156) - SWING MOTOR ASSEMBLY, ANTI-SHOCK VALVE (08) - HYDRAULICS
9
2
3
14
24
6
2
15
8
10
2
20
4
11
25
19
7
13
1
27
26
21
5
18
12
17
23
22
16

Артикул

Название

Примечание

Количество

163981A1

VALVE

ASSEMBLY - anti-shock, Includes: Ref. 1 - 27

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - anti-shock valve, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - anti-shock valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - port

4шт.

3

164022A1

SPOOL

- valve

1шт.

4

164023A1

SEAT

- spring

1шт.

5

164070A1

SPRING

- compression

1шт.

6

164024A1

PLUG

- socket head

1шт.

7

154455A1

O-RING

- plug

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of anti-shock valve seal kit P/N 164052A1

1шт.

8

164023A1

SEAT

- spring

1шт.

9

164070A1

SPRING

- compression

1шт.

10

164024A1

PLUG

- socket head

1шт.

11

154455A1

O-RING

- plug

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of anti-shock valve seal kit P/N 164052A1

1шт.

12

164020A1

SLEEVE

- valve

1шт.

163982A1

SPOOL

VALVE ASSEMBLY - check, Includes: Ref. 13 - 16

1шт.

13

164017A1

VALVE, CHECK

SLEEVE - valve

1шт.

14

164069A1

SPRING

- compression

1шт.

15

164018A1

VALVE

PISTON - valve

1шт.

16

164019A1

PLUG

- check valve

1шт.

17

164104A1

SPRING

- compression

1шт.

18

164021A1

PLUG

- port

1шт.

19

154475A1

O-RING

- plug

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of anti-shock valve seal kit P/N 164052A1

1шт.

163982A1

SPOOL

VALVE ASSEMBLY - check, Includes: Ref. 20 - 23

1шт.

20

164017A1

VALVE, CHECK

SLEEVE - valve

1шт.

21

164069A1

SPRING

- compression

1шт.

22

164018A1

VALVE

PISTON - valve

1шт.

23

164019A1

PLUG

- check valve

1шт.

24

164104A1

SPRING

- compression

1шт.

25

164021A1

PLUG

- port

1шт.

26

154475A1

O-RING

- plug

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of anti-shock valve seal kit P/N 164052A1

1шт.

27

164073A1

BOLT,Hex Skt

BOLT - special

4шт.

164049A1

SET OF PARTS

KIT - swing motor seal, Includes: Refs. 7, 11, 19 and 26, as well as references marked in Figures 8-152 and 8-154

1шт.

164052A1

SET OF PARTS

KIT - anti-shock valve seal, Includes: Refs. 7, 11, 19 and 26

1шт.

Выбрано товаров: 41
