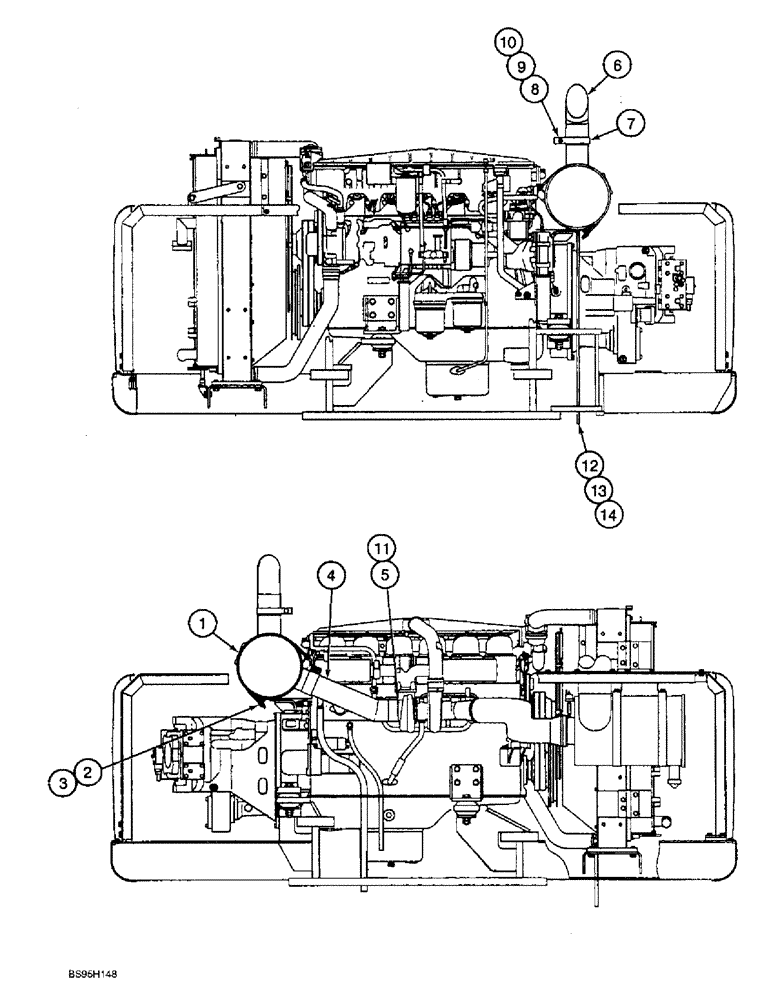

Запчасти Case 9060B (2-10) - MUFFLER AND MOUNTING PARTS, USED ON 6D22-TC ENGINE (02) - ENGINE

1

170443A1

MUFFLER

- engine

1шт.

2

163403A1

U-BOLT

BOLT - U-type, muffler mounting

2шт.

3

134763A1

NUT

- hex flange, 10 mm

8шт.

4

163398A1

EXHAUST SYSTEM PIPE

PIPE - exhaust, Serial Range: turbocharger-muffler

1шт.

5

163401A1

SEALING RING

SEAL - ring-type, exhaust pipe

1шт.

6

170266A1

PIPE

- exhaust, tail pipe

1шт.

7

163405A1

CLAMP

- special, exhaust pipe

1шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Clamp Hex, M12 x 40, 10.9, Full Thd

1шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

10

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

11

163402A1

CLAMP

- special, exhaust pipe at turbo

1шт.

12

157480A1

TUBE

- special, muffler drain

1шт.

13

170299A1

CLAMP

- adjustable, wire-type, muffler drain tube

1шт.

14

151252A1

NIPPLE, LUBE

ADAPTER - straight, muffler drain tube

1шт.
