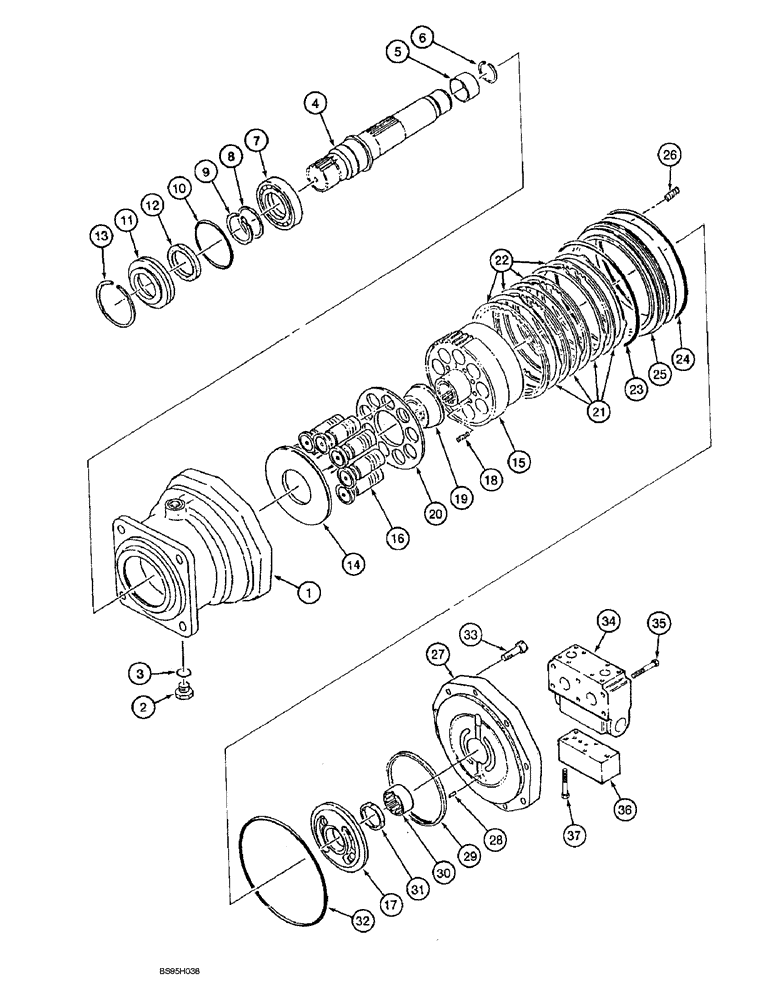

Запчасти Case 9060B (8-152) - SWING MOTOR ASSEMBLY, PISTON MOTOR ASSEMBLY (08) - HYDRAULICS

163935A1

HYDRAULIC MOTOR

MOTOR ASSEMBLY - swing, Includes: Ref. 1 - 37

1шт.

164002A1

MOTOR

ASSEMBLY - piston, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - swing motor

1шт.

2

161771A1

PLUG

- port

1шт.

3

154487A1

O-RING

- plug

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of piston motor seal kit P/N 164050A1

1шт.

4

155363A1

SHAFT

- drive

1шт.

5

156136A1

RING RACE

RACE - bearing, inner

1шт.

6

155624A1

RING, SNAP

RING - retaining

1шт.

7

156139A1

BEARING, ROLLER,60 mm ID x 110 mm OD x 22 mm

BEARING - roller

1шт.

8

156193A1

WASHER

SPACER - bearing

1шт.

9

155625A1

RING, SNAP

RING - retaining

1шт.

10

154733A1

O-RING

- seal retainer

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of piston motor seal kit P/N 164050A1

1шт.

11

156315A1

OIL SEAL

RETAINER - seal

1шт.

12

155108A1

OIL SEAL

SEAL - oil

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of piston motor seal kit P/N 164050A1

1шт.

13

155626A1

RING, SNAP

RING - retaining

1шт.

14

155385A1

PLATE, THRUST

PLATE - swash

1шт.

163983A1

HYD PUMP REPAIR KIT

BLOCK ASSEMBLY - piston motor cylinder, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BLOCK - cylinder, piston motor

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

17

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

18

164103A1

SPRING

- compression

9шт.

164025A1

PLATE

PRELOAD ASSEMBLY - piston, Includes: Ref. 19 & 20

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - spherical

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - piston retaining

1шт.

21

156313A1

BRAKE DISC

PLATE - friction, stationary

4шт.

22

164008A1

PLATE

- friction, rotating

4шт.

23

163953A1

O-RING

- piston

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of piston motor seal kit P/N 164050A1

1шт.

24

163954A1

O-RING

- piston

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of piston motor seal kit P/N 164050A1

1шт.

25

164007A1

PISTON

- brake

1шт.

26

156065A1

SPRING

- compression

24шт.

27

157081A1

COVER

- piston motor

1шт.

28

155623A1

COTTER PIN

PIN - dowel

1шт.

29

157474A1

COLLAR

- valve plate

1шт.

30

156137A1

BEARING, NEEDLE,Needle, 47.63mm ID x 61.91mm OD x 31.75mm W

BEARING - needle

1шт.

31

157473A1

COLLAR

SPACER - needle bearing

1шт.

32

163954A1

O-RING

- cover

1шт.

Part of swing motor seal kit P/N 164049A1

1шт.

Part of piston motor seal kit P/N 164050A1

1шт.

33

863-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

SCREW - hex socket, 16 - 2.0 x 50 mm, class 12.9

9шт.

34

163978A1

VALVE

ASSEMBLY - motor control, parts list Figure 8-154

1шт.

35

861-12095

HEX SOC SCREW,M12 x 95mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 95 mm, class 12.9

6шт.

36

163981A1

VALVE

ASSEMBLY - anti-shock, parts list Figure 8-156

1шт.

37

164073A1

BOLT,Hex Skt

BOLT - special

4шт.

164049A1

SET OF PARTS

KIT - swing motor seal, Includes: Refs. 3, 10, 12, 23, 24 and 32, as well as references marked in Figures 8-154 and 8-156

1шт.

164050A1

SET OF PARTS

KIT - piston motor seal, Includes: Refs. 3, 10, 12, 23, 24 and 32

1шт.
