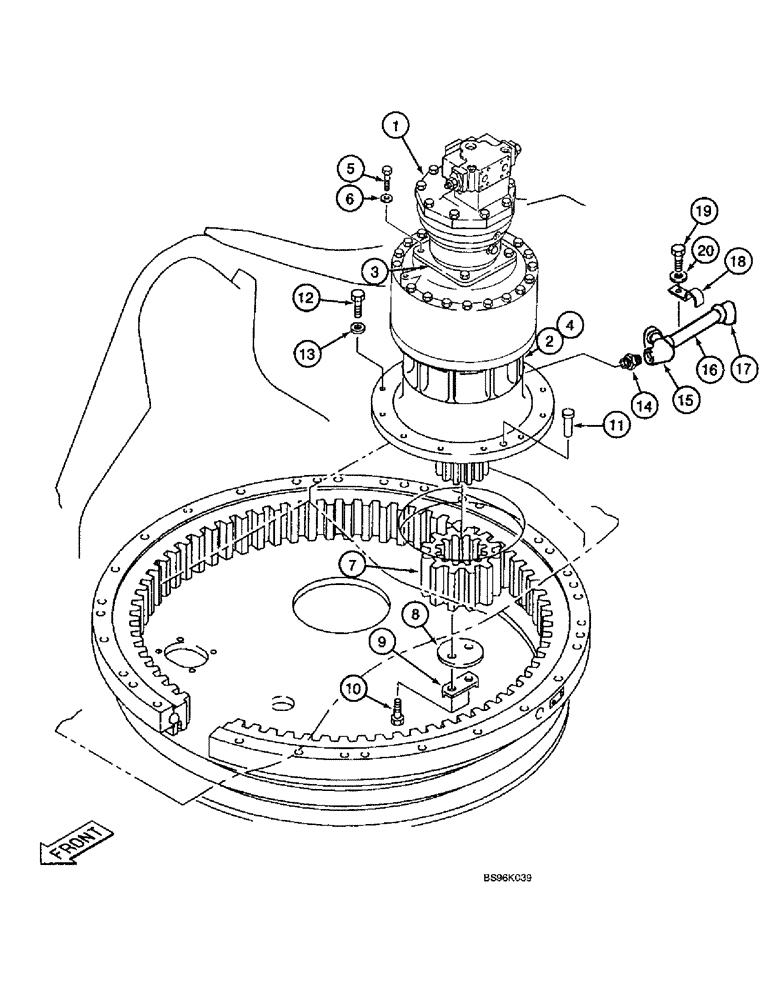

Запчасти Case 9060B (8-150) - SWING DRIVE ASSEMBLY AND MOUNTING (08) - HYDRAULICS

164158A1

MOTO-REDUCTION GEAR

DRIVE ASSEMBLY - swing, with reduction gear, Includes: Ref. 1 - 6

1шт.

1

163935A1

HYDRAULIC MOTOR

MOTOR ASSEMBLY - swing, parts list on Figures 8-152 - 8-156

1шт.

2

158856A1

REDUCER

GEAR ASSEMBLY - reduction, swing drive, parts list on Figure 8-158

1шт.

3

150380A1

O-RING

- motor assembly, (not shown)

1шт.

4

800-1155

RETAINER,55mm ID

RING - external retaining, No. 55, establishes preload between output shaft of motor assembly and first stage sun gear of reduction gear assembly (shown on Figure 8-158 ref 36)

1шт.

5

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

6

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

4шт.

7

150301A1

PINION

GEAR - drive

1шт.

8

116493A1

COVER

PLATE - end

1шт.

9

116494A1

RETAINER

- plate

1шт.

10

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 50 mm, class 10.9

2шт.

11

150317A1

HEADED PIN,24mm OD x 90mm L

PIN - headed, alignment

1шт.

12

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

12шт.

13

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

12шт.

14

150073A1

ADAPTER

- straight

1шт.

15

157504A1

BUSHING

- special

1шт.

16

170138A1

TUBE

- drain

1шт.

17

150999A1

PLUG

- hex, tube

1шт.

18

162546A1

COLLAR

CLAMP - tube

1шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

20

153081A1

WASHER

- flat, special

1шт.
