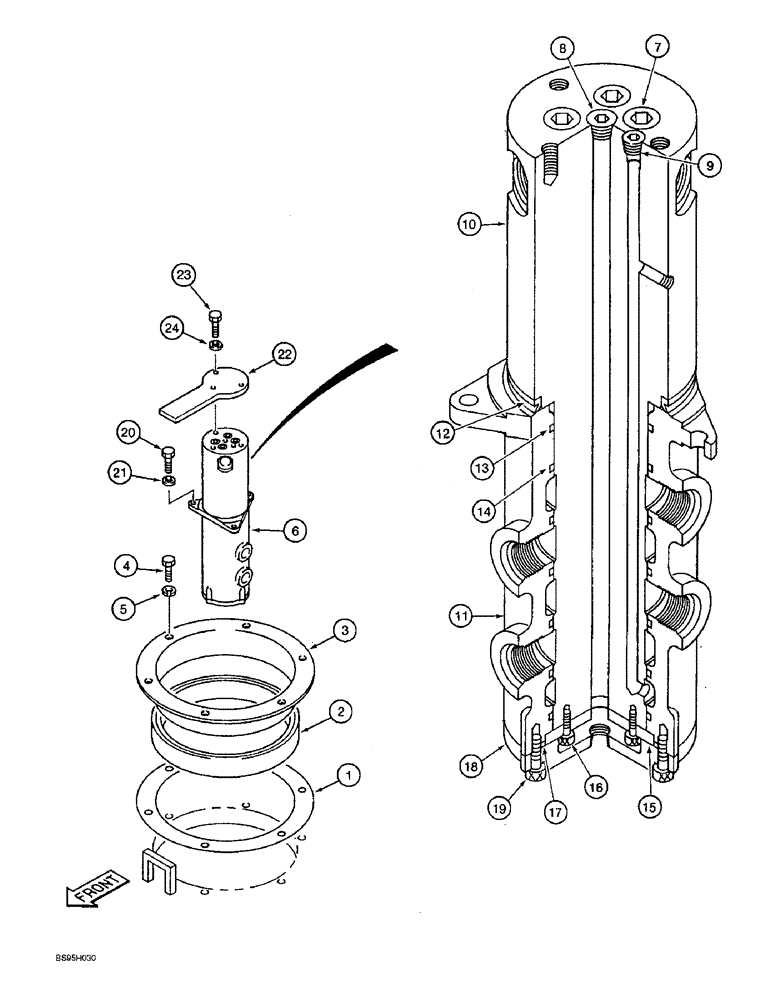

Запчасти Case 9060B (8-148) - HYDRAULIC SWIVEL (08) - HYDRAULICS

1

152596A1

RUBBER SEAL

GASKET - rubber

1шт.

2

151009A1

SEALING RING

RING - wiper

1шт.

3

152635A1

RETAINER

- wiper ring

1шт.

4

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

6

152096A1

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 7 - 19

1шт.

7

150829A1

PLUG

- port, top of swivel

4шт.

8

150825A1

PLUG

- port, top of swivel

1шт.

9

150824A1

PLUG

- port, top of swivel

1шт.

10

152088A1

HOUSING

SHAFT - swivel

1шт.

11

151535A1

ROTOR

- hydraulic swivel

1шт.

12

151542A1

SEALING RING

RING - swivel shaft, vee type

1шт.

13

KHA10120

O-RING

- rotor, Replaces 154712A1

1шт.

14

151545A1

PACKING RING

RING - sealing

6шт.

15

152097A1

PLATE, THRUST

PLATE - thrust

1шт.

16

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9

4шт.

17

154761A1

O-RING,119.4mm ID x 3.1mm Width

SEAL - swivel base, replaces 150911A1 O-ring

1шт.

18

151540A1

COVER

BASE - swivel

1шт.

19

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

3шт.

21

150811A1

WASHER

- flat, special, 12 mm

3шт.

22

170207A1

BAR

- anti-rotation

1шт.

23

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

24

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

3шт.
