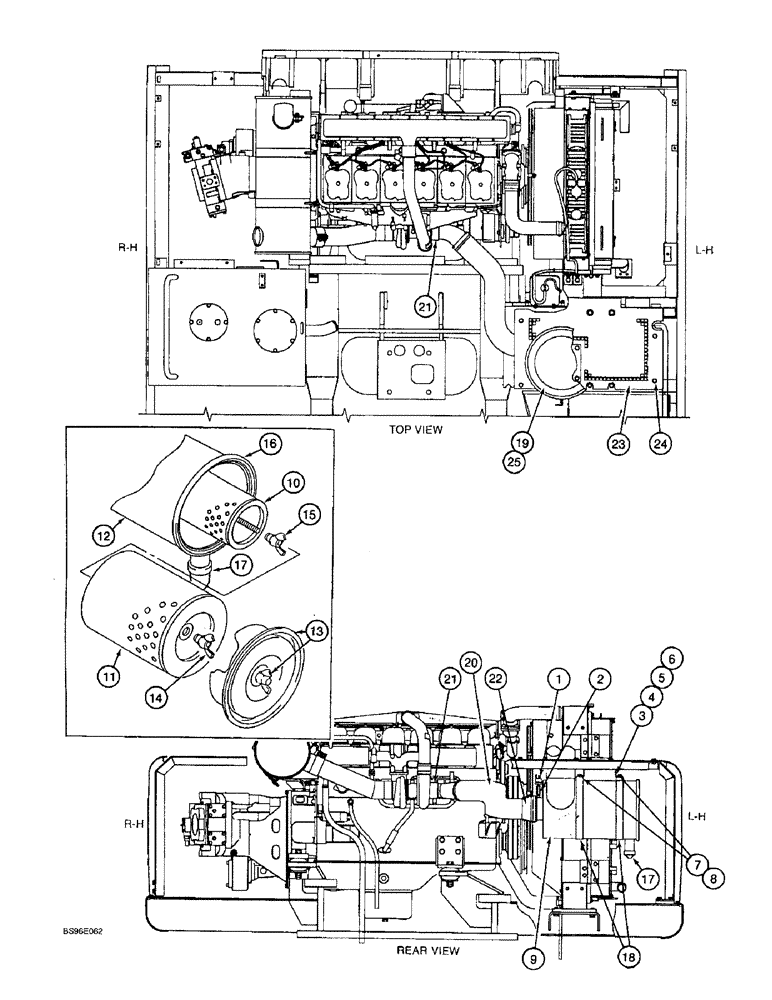

Запчасти Case 9060B (2-08) - AIR CLEANER SYSTEM, USED ON 6D22-TC ENGINE (02) - ENGINE

1

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

2

150116A1

SOCKET

ADAPTER - switch

1шт.

3

170271A1

BRACKET

- mounting, air cleaner clamps

1шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9, Bracket

4шт.

5

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

6

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9, Air cleaner clamps

4шт.

8

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

NSS

NOT SOLD SEPARAT

CLEANER ASSEMBLY - air, Includes: Ref. 9 - 17

1шт.

9

162965A1

CLEANER ASSY.

BODY ASSEMBLY - air cleaner

1шт.

10

151397A1

AIR FILTER

ELEMENT - inner, air cleaner

1шт.

11

150783A1

ELEMENT

- outer, air cleaner

1шт.

12

163725A1

CASE

BODY - air cleaner

1шт.

13

163726A1

COVER ASSY

COVER - air cleaner, includes captive wing nut

1шт.

Ref. #13 - wing nut (if needed) = 156676a1. 10/28/97

1шт.

14

156678A1

NUT

NUT - wing type, outer element, includes gasket

1шт.

15

156679A1

NUT

NUT - wing type, inner element, includes gasket

1шт.

16

157236A1

GASKET

- cover

1шт.

17

156680A1

VALVE

CUP - dust

1шт.

18

162964A1

MOUNTING CLIP

BRACKET - mounting, air cleaner

2шт.

19

150786A1

CAP

COVER - air inlet (rain cap)

1шт.

20

170257A1

INTAKE AIR HOSE,101.60 mm ID, 127.00 mm ID x 580.00 mm

- Turbo to air cleaner 101.60 mm ID, 127.00 mm ID x 580.00 mm

1шт.

21

170302A1

CLAMP

- 5 inch (12.7 mm) dia

1шт.

22

170303A1

CLAMP

- 6.5 inch (16.5 mm) dia

1шт.

23

170258A1

COVER

PLATE - cover, on upper structure

1шт.

24

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, cover plate

8шт.

25

170632A1

AIR INTAKE TUBE

TUBE - air inlet, located under air inlet cover, Ref. 19

1шт.
