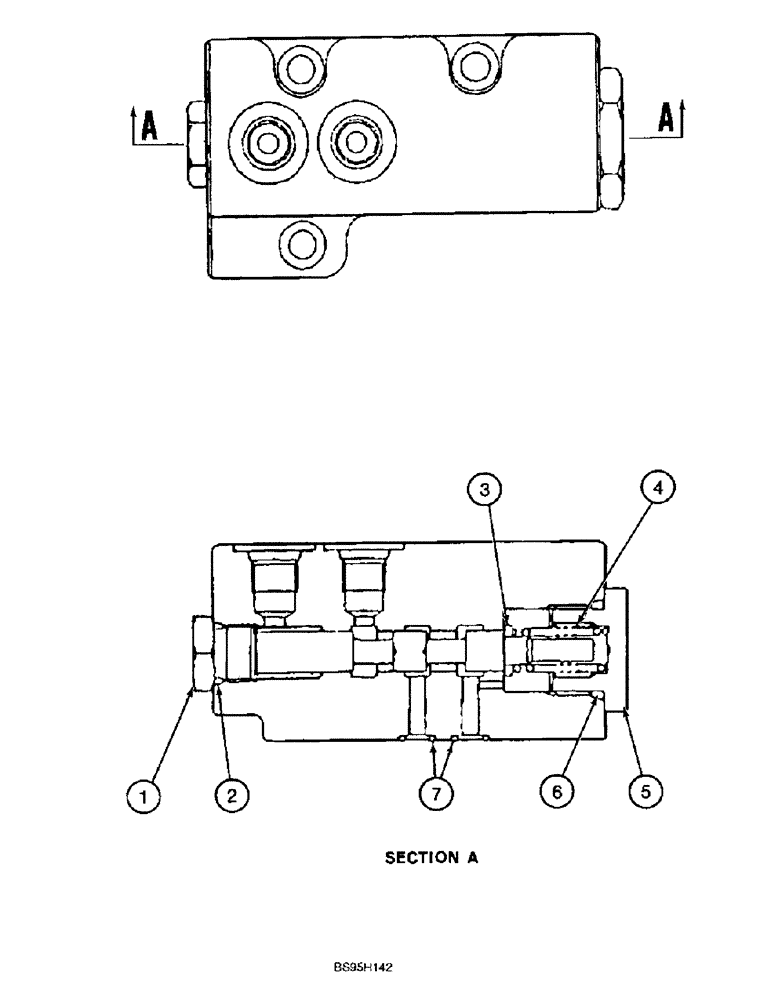

/ / / / / / / / (8-128) - CONTROL VALVE, PILOT VALVE
Запчасти Case 9060B (8-128) - CONTROL VALVE, PILOT VALVE (08) - HYDRAULICS
5
7
3
6
4
1
2
163975A1
VALVE
ASSEMBLY - pilot
1шт.
1
157348A1
PLUG
- port
1шт.
2
154475A1
O-RING
- plug
1шт.
3
164489A1
SPRING SEAT
SEAT - spring
1шт.
4
164499A1
SPRING
- compression
1шт.
5
164456A1
PLUG
- special
1шт.
6
154503A1
O-RING
- plug
1шт.
7
154455A1
O-RING
- passage
2шт.
