(8-126) - CONTROL VALVE, BASE COVER VALVE ASSEMBLY

Запчасти Case 9060B (8-126) - CONTROL VALVE, BASE COVER VALVE ASSEMBLY (08) - HYDRAULICS

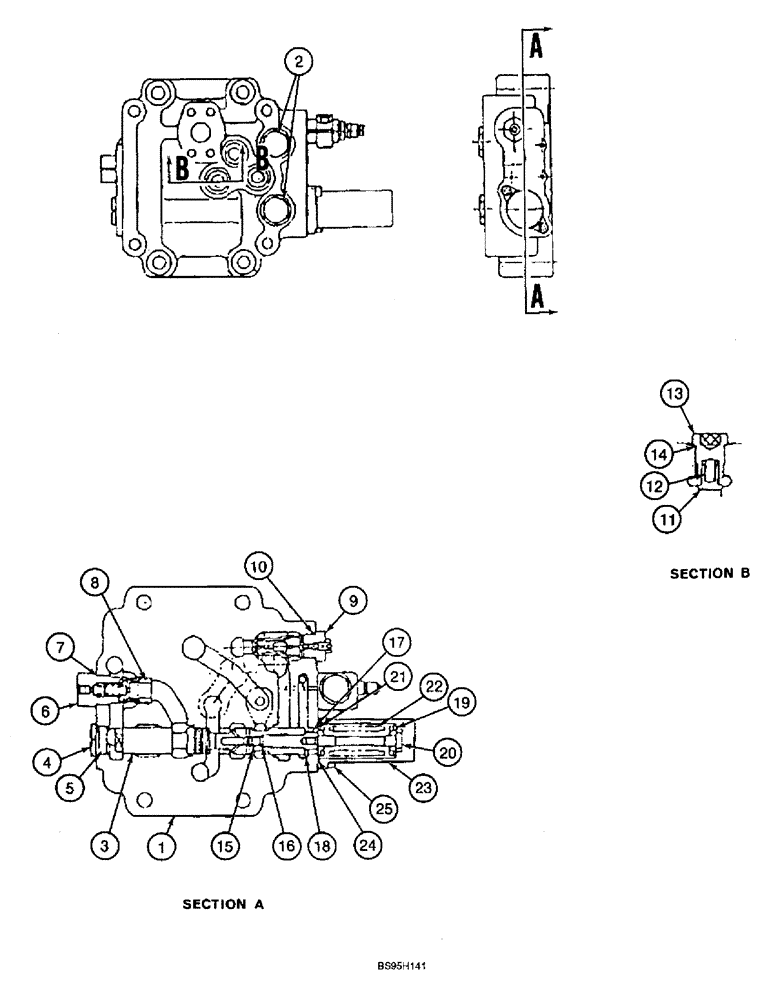

Схема запчастей Case 9060B - (8-126) - CONTROL VALVE, BASE COVER VALVE ASSEMBLY (08) - HYDRAULICS
25
4
17
11
24
2
7
18
1
10
8
20
22
23
14
3
12
13
5
19
9
15
16
6
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

163969A1

LARGE PLATE

VALVE ASSEMBLY - base cover, Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

155453A1

PLUG

- port

2шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

157334A1

PLUG

- port

1шт.

5

163949A1

O-RING

- plug

1шт.

6

157335A1

VALVE

- relief, Includes: Ref. 7 & 8

1шт.

7

163949A1

O-RING

- relief valve

1шт.

8

154528A1

O-RING

- relief valve

1шт.

9

164458A1

VALVE

ASSEMBLY - relief, Includes: Ref. 10

1шт.

10

155225A1

O-RING

- relief valve

1шт.

11

160189A1

WELL

PLUNGER - valve

3шт.

12

160243A1

SPRING

- compression

3шт.

13

155462A1

PLUG

- special

3шт.

14

155224A1

O-RING

- plug

3шт.

15

155905A1

VALVE

PLUNGER - valve

1шт.

16

156016A1

SPRING

- compression

1шт.

17

157337A1

PLUG

PLUNGER - valve

1шт.

18

155221A1

O-RING

SEAL - plunger

1шт.

19

157339A1

SPRING SEAT

SEAT - spring

1шт.

20

157338A1

CAP

RETAINER - spring seat

1шт.

21

157339A1

SPRING SEAT

SEAT - spring

1шт.

22

157340A1

SPRING

- compression

1шт.

23

157341A1

CAP

- valve

1шт.

24

164451A1

O-RING

- cap

1шт.

25

164500A1

BOLT

BOLT - special

2шт.
