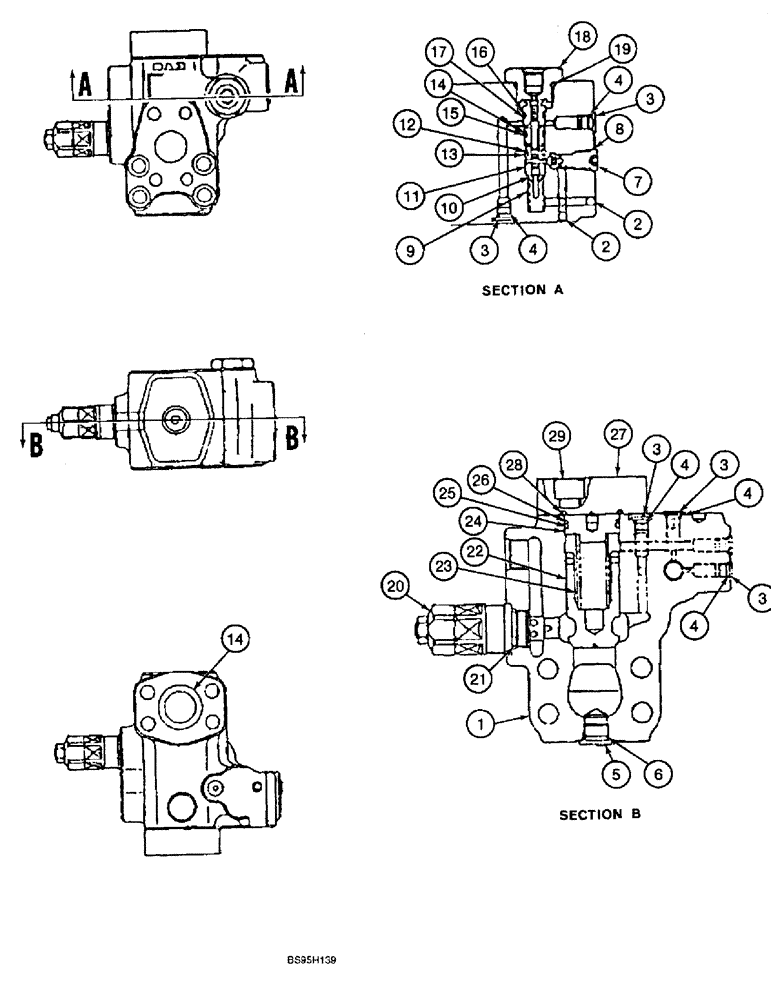

Запчасти Case 9060B (8-124) - CONTROL VALVE, ANTI-DRIFT VALVE (08) - HYDRAULICS

163974A1

VALVE

ASSEMBLY - anti-drift, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

BALL - steel

2шт.

3

163368A1

PLUG

- port, Includes: Ref. 4

5шт.

4

154455A1

O-RING

- plug

1шт.

5

163369A1

PLUG

- port, Includes: Ref. 6

1шт.

6

154475A1

O-RING

- plug

1шт.

7

164470A1

PLUG

- special, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

9

164498A1

SPRING

- compression

1шт.

10

164488A1

SPRING SEAT

SEAT - spring

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve, Includes: Ref. 12 - 17

1шт.

12

155086A1

O-RING

- spool

1шт.

13

154420A1

RING

- backup

1шт.

14

154466A1

O-RING

- spool

1шт.

15

153955A1

O-RING

RING - backup

1шт.

16

154470A1

O-RING

- spool

1шт.

17

153958A1

BACK-UP RING

RING - backup

1шт.

18

164469A1

PLUG

- port, Includes: Ref. 19

1шт.

19

154503A1

O-RING

- plug

1шт.

20

163379A1

VALVE

ASSEMBLY - relief, Includes: Ref. 21

1шт.

21

155223A1

O-RING

- valve

1шт.

22

164486A1

VALVE POPPET

PLUNGER - valve

1шт.

23

164497A1

SPRING

- compression

1шт.

24

164487A1

SPACER

SEAT - spring

1шт.

25

154542A1

O-RING

- spring seat

1шт.

26

154012A1

BACK-UP RING

RING - backup

1шт.

27

164503A1

FLANGE

COVER - valve assembly

1шт.

28

164450A1

O-RING

- passage

1шт.

29

164501A1

BOLT

BOLT - special

4шт.
