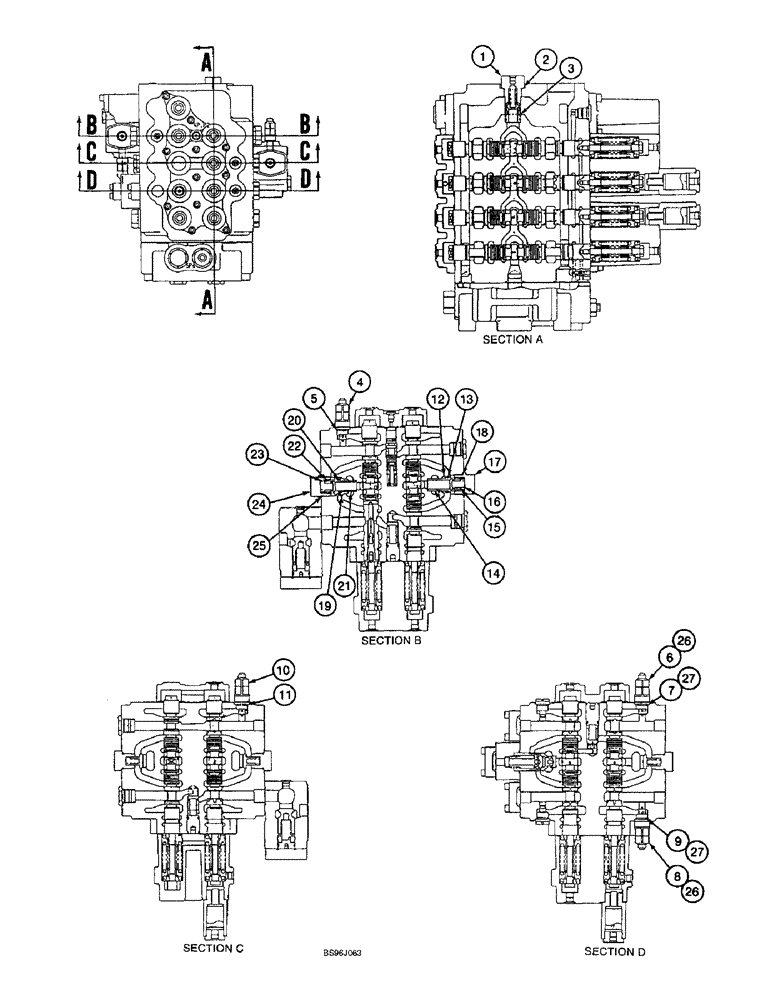

Запчасти Case 9060B (8-122) - CONTROL VALVE, WORKING CIRCUIT RELIEF VALVES (08) - HYDRAULICS

163643A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 25

1шт.

1

157335A1

VALVE

- relief, Includes: Ref. 2 & 3

1шт.

2

163949A1

O-RING

- relief valve

1шт.

3

154528A1

O-RING

- relief valve

1шт.

4

163379A1

VALVE

ASSEMBLY - relief, Includes: Ref. 5

1шт.

5

155223A1

O-RING

- relief valve

1шт.

6

163379A1

VALVE

ASSEMBLY - relief, Includes: Ref. 7

1шт.

7

155223A1

O-RING

- relief valve

1шт.

8

163379A1

VALVE

ASSEMBLY - relief, Includes: Ref. 9

1шт.

9

155223A1

O-RING

- relief valve

1шт.

10

163380A1

VALVE

ASSEMBLY - relief, Includes: Ref. 11

1шт.

11

155223A1

O-RING

- relief valve

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, Includes: Ref. 12 - 18

1шт.

12

157369A1

VALVE POPPET

POPPET - check

1шт.

13

157370A1

SPRING

- compression

1шт.

14

157354A1

SLEEVE

- valve

1шт.

15

157353A1

VALVE POPPET

PISTON - valve

1шт.

16

157351A1

SPRING

- compression

1шт.

17

157352A1

PLUG

- special

1шт.

18

154583A1

O-RING

- plug

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, Includes: Ref. 19 - 25

1шт.

19

163986A1

VALVE POPPET

PLUNGER - valve

1шт.

20

164062A1

SPRING

- compression

1шт.

21

157364A1

SLEEVE

- valve

1шт.

22

157353A1

VALVE POPPET

PISTON - valve

1шт.

23

157351A1

SPRING

- compression

1шт.

24

157352A1

PLUG

- special

1шт.

25

154583A1

O-RING

- plug

1шт.

26

157249A1

VALVE PRESSURE RELIE

VALVE - port relief, models with auxiliary hydraulics, Includes: Ref. 27

2шт.

27

155223A1

O-RING

- relief valve

1шт.
