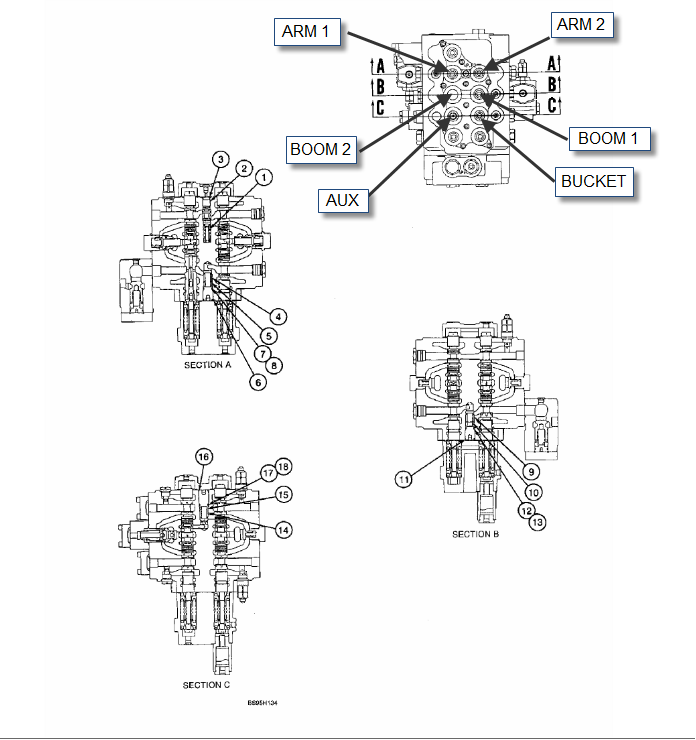

Запчасти Case 9060B (8-118) - CONTROL VALVE, MISCELLANEOUS VALVES BENEATH MAIN VALVE COVERS (08) - HYDRAULICS

163643A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 18

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, Includes: Ref. 1 - 3

1шт.

1

164065A1

SPRING

- compression

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

154507A1

O-RING

- spool

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, Includes: Ref. 4 - 8

1шт.

4

157355A1

WELL

PLUNGER - valve

1шт.

5

157351A1

SPRING

- compression

1шт.

6

157356A1

PLUG

- port

1шт.

7

155095A1

O-RING

- plug

1шт.

8

154426A1

BACK-UP RING

RING - backup

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, Includes: Ref. 9 - 13

1шт.

9

157355A1

WELL

PLUNGER - valve

1шт.

10

157351A1

SPRING

- compression

1шт.

11

157356A1

PLUG

- port

1шт.

12

155095A1

O-RING

- plug

1шт.

13

154426A1

BACK-UP RING

RING - backup

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, Includes: Ref. 14 - 18

1шт.

14

157358A1

VALVE POPPET

PLUNGER - valve

1шт.

15

157351A1

SPRING

- compression

1шт.

16

157357A1

PLUG

- port

1шт.

17

155095A1

O-RING

- plug

1шт.

18

154426A1

BACK-UP RING

RING - backup

1шт.
