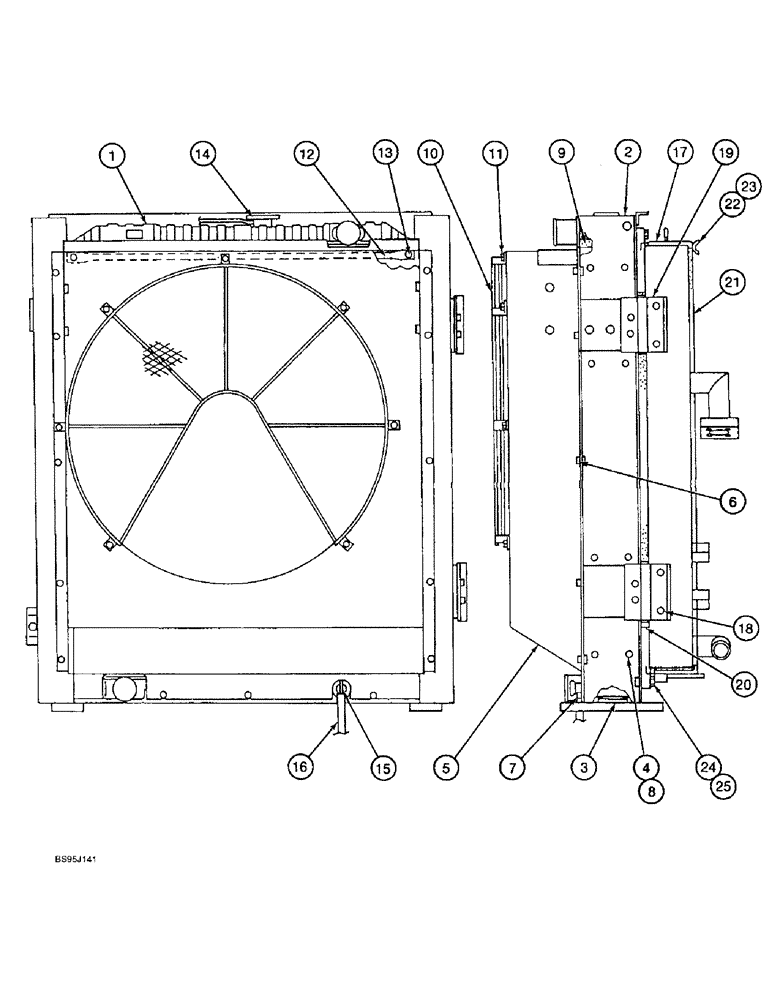

Запчасти Case 9060B (2-06) - RADIATOR ASSEMBLY, USED WITH 6D22-TC ENGINE (02) - ENGINE

163745A1

RADIATOR

ASSEMBLY - includes hydraulic oil cooler, Includes: Ref. 1 - 25

1шт.

REF

INSTRUCTION

RADIATOR SUBASSEMBLY - water and hydraulic oil cooling, Includes: Ref. 1 - 16

1шт.

1

164558A1

RADIATOR

CORE - radiator

1шт.

2

164562A1

FRAME

- radiator

1шт.

3

162705A1

SEAL

- cushion

1шт.

4

164554A1

FLANGE BOLT

BOLT - with captive washer

16шт.

5

164571A1

DEFLECTOR

SHROUD - radiator

1шт.

6

164554A1

FLANGE BOLT

BOLT - with captive washer

10шт.

7

164566A1

FLANGE BOLT

BOLT - with captive washer

3шт.

8

156423A1

LINING

LINER - radiator

4шт.

9

157238A1

PACKING

PAD - insulation

2шт.

10

162758A1

DEFLECTOR

GUARD - fan

1шт.

11

164554A1

FLANGE BOLT

BOLT - with captive washer

7шт.

12

162756A1

STEM

ROD - radiator brace

1шт.

13

164554A1

FLANGE BOLT

BOLT - with captive washer

2шт.

14

156685A1

CAP

- radiator

1шт.

15

156686A1

BREATHER ASSY.

ADAPTER - coolant drain hose

1шт.

16

156687A1

HOSE

- 300 mm (11-13/16 inch) long

1шт.

17

164563A1

COOLER, OIL

COOLER - hydraulic oil, component parts are not serviced separately

1шт.

18

164567A1

FLANGE BOLT

BOLT - flange, hinge mounting for cooler

8шт.

19

156797A1

HINGE

- cooler mounting

2шт.

20

164555A1

PACKING

PAD - insulation

2шт.

21

164556A1

SCREEN

- radiator, special

1шт.

22

156606A1

BOLT,Wing, M6

BOLT - special, Repalces 156690A1

2шт.

23

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

2шт.

24

164568A1

FLANGE BOLT

BOLT - special

4шт.

25

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.
