(8-116) - CONTROL VALVE, MAIN PILOT VALVES, FOUR-SPOOL VALVE BANK

Запчасти Case 9060B (8-116) - CONTROL VALVE, MAIN PILOT VALVES, FOUR-SPOOL VALVE BANK (08) - HYDRAULICS

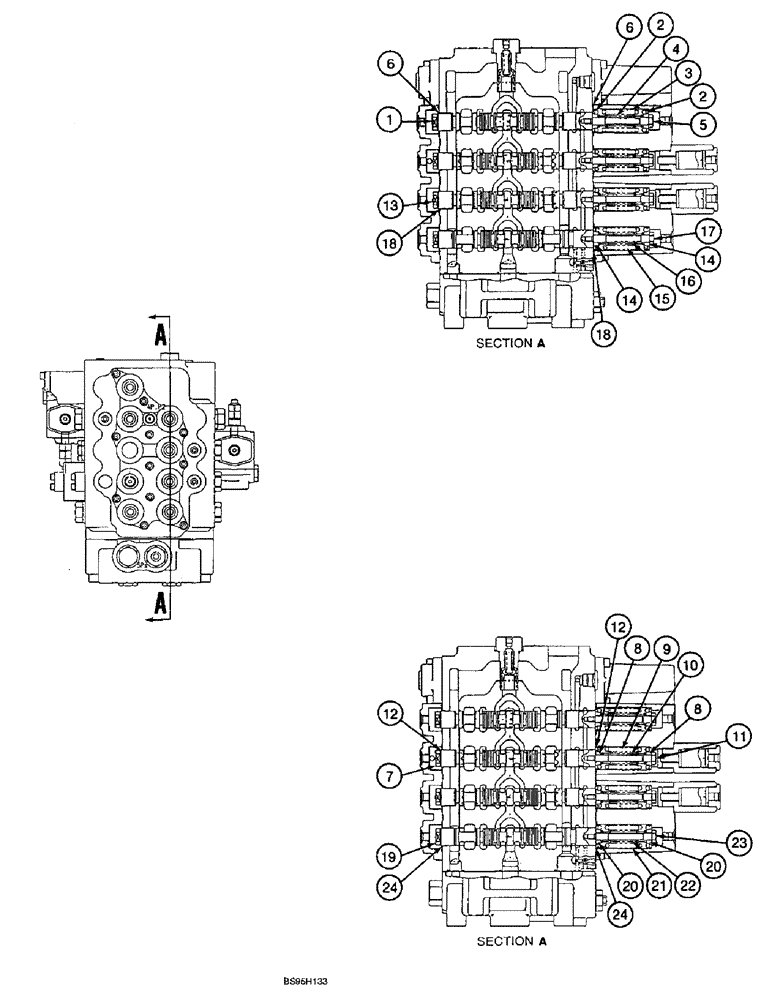

Схема запчастей Case 9060B - (8-116) - CONTROL VALVE, MAIN PILOT VALVES, FOUR-SPOOL VALVE BANK (08) - HYDRAULICS
1
4
5
3
8
6
11
12
17
19
20
7
8
20
16
22
14
6
2
18
13
24
15
9
21
18
12
24
14
2
10
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

163643A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

ARM 2, SPOOL - valve

1шт.

2

157339A1

SPRING SEAT

SEAT - spring

2шт.

3

157344A1

SPRING

- compression

1шт.

4

157345A1

SPRING

- compression

1шт.

5

157338A1

CAP

RETAINER - spring seat

1шт.

6

154623A1

O-RING

- spool

2шт.

7

NSS

NOT SOLD SEPARAT

BOOM 1, SPOOL - valve

1шт.

8

157339A1

SPRING SEAT

SEAT - spring

2шт.

9

157344A1

SPRING

- compression

1шт.

10

157345A1

SPRING

- compression

1шт.

11

157338A1

CAP

RETAINER - spring seat

1шт.

12

154623A1

O-RING

- spool

2шт.

13

NSS

NOT SOLD SEPARAT

BUCKET, SPOOL - valve

1шт.

14

157339A1

SPRING SEAT

SEAT - spring

2шт.

15

157344A1

SPRING

- compression

1шт.

16

157345A1

SPRING

- compression

1шт.

17

157338A1

CAP

RETAINER - spring seat

1шт.

18

154623A1

O-RING

- spool

2шт.

19

NSS

NOT SOLD SEPARAT

TRAVEL FORWARD, SPOOL - valve

1шт.

20

157339A1

SPRING SEAT

SEAT - spring

2шт.

21

157344A1

SPRING

- compression

1шт.

22

157345A1

SPRING

- compression

1шт.

23

157338A1

CAP

RETAINER - spring seat

1шт.

24

154623A1

O-RING

- spool

2шт.
