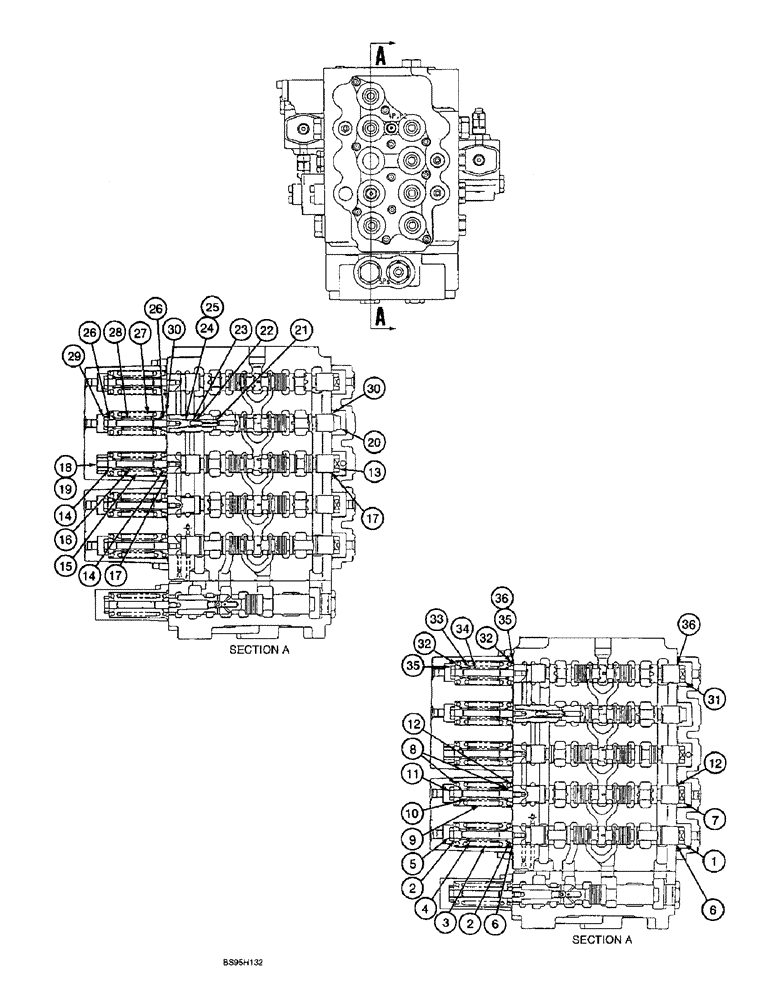

Запчасти Case 9060B (8-114) - CONTROL VALVE, MAIN PILOT VALVES, FIVE-SPOOL VALVE BANK (08) - HYDRAULICS

163643A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

TRAVEL REVERSE, SPOOL - valve

1шт.

2

157339A1

SPRING SEAT

SEAT - spring

2шт.

3

157344A1

SPRING

- compression

1шт.

4

157345A1

SPRING

- compression

1шт.

5

157338A1

CAP

RETAINER - spring seat

1шт.

6

154623A1

O-RING

- spool

2шт.

7

NSS

NOT SOLD SEPARAT

AUX, SPOOL - valve

1шт.

8

157339A1

SPRING SEAT

SEAT - spring

2шт.

9

157344A1

SPRING

- compression

1шт.

10

157345A1

SPRING

- compression

1шт.

11

157338A1

CAP

RETAINER - spring seat

1шт.

12

154623A1

O-RING

- spool

2шт.

13

NSS

NOT SOLD SEPARAT

BOOM 2, SPOOL - valve

1шт.

14

157339A1

SPRING SEAT

SEAT - spring

2шт.

15

157344A1

SPRING

- compression

1шт.

16

157345A1

SPRING

- compression

1шт.

17

154623A1

O-RING

- spool

2шт.

18

164001A1

SPOOL

SPACER - spool, Includes: Ref. 19

1шт.

19

155223A1

O-RING

- spool spacer

1шт.

20

NSS

NOT SOLD SEPARAT

ARM 1, SPOOL - valve

1шт.

21

160183A1

WELL

SPOOL - valve

1шт.

22

160589A1

SPRING

- compression

1шт.

23

163997A1

PLUG

- special

1шт.

24

155087A1

O-RING

- plug

1шт.

25

154420A1

RING

- backup

1шт.

26

157339A1

SPRING SEAT

SEAT - spring

2шт.

27

157344A1

SPRING

- compression

1шт.

28

157345A1

SPRING

- compression

1шт.

29

157338A1

CAP

RETAINER - spring seat

1шт.

30

154623A1

O-RING

- spool

2шт.

31

NSS

NOT SOLD SEPARAT

SWING, SPOOL - valve

1шт.

32

157339A1

SPRING SEAT

SEAT - spring

2шт.

33

157344A1

SPRING

- compression

1шт.

34

157345A1

SPRING

- compression

1шт.

35

157338A1

CAP

RETAINER - spring seat

1шт.

36

154623A1

O-RING

- spool

2шт.
