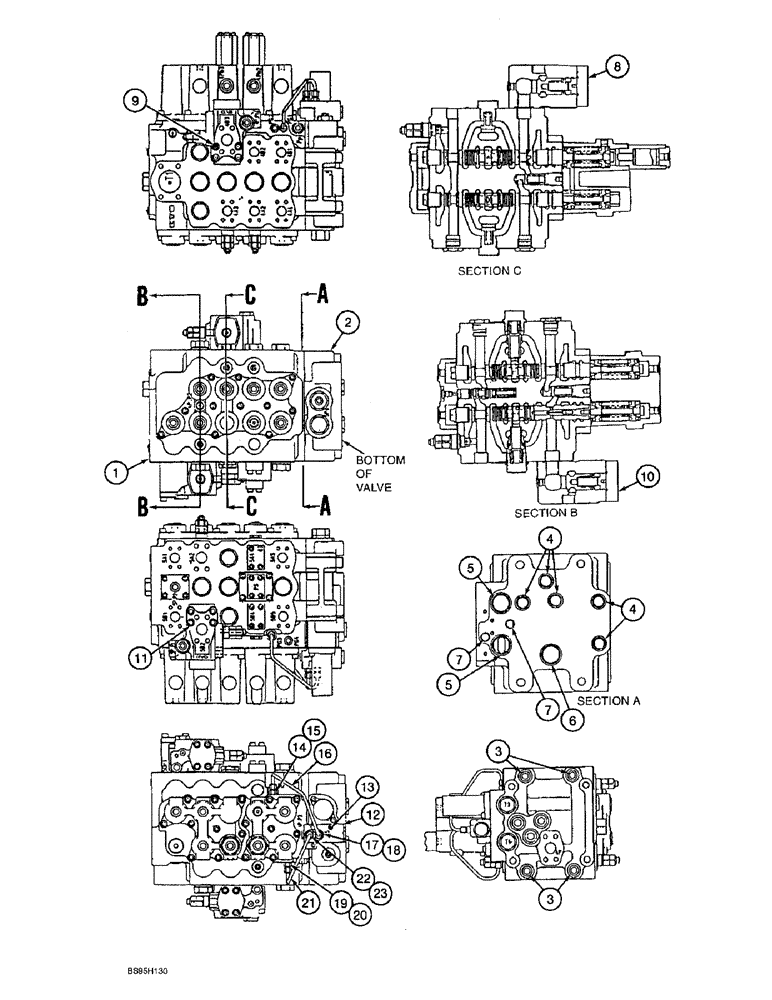

Запчасти Case 9060B (8-110) - CONTROL VALVE, HOUSINGS, MAJOR SUBASSEMBLIES, AND RELATED COMPONENTS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
163643A1
VALVE
ASSEMBLY - control, Includes: Ref. 1 - 23
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - valve
1шт.
2
163969A1
LARGE PLATE
VALVE ASSEMBLY - base cover, parts list Figure 8-126
1шт.
3
157332A1
BOLT
BOLT - hex socket
4шт.
4
154528A1
O-RING
- passage
5шт.
5
154588A1
O-RING
- passage
2шт.
6
154559A1
O-RING
- passage
1шт.
7
155172A1
O-RING
- passage
2шт.
8
163974A1
VALVE
ASSEMBLY - anti-drift, parts list Figure 8-124
1шт.
9
164076A1
BOLT,Hex Skt
BOLT - special
4шт.
10
163974A1
VALVE
ASSEMBLY - anti-drift, parts list Figure 8-124
1шт.
11
164076A1
BOLT,Hex Skt
BOLT - special
4шт.
12
163975A1
VALVE
ASSEMBLY - pilot, parts list Figure 8-128
1шт.
13
164078A1
BOLT,Hex Skt
BOLT - special
3шт.
14
164090A1
JOINT
FITTING - tube
1шт.
15
154467A1
O-RING,10.8mm ID x 2.4mm Width
- fitting (not shown)
1шт.
16
163995A1
PIPE
TUBE - transfer
1шт.
17
164090A1
JOINT
FITTING - tube
1шт.
18
154467A1
O-RING,10.8mm ID x 2.4mm Width
- fitting (not shown)
1шт.
19
164090A1
JOINT
FITTING - tube
1шт.
20
154467A1
O-RING,10.8mm ID x 2.4mm Width
- fitting (not shown)
1шт.
21
163996A1
PIPE
TUBE - transfer
1шт.
22
164090A1
JOINT
FITTING - tube
1шт.
23
154467A1
O-RING,10.8mm ID x 2.4mm Width
- fitting (not shown)
1шт.
Выбрано товаров: 24
