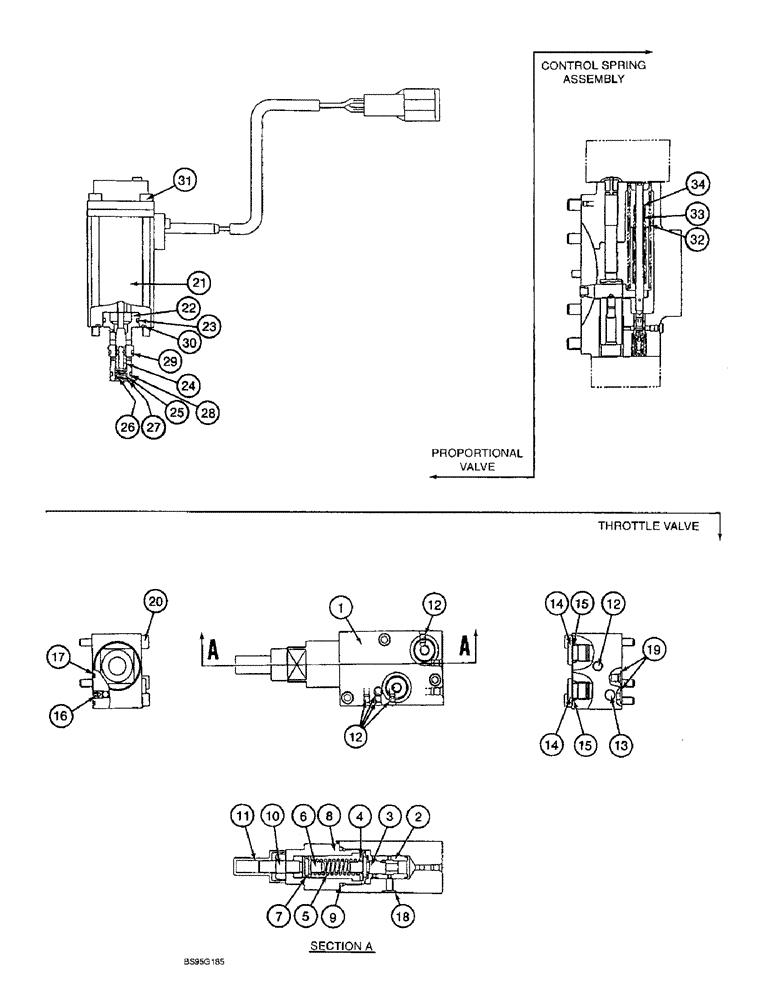

Запчасти Case 9060B (8-098) - HYDRAULIC PUMP - THROTTLE VALVE, PROPORTIONAL VALVE, & CONTROL SPRING ASSEMBLY (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - throttle, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - throttle valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - valve adjusting

1шт.

7

155189A1

O-RING

- screw

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve spring

1шт.

9

154508A1

O-RING

- body

1шт.

10

156202A1

LOCK NUT

- adjustment locking

1шт.

11

156362A1

CAP

- relief, valve adjustment

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG - port

5шт.

13

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG - orifice

1шт.

17

154494A1

O-RING

- passage

1шт.

18

154455A1

O-RING

- passage

1шт.

19

154454A1

O-RING

- passage

2шт.

20

861-6050

HEX SOC SCREW,M6 x 50mm, Cl 12.9

- hex socket, 6 - 1.0 x 50 mm, class 12.9

3шт.

164539A1

VALVE

ASSEMBLY - proportional, Includes: Ref. 21 - 31

1шт.

21

NSS

NOT SOLD SEPARAT

SOLENOID - proportional valve

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve, proportional valve

1шт.

23

155187A1

O-RING

- body, proportional valve

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - valve, proportional valve

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - compression, proportional valve

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - flat, proportional valve

1шт.

27

NSS

NOT SOLD SEPARAT

RING - retaining, proportional valve

1шт.

28

155202A1

O-RING

- body, proportional valve

1шт.

29

155203A1

O-RING

- body, proportional valve

1шт.

30

155188A1

O-RING

- passage, proportional valve

1шт.

31

156203A1

BOLT,Hex Skt

BOLT - hex socket, proportional valve

4шт.

163875A1

SPRING

ASSEMBLY - control, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - compression, control assembly

2шт.

33

NSS

NOT SOLD SEPARAT

SPRING - compression, control assembly

2шт.

34

NSS

NOT SOLD SEPARAT

SHIM - control spring assembly

4шт.
