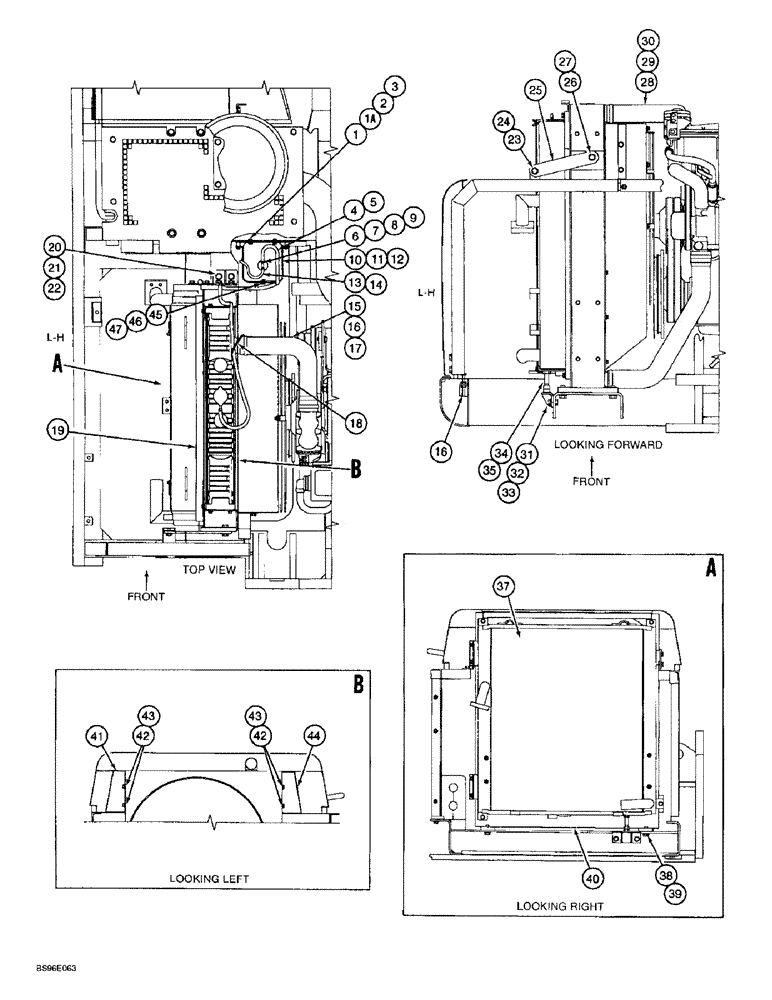

Запчасти Case 9060B (2-04) - RADIATOR MOUNTING AND COOLANT OVERFLOW RESERVOIR, USED ON 6D22-TC ENGINE (02) - ENGINE

1

150472A1

FLANGE NUT

- hex flange, special, 8 mm - 1.25

4шт.

1a

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

4

170306A1

HOSE

- 1400 mm (55-1/8 inch) long

1шт.

5

170069A1

CLAMP

- overflow hose

2шт.

6

160639A1

RESERVOIR, COOLANT E

RESERVOIR ASSEMBLY - coolant overflow, Includes: Ref. 7 - 9

1шт.

7

161740A1

SWITCH

- sender, coolant level

1шт.

8

161847A1

RESERVOIR, COOLANT E

RESERVOIR - coolant overflow

1шт.

9

161848A1

PLUG

CAP - reservoir, removable

1шт.

10

170269A1

HOLDER

BRACKET - special

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

12

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

13

170306A1

HOSE

- 1400 mm (55-1/8 inch) long

1шт.

14

170069A1

CLAMP

- hose

1шт.

15

163744A1

RADIATOR HOSE

Lower

1шт.

16

170304A1

CLAMP

- special, 2-3/4 inch (7 mm) max dia

1шт.

17

152796A1

COLLAR

CLAMP - adjustable, 3-1/4 (8.25 mm) max dia.

1шт.

18

170308A1

BAND

STRAP - tie

1шт.

19

170270A1

INSULATOR

INSULATION - acoustic

1шт.

20

162518A1

STAY

BRACKET - special

1шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

22

150811A1

WASHER

- flat, special, 12 mm

4шт.

23

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

24

150811A1

WASHER

- flat, special, 12 mm

1шт.

25

151062A1

STAY

BRACKET - support, radiator rear

1шт.

26

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

27

150811A1

WASHER

- flat, special, 12 mm

1шт.

28

163743A1

RADIATOR HOSE

Upper

1шт.

29

170304A1

CLAMP

- special, 2-3/4 inch (7 mm) max dia

1шт.

30

152796A1

COLLAR

CLAMP - adjustable, 3-1/4 inch (8.25 mm) max dia.

1шт.

31

162517A1

BRACKET

- special

1шт.

32

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

33

150811A1

WASHER

- flat, special, 12 mm

2шт.

34

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

1шт.

35

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

1шт.

36

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10-1.5 x 50 mm, class 10.9

1шт.

37

REF

INSTRUCTION

RADIATOR ASSEMBLY - includes hydraulic oil cooler, parts list Figure 2-6

1шт.

38

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

39

150811A1

WASHER

- flat, special, 12 mm

4шт.

40

162514A1

SEAL

- cushion

1шт.

41

170262A1

BRACKET

- special

1шт.

42

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

43

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

44

170263A1

BRACKET

- special

1шт.

45

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

46

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

47

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.
