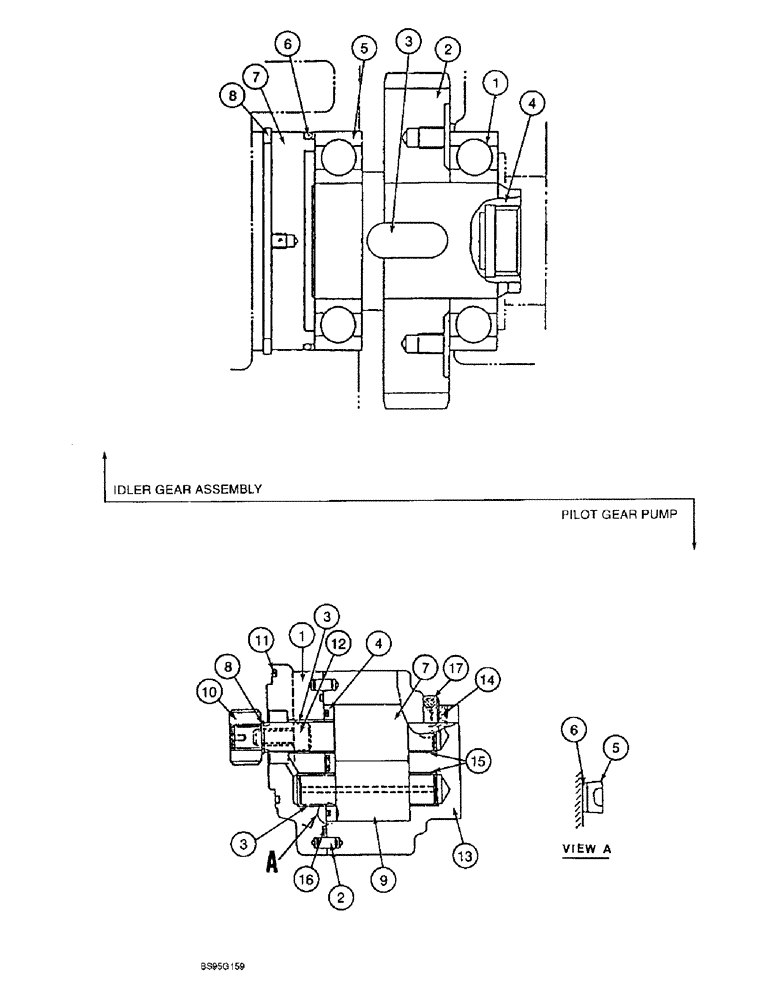

Запчасти Case 9060B (8-094) - HYDRAULIC PUMP, IDLER GEAR ASSEMBLY AND PILOT GEAR PUMP, IDLER GEAR ASSEMBLY, PILOT GEAR PUMP (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
GEAR SUBASSEMBLY - idler, Includes: Ref. 1 - 8
1шт.
1
NSS
NOT SOLD SEPARAT
BEARING ASSEMBLY - ball, component parts not serviced separately
1шт.
2
NSS
NOT SOLD SEPARAT
GEAR - idler
1шт.
3
NSS
NOT SOLD SEPARAT
KEY - drive, idler gear
1шт.
4
NSS
NOT SOLD SEPARAT
SHAFT - jack, idler gear
1шт.
5
NSS
NOT SOLD SEPARAT
BEARING ASSEMBLY - ball, component parts not serviced separately, idler gear
1шт.
6
154687A1
O-RING
- retainer, idler gear
1шт.
7
NSS
NOT SOLD SEPARAT
RETAINER - bearing, idler gear
1шт.
8
800-2185
SNAP RING,M85 x 3, Int
RING, SNAP, , Idler Gear M85 x 3, Int
1шт.
155834A1
PUMP, HYDRAULIC
PUMP ASSEMBLY - pilot gear, Includes: Ref. 1 - 17
1шт.
1
NSS
NOT SOLD SEPARAT
BASE - pump, pilot gear
1шт.
2
NSS
NOT SOLD SEPARAT
PIN - dowel, pilot gear pump
2шт.
3
NSS
NOT SOLD SEPARAT
BUSHING - pump, pilot gear
2шт.
4
NSS
NOT SOLD SEPARAT
PLATE - thrust, pilot gear pump
1шт.
5
163565A1
RING
- seal, pilot gear pump
1шт.
6
NSS
NOT SOLD SEPARAT
RING - backup, pilot gear pump
1шт.
7
NSS
NOT SOLD SEPARAT
GEAR - drive, pilot gear pump
1шт.
8
800-1114
SNAP RING,M14, Ext
RING - external retaining, No. 14, pilot gear pump
1шт.
9
NSS
NOT SOLD SEPARAT
GEAR - driven, pilot gear pump
1шт.
10
NSS
NOT SOLD SEPARAT
COUPLING - pump, pilot gear
1шт.
11
163566A1
O-RING
- pump base, pilot gear
1шт.
12
861-8020
HEX SOC SCREW,M8 x 20mm, Cl 12.9
SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9, Pilot gear pump
2шт.
13
NSS
NOT SOLD SEPARAT
HOUSING - pilot gear pump
1шт.
14
163574A1
PLUG
- port, pilot gear pump
1шт.
15
NSS
NOT SOLD SEPARAT
BUSHING - pump, pilot gear
2шт.
16
155193A1
O-RING
- pump housing, pilot gear
1шт.
17
163576A1
HEX SOC SCREW
BOLT - special, pilot gear pump
4шт.
Выбрано товаров: 27
