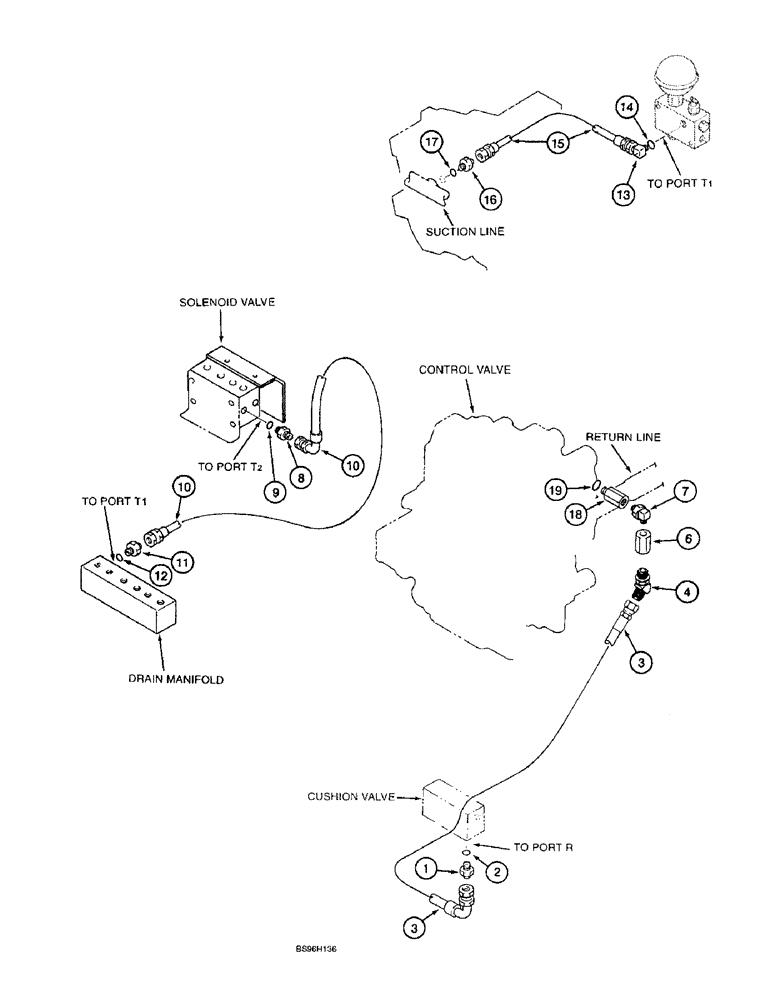

Запчасти Case 9060B (8-086) - MISCELLANEOUS DRAIN LINES (08) - HYDRAULICS

1

153378A1

ADAPTER

- straight, Includes: Ref. 2

1шт.

2

154475A1

O-RING

- adapter

1шт.

3

164234A1

HOSE ASSY.

HOSE - 1650 mm (65 inch) long, cushion valve drain line (cushion valve port \xd2 R\xd3 to port in return line)

1шт.

4

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

6

151552A1

FILTER

- hydraulic, in-line

1шт.

7

159022A1

ELBOW

- 90 degree, special

1шт.

8

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 9

1шт.

9

154475A1

O-RING

- adapter

1шт.

10

162015A1

HOSE ASSY.

HOSE - 750 mm (29-1/2 inch) long, main solenoid valve drain line (main solenoid valve port \xd2 T2\xd3 to drain manifold port T1)

1шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, Includes: Ref. 14

1шт.

14

154487A1

O-RING

- elbow

1шт.

15

164237A1

HOSE ASSY.

HOSE - hydraulic, pilot pressure relief line (check valve port \xd2 T1\xd3 to port in suction line)

1шт.

16

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154487A1

O-RING

- adapter

1шт.

18

153412A1

SOCKET

ADAPTER - straight, 1/4 PT x 7/16-20 inch O-ring boss, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
