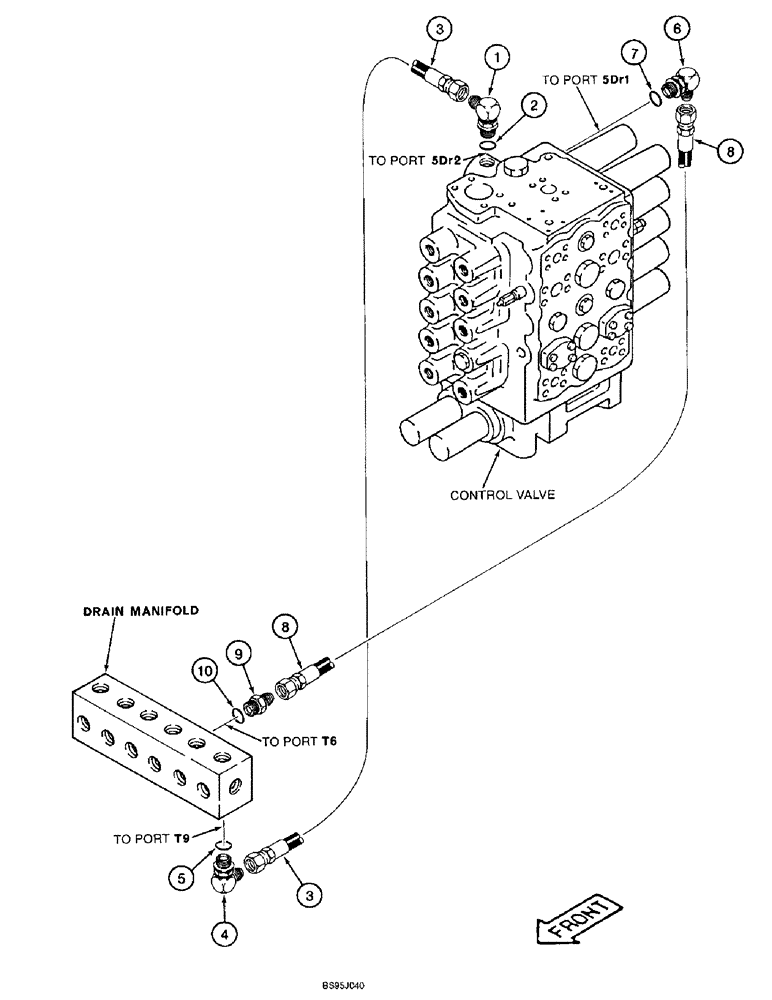

Запчасти Case 9060B (8-082) - CONTROL VALVE DRAIN LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

151892A1

HOSE,6.3mm ID x 1950mm L

- Main control valve drain line (Main control valve port \xd2 5Dr2\xd3 to drain manifold port \xd2 T9\xd3 ) 1950.00 mm

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 7

1шт.

7

154475A1

O-RING

- elbow

1шт.

8

152761A1

HOSE ASSY.

HOSE - 1450 mm (57-1/16 inch) long, arm hold relief line (main control valve port \xd2 5Dr1\xd3 to drain manifold port \xd2 T6\xd3 )

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- adapter

1шт.
