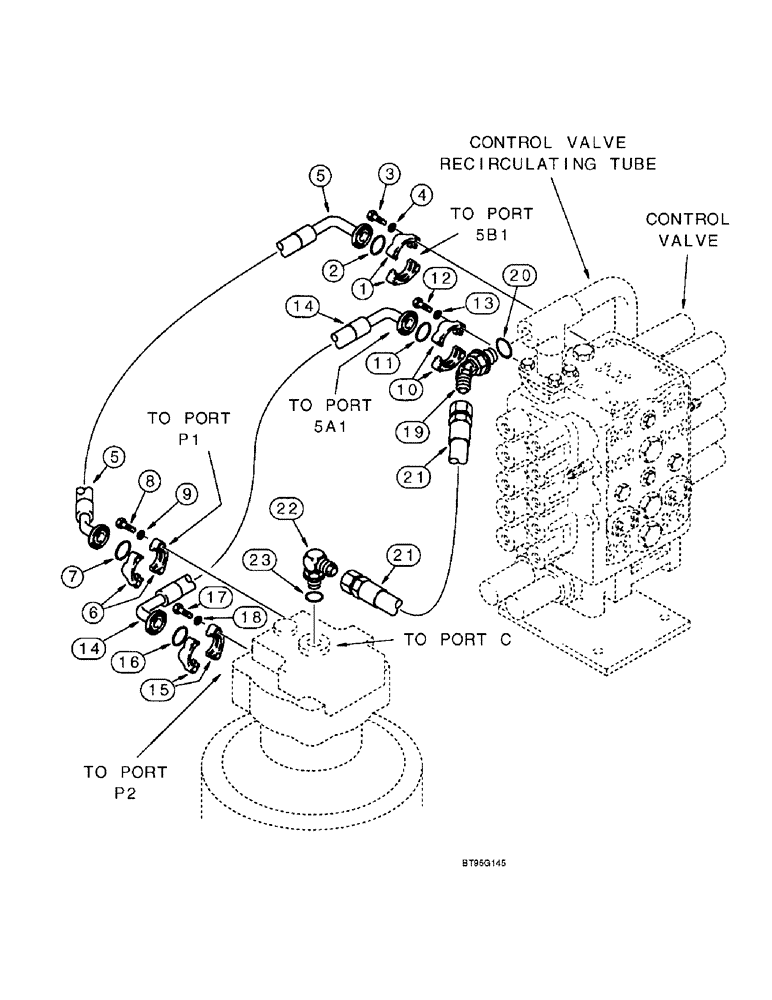

Запчасти Case 9060B (8-070) - SWING MOTOR POWER CIRCUIT (08) - HYDRAULICS

1

A12306

FLANGE

CLAMP - split flange

2шт.

2

162246A1

O-RING

- split flange

1шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

163639A1

HOSE

- 680 mm (26-3/4 inch) long, swing right power line (control valve port \xd2 5B1\xd3 to swing motor port \xd2 P1\xd3 )

1шт.

6

A12306

FLANGE

CLAMP - split flange

2шт.

7

162246A1

O-RING

- split flange

1шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

A12306

FLANGE

CLAMP - split flange

2шт.

11

162246A1

O-RING

- split flange

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

13

892-11010

LOCK WASHER,M10

4шт.

14

163640A1

HOSE ASSY.

HOSE - 550 mm (21-5/8 inch) long, swing left power line (control valve port \xd2 5A1\xd3 to swing motor port \xd2 P2\xd3

1шт.

15

A12306

FLANGE

CLAMP - split flange

2шт.

16

162246A1

O-RING

- split flange

1шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

18

892-11010

LOCK WASHER,M10

4шт.

19

157587A1

ELBOW

- 45 degree, Includes: Ref. 20

1шт.

20

154523A1

O-RING

- elbow

1шт.

21

163790A1

HYDRAULIC HOSE,25.40 mm ID x 650.00 mm

- Return line from swing motor (Swing motor port \xd2 C\xd3 to control valve recirculating tube) 25.40 mm ID x 650.00 mm

1шт.

22

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

- 90 degree, Includes: Ref. 23

1шт.

23

154523A1

O-RING

- elbow

1шт.
