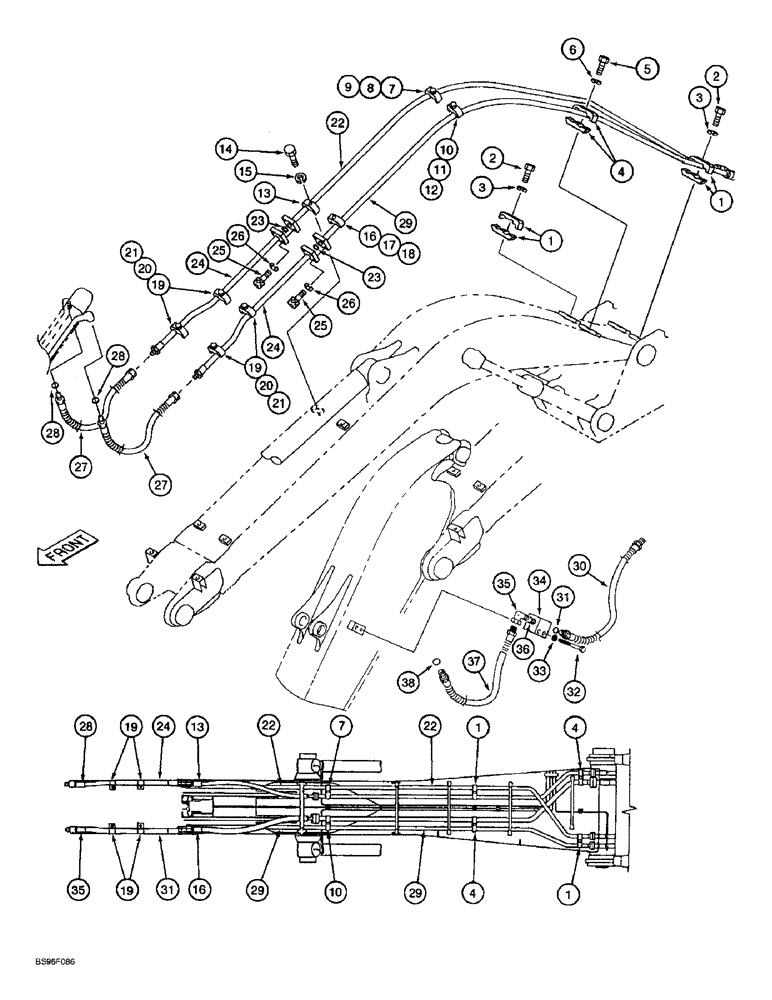

Запчасти Case 9060B (8-062) - BUCKET CYLINDER LINES (08) - HYDRAULICS

1

151232A1

CLAMP

- tube

4шт.

2

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

2шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

4

151695A1

CLAMP

- tube

4шт.

5

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

2шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

7

162595A1

CLAMP

- tube

1шт.

8

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

10

151695A1

CLAMP

- tube

1шт.

11

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

1шт.

12

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

13

150777A1

COLLAR

CLAMP - tube

1шт.

14

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

16

150777A1

COLLAR

CLAMP - tube

1шт.

17

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

18

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

19

150777A1

COLLAR

CLAMP - tube

4шт.

20

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

21

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

22

170158A1

TUBE

- bucket-close line

1шт.

23

154548A1

O-RING

- tube

2шт.

24

151689A1

TUBE,34 mm OD, 2650, 69.5 mm Length

- bucket line

2шт.

25

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 45 mm, class 12.9

8шт.

26

112309A1

LOCK WASHER

- lock, special

8шт.

27

153777A1

HOSE

- 1800 mm (70-7/8 inch) long, 2.5 m (8-1/4 foot) arm only

2шт.

27

153816A1

HYDRAULIC HOSE,1900.00 mm

- 3.4 m (11-1/8 foot) arm only 1900.00 mm

2шт.

27

151658A1

HOSE ASSY.,2400.00 mm

HYDRAULIC HOSE - - 4.0 m (13-1/8 foot) arm only 2400.00 mm

2шт.

28

154523A1

O-RING

- hose

1шт.

29

170159A1

TUBE,34 mm OD

- bucket-open line

1шт.

30

151658A1

HOSE ASSY.,2400.00 mm

HYDRAULIC HOSE - - At top of arm, Models w/5.4 M (17 3/4 foot) arm only, Includes Ref. 31 2400.00 mm

2шт.

31

154523A1

O-RING

- hose to manifold, models w/5.4 M (17 3/4 foot) arm only

1шт.

32

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9, Models w/5.4 M (17 3/4 foot) arm only

4шт.

33

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm, Models w/5.4 M (17 3/4 foot) arm only

4шт.

34

153830A1

MANIFOLD

- hydraulic, bucket cylinder, at top of arm, models w/5.4 M (17 3/4 foot) arm only

2шт.

35

153682A1

ELBOW

- 90 degree, hydraulic, models w/5.4 M (17 3/4 foot) arm only

2шт.

36

154523A1

O-RING

- elbow, models w/5.4 M (17 3/4 foot) arm only

1шт.

37

153816A1

HYDRAULIC HOSE,1900.00 mm

- Manifold to bucket cylinder, Models w/5.4 M (17-3/4 foot) arm only, Includes Ref. 38 1900.00 mm

2шт.

38

154523A1

O-RING

- hose to cylinder tube, models w/5.4 M (17 3/4 foot) arm only

1шт.
