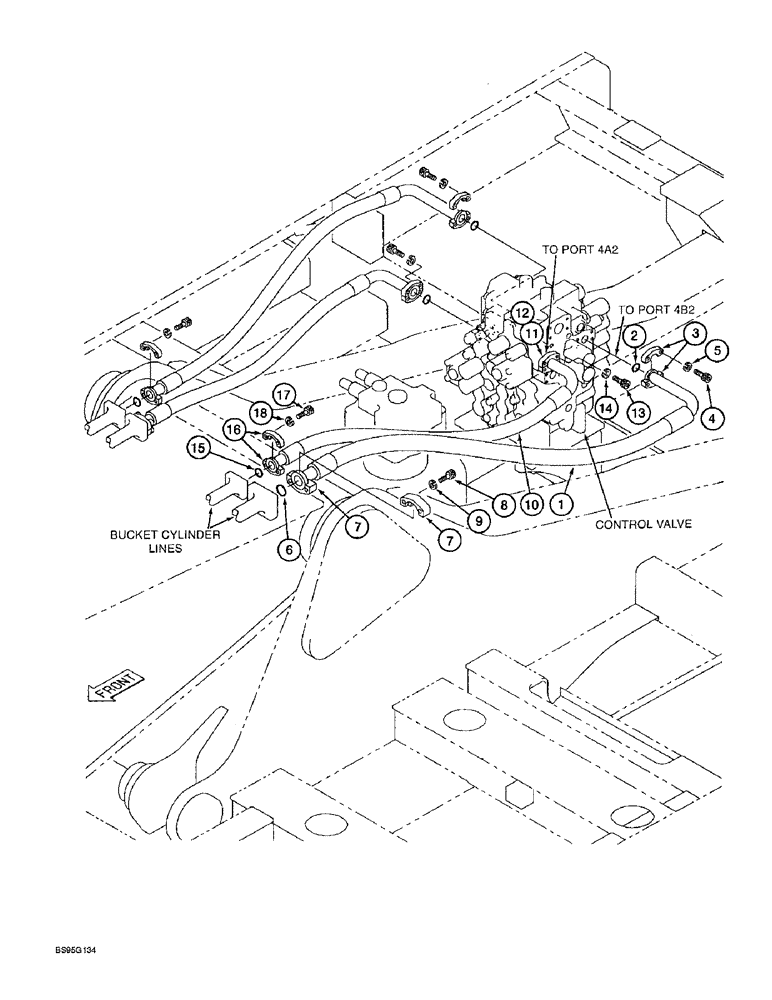

Запчасти Case 9060B (8-060) - BUCKET CYLINDER SUPPLY LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
163634A1
HOSE
- 1630 mm (64-3/16 inch) long, bucket-open line (control valve port \xd2 4B2\xd3 to bucket cylinder line)
1шт.
2
162246A1
O-RING
- hose, bucket-open lines
1шт.
3
A12306
FLANGE
CLAMP - split flange, bucket-open lines
2шт.
4
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Bucket-open lines
4шт.
5
892-11010
LOCK WASHER,M10
Bucket-open lines M10
4шт.
6
162246A1
O-RING
- hose, bucket-open lines
1шт.
7
A12306
FLANGE
CLAMP - split flange, bucket-open lines
2шт.
8
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Bucket-open lines
4шт.
9
112309A1
LOCK WASHER
- lock, special, bucket-open lines
4шт.
10
163635A1
HOSE
- 1500 mm (59-1/16 inch) long, bucket-close line (control valve port \xd2 4A2\xd3 to bucket cylinder line)
1шт.
11
162246A1
O-RING
- hose, bucket-close lines
1шт.
12
A12306
FLANGE
CLAMP - split flange, bucket-close lines
2шт.
13
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, Bucket-close lines
4шт.
14
892-11010
LOCK WASHER,M10
Bucket-close lines M10
4шт.
15
162246A1
O-RING
- hose, bucket-close lines
1шт.
16
A12306
FLANGE
CLAMP - split flange, bucket-close lines
2шт.
17
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Bucket-close lines
4шт.
18
112309A1
LOCK WASHER
- lock, special, bucket-close lines
4шт.
Выбрано товаров: 18
