(8-056) - ARM CYLINDER LINES - ARM-IN/OUT TUBE TO ARM CYLINDER

Запчасти Case 9060B (8-056) - ARM CYLINDER LINES - ARM-IN/OUT TUBE TO ARM CYLINDER (08) - HYDRAULICS

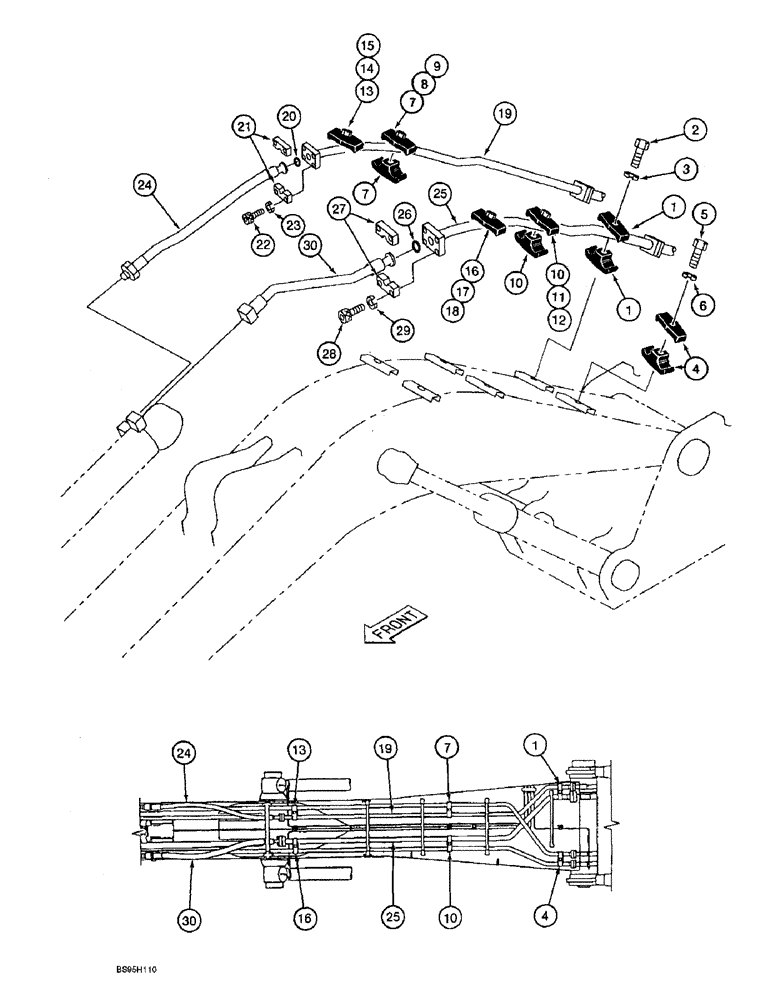

Схема запчастей Case 9060B - (8-056) - ARM CYLINDER LINES - ARM-IN/OUT TUBE TO ARM CYLINDER (08) - HYDRAULICS
11
9
7
26
6
15
29
8
1
19
22
20
4
1
19
24
5
4
10
10
1
2
13
10
16
17
28
12
23
16
21
14
25
18
24
3
7
13
7
27
25
30
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151695A1

CLAMP

- tube

2шт.

2

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

1шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

4

151232A1

CLAMP

- tube

2шт.

5

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

1шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

7

151232A1

CLAMP

- tube

2шт.

8

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

1шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

10

151695A1

CLAMP

- tube

2шт.

11

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

1шт.

12

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

13

162595A1

CLAMP

- tube

1шт.

14

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

16

151695A1

CLAMP

- tube

1шт.

17

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

1шт.

18

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

19

167568A1

HYD TUBE

TUBE - arm cylinder supply line to arm-out hose, lines, Replaces 170157A1

1шт.

20

162246A1

O-RING

- hose, arm-out lines

1шт.

21

A12306

FLANGE

CLAMP - split flange, arm-out lines

2шт.

22

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9, arm-out lines

4шт.

23

112309A1

LOCK WASHER

- lock, special, arm-out lines

4шт.

24

167568A1

HYD TUBE

HOSE - 1250 mm (49-3/16 inch) long, arm-out tube to arm cylinder, lines, Replaces 170175A1

1шт.

25

167569A1

HYD TUBE

TUBE - arm cylinder supply line to arm-in hose, lines, Replaces 170160A1

1шт.

26

153626A1

O-RING

- hose, arm-in lines

1шт.

27

150124A1

FLANGE

- split, arm-in lines

2шт.

28

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9, arm-in lines

4шт.

29

150336A1

SPRING WASHER

WASHER - lock, 14 mm, arm-in lines

4шт.

30

170165A1

HOSE

- 1250 mm (49-3/16 inch) long, arm-in tube to arm cylinder, lines

1шт.
