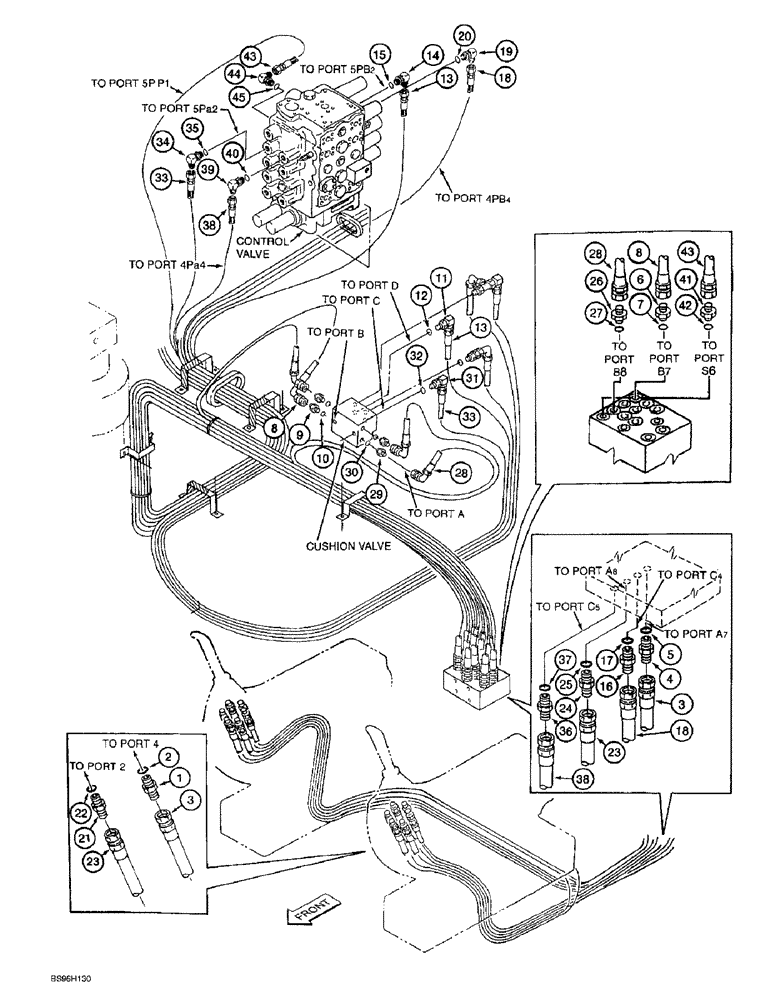

Запчасти Case 9060B (8-050) - ARM CONTROL LINES - ARM-OUT/ ARM-IN & ARM HOLDING SIGNAL (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159217A1

HYDRAULIC HOSE

HOSE - 1850 mm (72-13/16 inch) long, arm-out line (left-hand manual control valve port \xd2 4\xd3 to main shuttle valve port \xd2 A7\xd3 )

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154475A1

O-RING

- adapter

1шт.

8

159223A1

HOSE ASSY.

HOSE - 1100 mm (44-3/16 inch) long, arm-out line (main shuttle valve port \xd2 B7\xd3 to cushion valve port \xd2 B\xd3 )

1шт.

9

165000A1

PLUG

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154486A1

O-RING

- adapter

1шт.

11

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- elbow

1шт.

13

164230A1

HOSE ASSY.

HOSE - 2750 mm (108-1/4 inch) long, arm-out line, (cushion valve port \xd2 D\xd3 to main control valve port \xd2 5Pb2\xd3 )

1шт.

14

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 15

1шт.

15

154475A1

O-RING

- elbow

1шт.

16

152747A1

ADAPTER

- straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

152774A1

HOSE ASSY.

HOSE - 3100 mm (122 inch) long, arm-out signal line (main shuttle valve port \xd2 C4\xd3 to control valve port \xd2 4Pb4\xd3 )

1шт.

19

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 20

1шт.

20

154475A1

O-RING

- adapter

1шт.

21

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

- Arm-in line (LH manual control valve port \xd2 2\xd3 to main shuttle valve port \xd2 A8\xd3 ) 9.50 mm ID x 1750.00 mm

1шт.

24

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 25

1шт.

25

154475A1

O-RING

- adapter

1шт.

26

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 27

1шт.

27

154475A1

O-RING

- adapter

1шт.

28

159224A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long, arm-in line (main shuttle valve port \xd2 B8\xd3 to cushion valve port \xd2 A\xd3 )

1шт.

29

165000A1

PLUG

ADAPTER - straight

1шт.

30

154486A1

O-RING

- adapter

1шт.

31

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 32

1шт.

32

154475A1

O-RING

- elbow

1шт.

33

152764A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long, arm-in line (cushion valve port \xd2 C\xd3 to main control valve port \xd2 5Pa2\xd3 )

1шт.

34

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 35

1шт.

35

154475A1

O-RING

- adapter

1шт.

36

152747A1

ADAPTER

- straight, Includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

38

152764A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long, arm-in signal line (main shuttle valve port \xd2 C5\xd3 to control valve port \xd2 4Pa4\xd3 )

1шт.

39

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 40

1шт.

40

154475A1

O-RING

- elbow

1шт.

41

152747A1

ADAPTER

- straight, arm holding signal line

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, arm holding signal line

1шт.

43

159062A1

HOSE ASSY.

HOSE - 3700 mm (145-11/16 inch) long, arm holding signal line (main shuttle valve port \xd2 S6\xd3 to main control valve port \xd2 5P.P1\xd3 )

1шт.

44

153559A1

ELBOW

- 90 degree, arm holding signal line, Includes: Ref. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, arm holding signal line

1шт.
