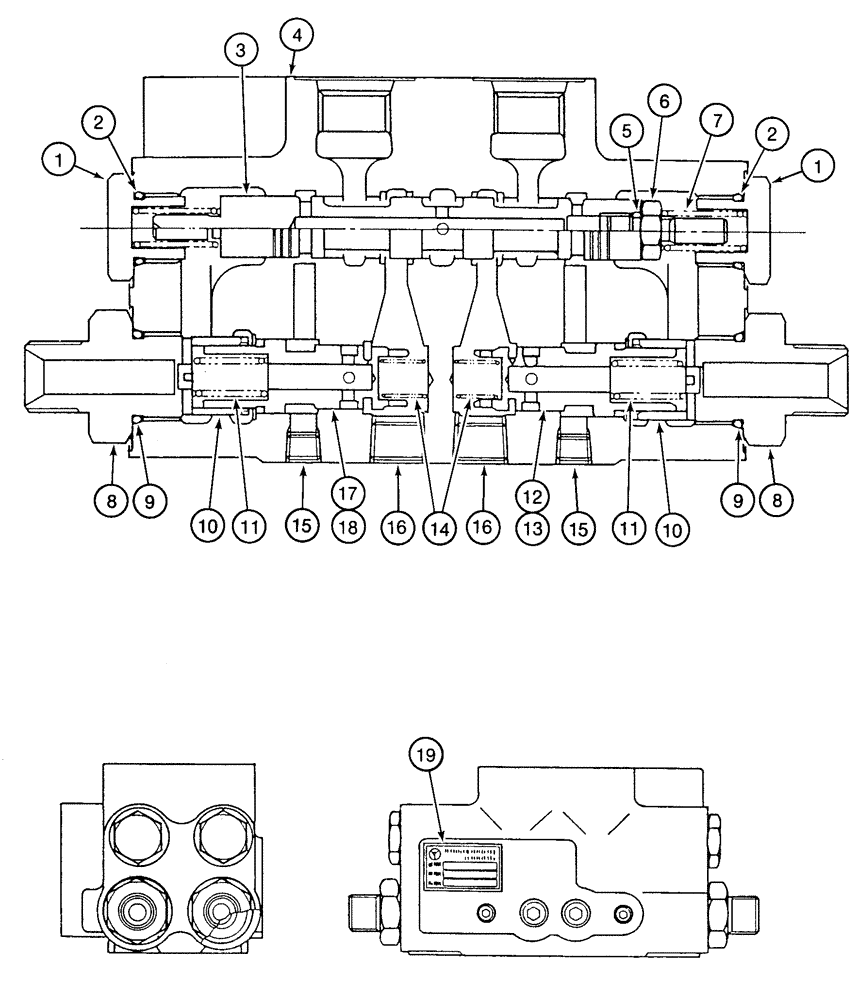

Запчасти Case 9060 (8-052) - 153008A1 CUSHION VALVE (08) - HYDRAULICS

153008A1

CUSHION ASSY.

VALVE - cushion, Includes: Ref. 1 - 19

1шт.

1

153539A1

PLUG

- spool end

4шт.

2

154474A1

O-RING

- plug

4шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

2шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

150559A1

O-RING

- seal

2шт.

6

153537A1

SCREW

GUIDE - spring, spool end

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING - spool return

4шт.

8

153548A1

PLUG

- secondary spool retaining

4шт.

9

154486A1

O-RING

- plug

4шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - secondary spool

4шт.

11

NSS

NOT SOLD SEPARAT

SPRING - secondary spool, outer

4шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - secondary, arm cushioning

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - secondary, boom cushioning

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - secondary spool, inner

4шт.

15

151229A1

PLUG

- hex socket, small

11шт.

16

151026A1

PLUG

- port, large

8шт.

17

NSS

NOT SOLD SEPARAT

SPOOL - secondary, arm cushioning

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - secondary, boom cushioning

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.
