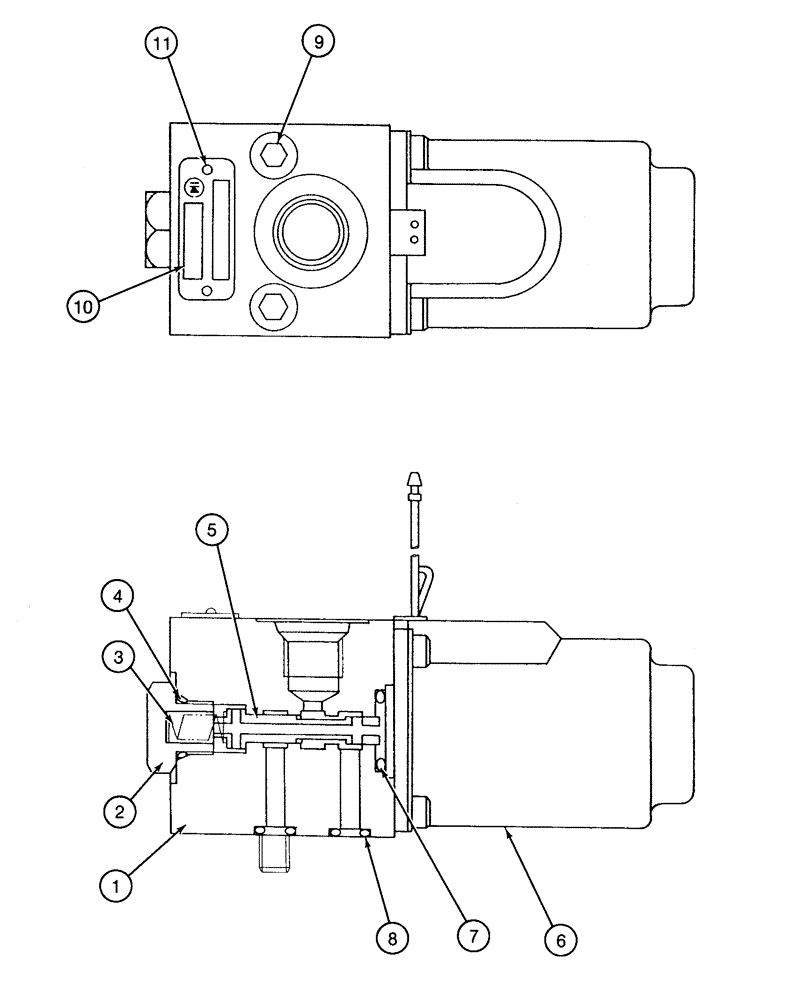

Запчасти Case 9060 (8-046) - 151017A1 SOLENOID VALVE (08) - HYDRAULICS

151017A1

VALVE

- solenoid, Includes: Ref. 1 - 11

3шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

155456A1

PLUG

- port

1шт.

3

156048A1

SPRING

- compression

1шт.

4

154463A1

O-RING

- plug

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

6

NSS

NOT SOLD SEPARAT

SOLENOID - valve

1шт.

7

154475A1

O-RING

- solenoid

1шт.

8

154447A1

O-RING

- port

2шт.

9

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 45 mm, class 12.9

2шт.

10

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

11

NSS

NOT SOLD SEPARAT

RIVET - name plate mounting

2шт.
