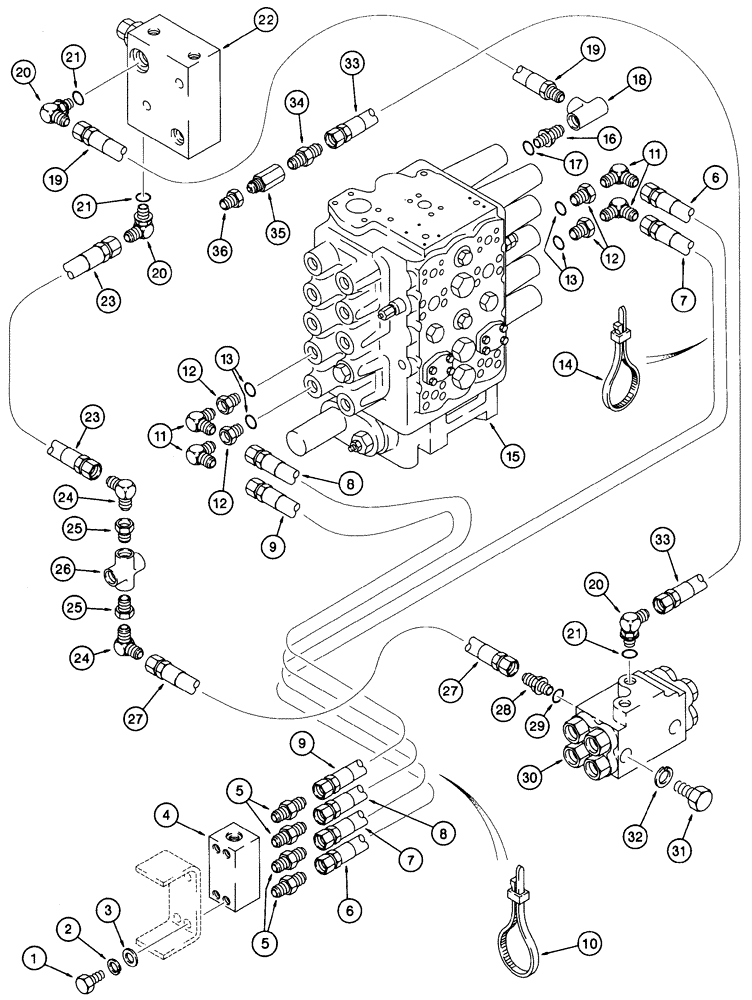

Запчасти Case 9060 (8-040) - HYDRAULIC CONTROL CIRCUIT, SHUTTLE, CUSHION, AND BOOM HOLD VALVES TO CONTROL VALVE (08) - HYDRAULICS

1

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

2

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

4

152744A1

SHUT-OFF VALVE

VALVE - shuttle, parts list figure 8-058

1шт.

5

152748A1

ADAPTER

- straight

4шт.

6

152777A1

HOSE ASSY.

HOSE - 126 inch (3200 mm) long, shuttle valve to right-hand rear travel spool

1шт.

7

152774A1

HOSE ASSY.

HOSE - 122 inch (3100 mm) long, shuttle valve to left-hand rear travel spool

1шт.

8

152780A1

HOSE

- 133-7/8 inch (3400 mm) long, shuttle valve to right-hand front travel spool

1шт.

9

152779A1

HOSE ASSY.

HOSE - 130 inch (3300 mm) long, shuttle valve to left-hand front travel spool

1шт.

10

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

11

153495A1

ADAPTER

ELBOW - 90 degree

4шт.

12

153413A1

SOCKET

REDUCER - special

4шт.

13

154475A1

O-RING

- reducer

1шт.

14

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

15

153038A1

VALVE, CONTROL

VALVE - hydraulic control, parts list figures 8-072 - 8-078

1шт.

16

150163A1

NIPPLE, LUBE

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154475A1

O-RING

- adapter

1шт.

18

153589A1

TEE

- hydraulic

1шт.

19

152803A1

HOSE

- 31-1/2 inch (800 mm) long, control valve to boom hold valve

1шт.

20

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 21

3шт.

21

154475A1

O-RING

- elbow

1шт.

22

153296A1

VALVE

- holding, boom, parts list figure 8-82

1шт.

23

152889A1

HOSE ASSY.

HOSE - 25-5/8 inch (650 mm) long, boom hold valve return

1шт.

24

153495A1

ADAPTER

ELBOW - 90 degree

2шт.

25

151069A1

BUSHING

- reducer

2шт.

26

150965A1

CROSS

- hydraulic

1шт.

27

152752A1

HOSE,95.00 mm ID x 1050.00 mm

- Cushion valve return 95.00 mm ID x 1050.00 mm

1шт.

28

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 29

1шт.

29

154475A1

O-RING

- adapter

1шт.

30

153008A1

CUSHION ASSY.

VALVE - cushion, parts list figure 8-052

1шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

32

892-11010

LOCK WASHER,M10

2шт.

33

152752A1

HOSE,95.00 mm ID x 1050.00 mm

- Cushion valve to control valve 95.00 mm ID x 1050.00 mm

1шт.

34

152748A1

ADAPTER

- straight

1шт.

35

151552A1

FILTER

- hydraulic, in-line

1шт.

36

153325A1

ORIFICE

BUSHING - reducer, orifice

1шт.
