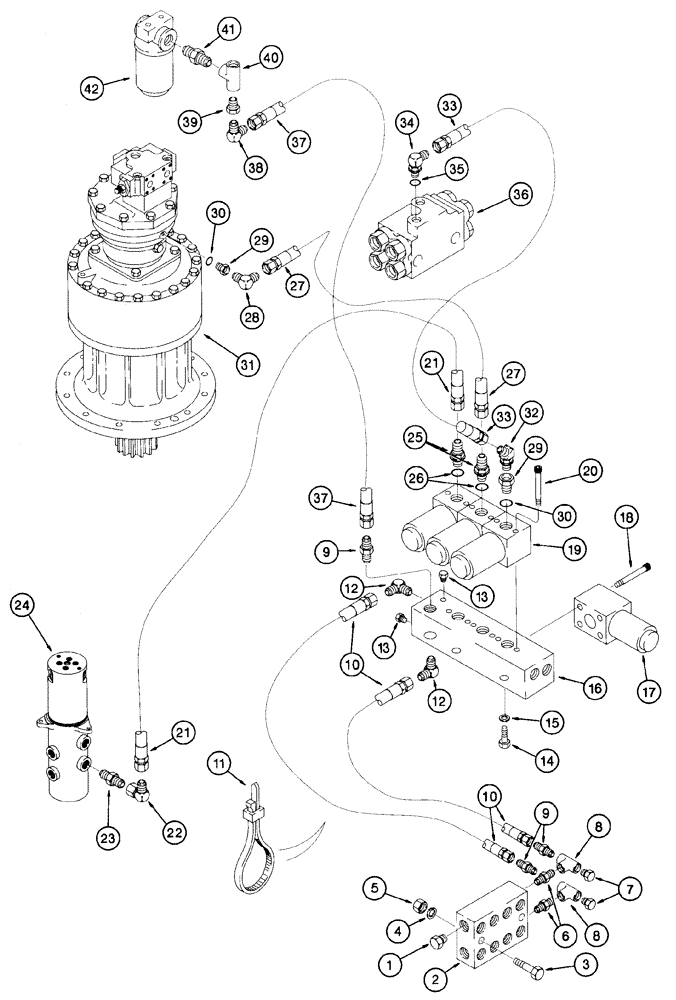

Запчасти Case 9060 (8-038) - HYDRAULIC CONTROL CIRCUIT, SOLENOIDS TO SWIVEL, SWING MOTOR AND CUSHION VALVE (08) - HYDRAULICS

1

151033A1

PLUG

- hex socket, special

2шт.

2

152457A1

MANIFOLD

- hydraulic, controller valve hoses

1шт.

3

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

hex, 12 - 1.75 x 65 mm, class 10.9

2шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

5

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

6

150850A1

NIPPLE, LUBE

BUSHING - reducer

2шт.

7

150999A1

PLUG

- hex

2шт.

8

151809A1

TEE

- hydraulic

2шт.

9

150073A1

ADAPTER

- straight

3шт.

10

153304A1

HOSE

- 78-3/4 inch (2000 mm) long, Serial Range: manifold-solenoid

2шт.

11

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

12

150602A1

ADAPTER

ELBOW - 90 degree

2шт.

13

151026A1

PLUG

- port

2шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

15

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

16

152858A1

MANIFOLD

- hydraulic, at solenoids

1шт.

17

150425A1

VALVE

- solenoid, parts list figure 8-042, Includes: Ref. 18

1шт.

18

150125A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

4шт.

19

151017A1

VALVE

- solenoid, parts list figure 8-046, Includes: Ref. 20

3шт.

20

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 45 mm, class 12.9

2шт.

21

152896A1

HOSE

- 102-3/8 inch (2600 mm) long, 2-speed travel, Serial Range: solenoid-swivel

1шт.

22

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

23

153603A1

ADAPTER

- straight

1шт.

24

152096A1

HYDRAULIC SWIVEL

SWIVEL - hydraulic, parts list figure 6-018

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 26

2шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

27

152773A1

HOSE ASSY.

HOSE - 72-13/16 inch (1850 mm) long, swing brake release solenoid to swing motor

1шт.

28

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

29

153412A1

SOCKET

ADAPTER - straight, 1/4 PT x 7/16-20 inch O-ring boss, Includes: Ref. 30

2шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

31

REF

INSTRUCTION

MOTOR - swing, parts list pages 8-63 - 8-71

1шт.

32

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

33

152281A1

HOSE,63.00 mm ID x 800.00 mm

63.00 mm ID x 800 mm - Cushion shutoff solenoid to cushion valve

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

36

153008A1

CUSHION ASSY.

VALVE - cushion, parts list figure 8-052

1шт.

37

152769A1

HOSE

- 55-1/8 inch (1400 mm) long, Serial Range: manifold-filter

1шт.

38

150602A1

ADAPTER

ELBOW - 90 degree

1шт.

39

151073A1

BUSHING

- reducer

1шт.

40

152146A1

TEE

- hydraulic

1шт.

41

152133A1

NIPPLE, LUBE

ADAPTER - straight, Serial Range: manifold-filter

1шт.

42

150792A1

FILTER ASSY

FILTER - oil, parts list figure 8-010

1шт.
