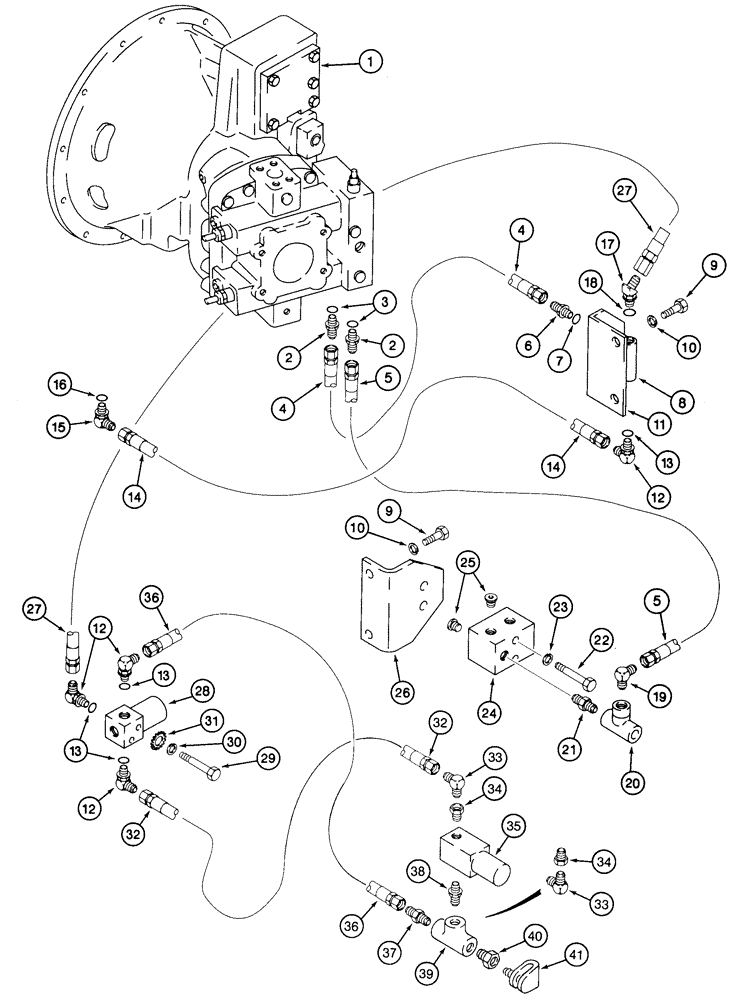

Запчасти Case 9060 (8-036) - HYDRAULIC CONTROL CIRCUIT, PUMP TO BOOM DOWN SOLENOID (08) - HYDRAULICS

1

152813A1

PUMP, HYDRAULIC

PUMP - hydraulic, parts list figures 8-014 - 8-022

1шт.

2

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 3

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

4

158181A1

HOSE ASSY.

HOSE - 33-1/2 inch (850 mm) long, pump to shuttle valve

1шт.

5

158181A1

HOSE ASSY.

HOSE - 33-1/2 inch (850 mm) long, Serial Range: pump-manifold

1шт.

6

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

9

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

11

158187A1

BRACKET

- mounting, shuttle valve

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 13

4шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

14

153534A1

HOSE ASSY.

HOSE - 9-13/16 inch (250 mm) long, shuttle valve

1шт.

15

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 16

1шт.

16

154475A1

O-RING

- elbow

1шт.

17

150933A1

ELBOW

- 45 degree, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

19

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

20

153374A1

SHUT-OFF VALVE

VALVE - shuttle

1шт.

21

151870A1

ADAPTER

- straight

1шт.

22

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

2шт.

23

892-11010

LOCK WASHER,M10

2шт.

24

153305A1

MANIFOLD

- hydraulic

1шт.

25

151026A1

PLUG

- port

2шт.

26

152922A1

ADAPTER

BRACKET - manifold mounting

1шт.

27

158182A1

HOSE,6.40 mm ID x mm

- 94-1/2 inch (2400 mm) long, shuttle valve to boom down solenoid

1шт.

28

150844A1

VALVE

- solenoid, parts list figure 8-048

1шт.

29

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

30

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

31

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

32

152276A1

HOSE,63mm ID x 550mm L

Bottom of solenoid to top of pilot relief 63.00 mm ID x 550.00 mm

1шт.

33

153596A1

ADAPTER

ELBOW - 90 degree, if used

2шт.

34

151057A1

BUSHING

- reducer, if used

2шт.

35

152785A1

VALVE, PRESSURE RELI

VALVE - pilot relief

1шт.

36

152775A1

HOSE ASSY.

HOSE - 19-3/4 inch (500 mm) long, top of solenoid to bottom of pilot relief

1шт.

37

152130A1

NIPPLE, LUBE

ADAPTER - straight, if used

1шт.

38

156556A1

ADAPTER

CONNECTOR - straight, if used

1шт.

39

152135A1

TEE

- hydraulic, if used

1шт.

40

150499A1

BUSHING

ADAPTER - straight, 9/16 inch female straight thread x 3/8 inch PT, if used

1шт.

41

150290A1

PLUG

- oil, if used

1шт.
