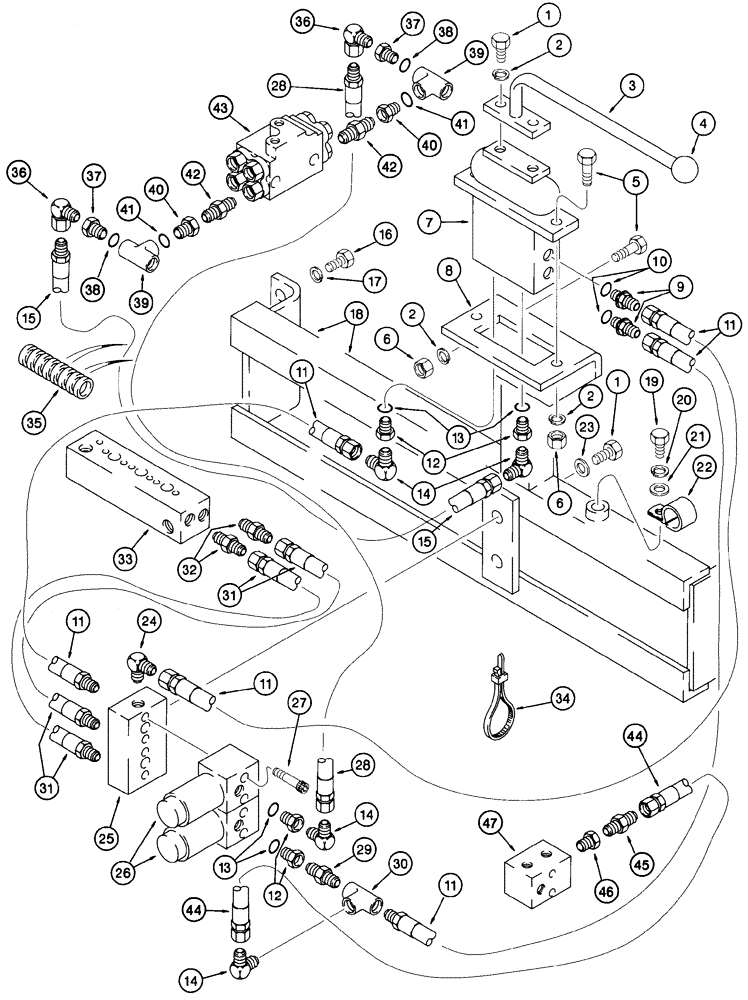

Запчасти Case 9060 (8-034) - HYDRAULIC CONTROL CIRCUIT, REMOTE BOOM CONTROL FOR COUNTERWEIGHT REMOVAL (08) - HYDRAULICS

1

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

2

892-11010

LOCK WASHER,M10

6шт.

3

152868A1

LEVER

- hand, remote boom control valve

1шт.

4

151313A1

KNOB

- control lever

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

7

152877A1

VALVE

- remote control, parts list figure 8-056

1шт.

8

152867A1

BRACKET

- valve mounting

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

150983A1

HOSE ASSY.

HOSE - 17-3/4 inch (450 mm) long, remote control, Serial Range: valve-solenoids

3шт.

12

153412A1

SOCKET

ADAPTER - straight, 1/4 PT x 7/16-20 inch O-ring boss, Includes: Ref. 13

4шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14

153596A1

ADAPTER

ELBOW - 90 degree

5шт.

15

151888A1

HOSE,63.00 mm ID x 1350.00 mm

- Remote control valve to cushion valve 63.00 mm ID x 1350.00 mm

1шт.

16

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

2шт.

17

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

18

153003A1

BRACKET

- filter

1шт.

19

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

1шт.

20

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

150574A1

CLAMP

- hose

1шт.

23

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

24

153602A1

ELBOW

- 90 degree

1шт.

25

152859A1

MANIFOLD

- hydraulic, at counterweight removal solenoids

1шт.

26

151017A1

VALVE

- solenoid, parts list figure 8-046, Includes: Ref. 27

2шт.

27

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 45 mm, class 12.9

2шт.

28

152514A1

HOSE,63mm ID x 1000mm L

- Solenoid to cushion valve 63.00 mm ID x 1000.00 mm

1шт.

29

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

30

152135A1

TEE

- hydraulic

1шт.

31

152874A1

HOSE

- 10-5/8 inch (270 mm) long, solenoid manifold to solenoid manifold

2шт.

32

153603A1

ADAPTER

- straight

2шт.

33

152858A1

MANIFOLD

- hydraulic, at solenoids

1шт.

34

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

35

150768A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 300 mm Length

SLEEVE - corrugated, 11-13/16 inch (300 mm) long

2шт.

36

153596A1

ADAPTER

ELBOW - 90 degree

2шт.

37

152309A1

SOCKET

REDUCER - special, Includes: Ref. 38

2шт.

38

154475A1

O-RING

- reducer

1шт.

39

153374A1

SHUT-OFF VALVE

VALVE - shuttle

2шт.

40

153413A1

SOCKET

REDUCER - special, Includes: Ref. 41

2шт.

41

154475A1

O-RING

- reducer

1шт.

42

153625A1

ADAPTER

- straight

2шт.

43

153008A1

CUSHION ASSY.

VALVE ASSEMBLY - cushion, parts list figure 8-052

1шт.

44

152514A1

HOSE,63mm ID x 1000mm L

- Solenoid to manifold 63.00 mm ID x 1000.00 mm

1шт.

45

153603A1

ADAPTER

- straight

1шт.

46

151063A1

BUSHING

- reducer

1шт.

47

153305A1

MANIFOLD

- hydraulic

1шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
