Запчасти Case 9060 (8-032) - HYDRAULIC CONTROL CIRCUIT, PUMP TO PILOT LINE FILTER AND ACCUMULATOR (08) - HYDRAULICS

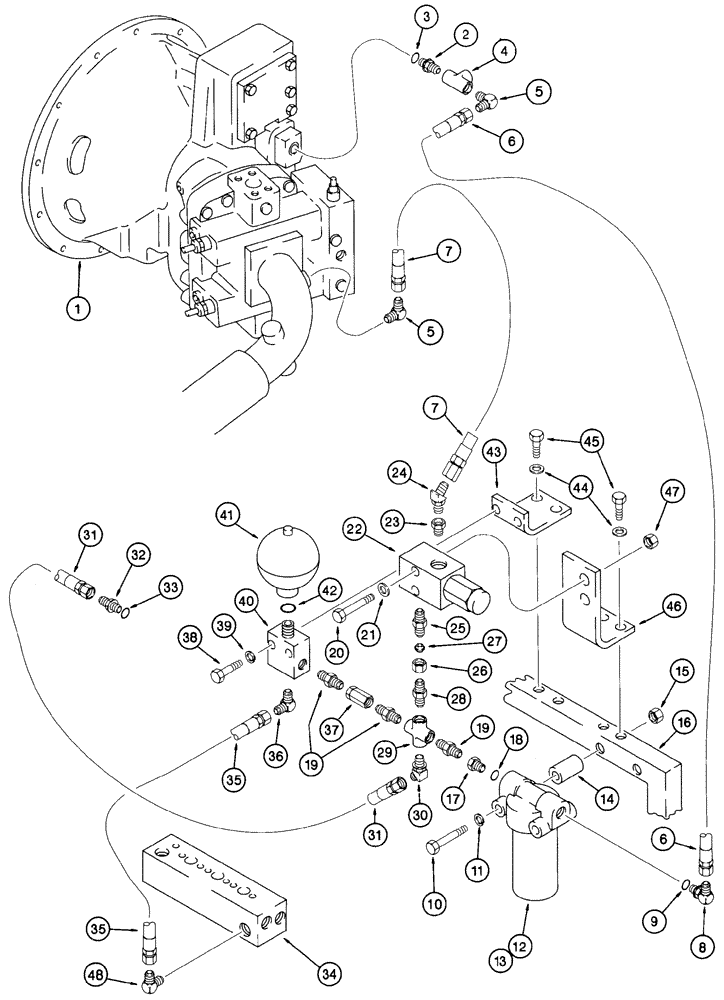

Схема запчастей Case 9060 - (8-032) - HYDRAULIC CONTROL CIRCUIT, PUMP TO PILOT LINE FILTER AND ACCUMULATOR (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

152813A1

PUMP, HYDRAULIC

PUMP - hydraulic, parts list pages 8-014 - 8-022

1шт.

2

150167A1

NIPPLE, LUBE

ADAPTER - straight, special, Includes: Ref. 3

1шт.

3

154487A1

O-RING

- adapter

1шт.

4

150702A1

TEE

- special

1шт.

5

150602A1

ADAPTER

ELBOW - 90 degree

2шт.

6

153006A1

HOSE

- hydraulic, pump to pilot line filter

1шт.

7

151851A1

HOSE,127.00 mm ID x 1000.00 mm

Pump to pilot relief valve 127.00 mm ID x 1000.00 mm

1шт.

8

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, hydraulic, Includes: Ref. 9

1шт.

9

154487A1

O-RING

- elbow

1шт.

10

152870A1

BOLT,High Strength, Hex, M10 x 130mm

BOLT - hex, special, filter mounting

2шт.

11

892-11010

LOCK WASHER,M10

2шт.

12

153025A1

FILTER

- pilot line, Includes: Ref. 13

1шт.

13

153026A1

ELEMENT

- filter, pilot line

1шт.

14

153225A1

SPACER

- filter mounting

2шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

153003A1

BRACKET

- filter

1шт.

17

152317A1

SOCKET

REDUCER - special, Includes: Ref. 18

1шт.

18

154487A1

O-RING

- reducer

1шт.

19

150848A1

NIPPLE, LUBE

ADAPTER - straight

3шт.

20

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

21

153081A1

WASHER

- flat, special

2шт.

22

152785A1

VALVE, PRESSURE RELI

VALVE - pilot relief

1шт.

23

152037A1

BUSHING

- reducer

1шт.

24

150915A1

ADAPTER

ELBOW - 45 degree

1шт.

25

152229A1

ADAPTER

- compression fitting

1шт.

26

151965A1

NUT

- compression fitting

1шт.

27

152001A1

SLEEVE

- compression fitting

1шт.

28

151669A1

CONNECTOR, ELEC

CONNECTOR - straight

1шт.

29

152686A1

CROSS

- special

1шт.

30

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

31

152264A1

HOSE,6.3mm ID x 2200mm L

Pilot relief valve to control valve 63.00 mm ID x 2200.00 mm

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

34

152858A1

MANIFOLD

- hydraulic, at solenoids

1шт.

35

152801A1

HOSE

- 23-5/8 inch (600 mm) long, Serial Range: manifold-accumulator

1шт.

36

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

37

152937A1

VALVE, CHECK

VALVE - check

1шт.

38

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

39

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

40

150898A1

MANIFOLD

- at accumulator

1шт.

41

150894A1

ACCUMULATOR

- hydraulic

1шт.

42

154486A1

O-RING

-, Serial Range: accumulator-manifold

1шт.

43

153004A1

BRACKET

- manifold mounting

1шт.

44

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

46

153005A1

BRACKET

- mounting, pilot relief valve

1шт.

47

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

48

153595A1

ELBOW

- 90 degree

1шт.

45

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 48
