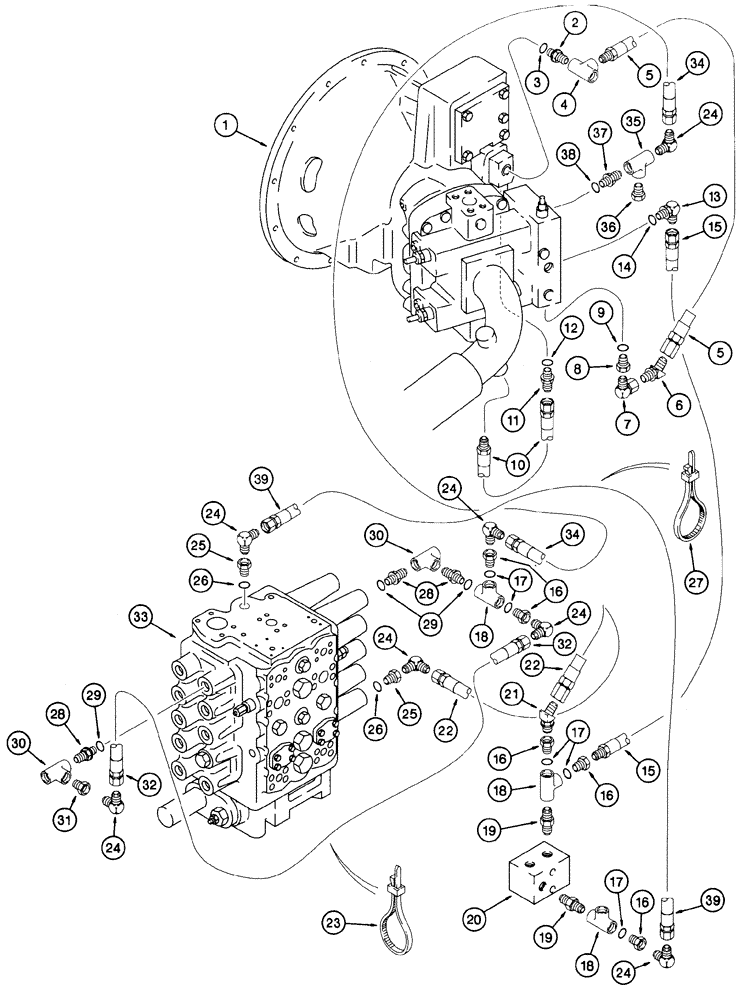

Запчасти Case 9060 (8-030) - HYDRAULIC CONTROL CIRCUIT, PUMP TO CONTROL VALVE (08) - HYDRAULICS

1

152813A1

PUMP, HYDRAULIC

PUMP - hydraulic, parts list figures 8-014 - 8-022

1шт.

2

150167A1

NIPPLE, LUBE

ADAPTER - straight, special, Includes: Ref. 3

1шт.

3

154487A1

O-RING

- adapter

1шт.

4

150702A1

TEE

- special

1шт.

5

152614A1

HOSE,95mm ID x 400mm L

- Pilot, at pump 95.00 mm ID x 400.00 mm

1шт.

6

153488A1

ADAPTER

ELBOW - 45 degree

1шт.

7

153595A1

ELBOW

- 90 degree

1шт.

8

153413A1

SOCKET

REDUCER - special, Includes: Ref. 9

1шт.

9

154475A1

O-RING

- reducer

1шт.

10

152853A1

HOSE ASSY.

HOSE - 31-1/2 inch (800 mm) long, pump pilot

1шт.

11

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 12

1шт.

12

154503A1

O-RING

- adapter

1шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

15

153342A1

HOSE ASSY.

HOSE - 35-7/16 inch (900 mm) long, control, Serial Range: valve-manifold

1шт.

16

152309A1

SOCKET

REDUCER - special, Includes: Ref. 17

5шт.

17

154475A1

O-RING

- reducer

1шт.

18

153374A1

SHUT-OFF VALVE

VALVE - shuttle

3шт.

19

151870A1

ADAPTER

- straight

2шт.

20

153305A1

MANIFOLD

- hydraulic

1шт.

21

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

22

152275A1

HOSE,63mm ID x 2900mm L

Manifold to control valve 63.00 mm ID x 2900.00 mm

1шт.

23

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

24

153596A1

ADAPTER

ELBOW - 90 degree

7шт.

25

153412A1

SOCKET

ADAPTER - straight, 1/4 PT x 7/16-20 inch O-ring boss, Includes: Ref. 26

2шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

27

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

28

150163A1

NIPPLE, LUBE

ADAPTER - straight, hydraulic, Includes: Ref. 29

3шт.

29

154475A1

O-RING

- adapter

1шт.

30

153589A1

TEE

- hydraulic

2шт.

31

151057A1

BUSHING

- reducer

1шт.

32

151872A1

HOSE ASSY.

HOSE - 33-1/2 inch (850 mm) long, pilot line, at valve swing section

1шт.

33

153038A1

VALVE, CONTROL

VALVE ASSEMBLY - hydraulic control, parts list figures 8-072 - 8-078

1шт.

34

151895A1

HOSE,2450.00 mm

- Pump to control valve swing section 2450.00 mm

1шт.

35

152135A1

TEE

- hydraulic

1шт.

36

151055A1

BUSHING

- reducer

1шт.

37

152899A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

39

152270A1

HOSE,6.3mm ID x 2600mm L

Manifold to top of control valve 63.00 mm ID x 2600.00 mm

1шт.
