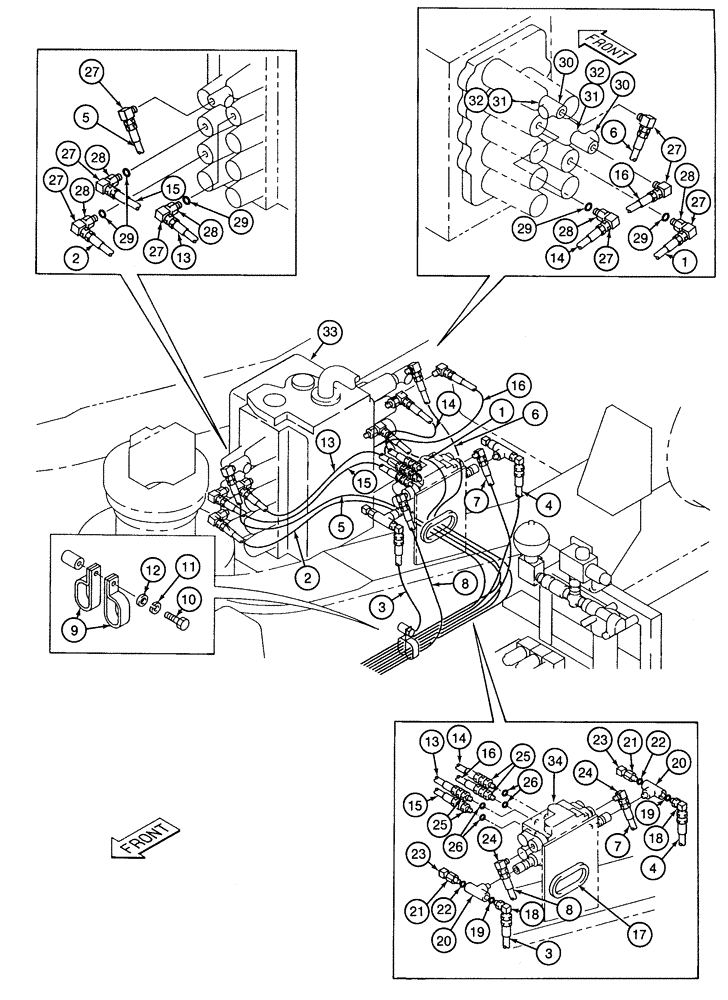

Запчасти Case 9060 (8-028) - HYDRAULIC CONTROL CIRCUIT, CONTROL LINES AT CUSHION AND HYDRAULIC CONTROL VALVES (08) - HYDRAULICS

1

152904A1

HOSE

- 157-1/2 inch (4000 mm) long, bucket, right-hand controller to rear of control valve, bucket section

1шт.

2

153210A1

HOSE

- 165-3/8 inch (4200 mm) long, bucket, right-hand controller to front of control valve, bucket section

1шт.

3

153509A1

HOSE

- 118-1/4 inch (3000 mm) long, boom, right-hand controller to front of cushion valve, boom section

1шт.

4

153510A1

HOSE

- 130 inch (3300 mm) long, boom, right-hand controller to rear of cushion valve, boom section

1шт.

5

153019A1

HOSE

- hydraulic, swing, left-hand controller to front of control valve, swing section

1шт.

6

152906A1

HOSE

- 173-1/4 inch (4400 mm) long, swing, left-hand controller to rear of control valve, swing section

1шт.

7

153207A1

HOSE

- 145-5/8 inch (3700 mm) long, arm, left-hand controller to rear of cushion valve, arm section

1шт.

8

152901A1

HOSE

- 134 inch (3400 mm) long, arm, left-hand controller to front of cushion valve, arm section

1шт.

9

152762A1

CLAMP

- hose

4шт.

11

892-11010

LOCK WASHER,M10

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

13

153319A1

HOSE ASSY.

HOSE - 31-1/2 inch (800 mm) long, arm, front side port of cushion valve arm section to left-hand front port of control valve arm section

1шт.

14

152889A1

HOSE ASSY.

HOSE - 25-5/8 inch (650 mm) long, arm, rear side port of cushion valve arm section to left-hand rear port of control valve arm section

1шт.

15

152781A1

HOSE

- 33-7/16 inch (850 mm) long, boom, front side port of cushion valve boom section to right-hand front port of control valve boom section

1шт.

16

152872A1

HOSE

- 27-5/8 inch (700 mm) long, boom, rear side port of cushion valve boom section to right-hand rear port of control valve boom section

1шт.

17

152619A1

GROMMET

- rubber

1шт.

18

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 19

2шт.

19

154475A1

O-RING

- elbow

1шт.

20

153374A1

SHUT-OFF VALVE

VALVE - shuttle

2шт.

21

152309A1

SOCKET

REDUCER - special, Includes: Ref. 22

2шт.

22

154475A1

O-RING

- reducer

1шт.

23

153596A1

ADAPTER

ELBOW - 90 degree

2шт.

24

153526A1

ELBOW

- 90 degree, special

2шт.

25

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 26

4шт.

26

154475A1

O-RING

- adapter

1шт.

27

153495A1

ADAPTER

ELBOW - 90 degree

8шт.

28

153413A1

SOCKET

REDUCER - special, Includes: Ref. 29

5шт.

29

154475A1

O-RING

- reducer

1шт.

30

153589A1

TEE

- hydraulic

2шт.

31

150163A1

NIPPLE, LUBE

ADAPTER - straight, Includes: Ref. 32

2шт.

32

154475A1

O-RING

- adapter

1шт.

33

153038A1

VALVE, CONTROL

VALVE - hydraulic control, parts list figures 8-072 - 8-078

1шт.

34

153008A1

CUSHION ASSY.

VALVE - cushion, parts list figure 8-052

1шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
