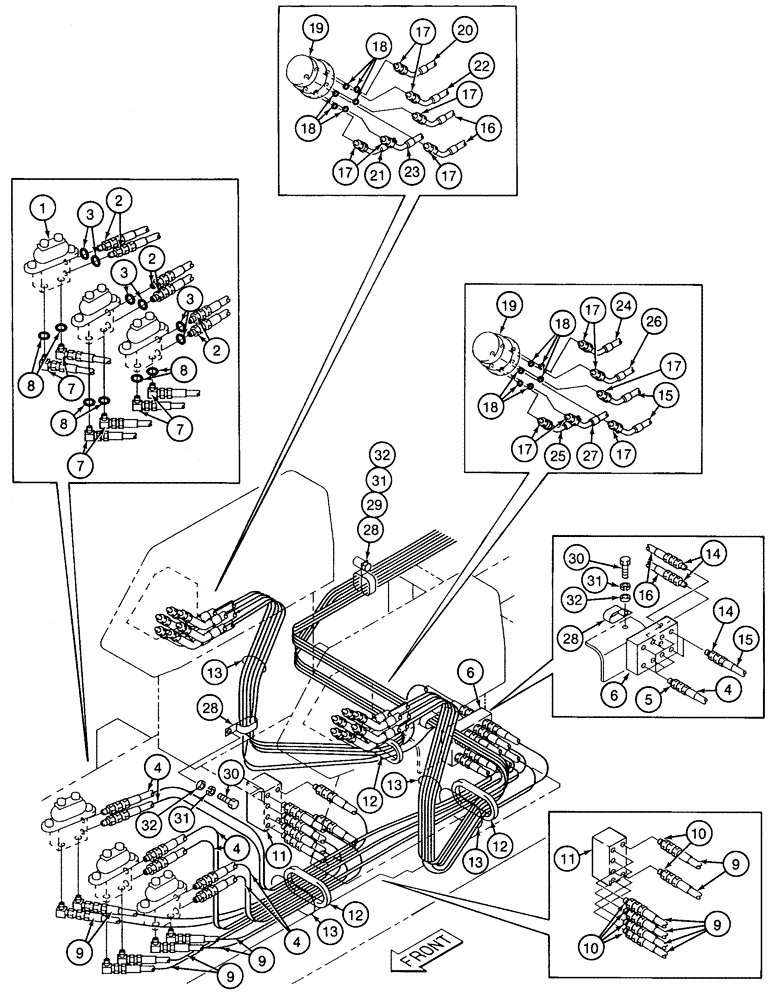

Запчасти Case 9060 (8-026) - HYDRAULIC CONTROL CIRCUIT, FOOT AND HAND CONTROLS TO SHUTTLE VALVE AND MANIFOLD (08) - HYDRAULICS

1

153090A1

VALVE

- remote control, parts list figure 8-056

3шт.

2

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 3

6шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

4

153483A1

HOSE ASSY.

HOSE - 57 inch (1450 mm) long, rear of foot control, Serial Range: valve-manifold

6шт.

5

153603A1

ADAPTER

- straight

6шт.

6

152457A1

MANIFOLD

- hydraulic, controller valve hoses

1шт.

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 8

6шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

9

152514A1

HOSE,63mm ID x 1000mm L

- To shuttle valve 63.00 mm ID x 1000.00 mm

6шт.

10

153603A1

ADAPTER

- straight, hydraulic

6шт.

11

152744A1

SHUT-OFF VALVE

VALVE - shuttle, parts list figure 8-058

1шт.

12

152619A1

GROMMET

- rubber

4шт.

13

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

14

152748A1

ADAPTER

- straight, hydraulic

4шт.

15

152958A1

HOSE

- 63 inch (1600 mm) long, supply and return, left-hand controller, Serial Range: -manifold

2шт.

16

153513A1

HOSE

- 67 inch (1700 mm) long, supply and return, right-hand controller, Serial Range: -manifold

2шт.

17

152747A1

ADAPTER

- straight, hydraulic, Includes: Ref. 18

12шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

19

153316A1

VALVE

- remote control, hand operated, parts list figure 8-054

2шт.

20

152904A1

HOSE

- 157-1/2 inch (4000 mm) long, bucket, right-hand controller to rear of control valve, bucket section

1шт.

21

153210A1

HOSE

- 165-3/8 inch (4200 mm) long, bucket, right-hand controller to front of control valve, bucket section

1шт.

22

153509A1

HOSE

- 118-1/4 inch (3000 mm) long, boom, right-hand controller to front of cushion valve, boom section

1шт.

23

153510A1

HOSE

- 130 inch (3300 mm) long, boom, right-hand controller to rear of cushion valve, boom section

1шт.

24

153019A1

HOSE

- hydraulic, swing, left-hand controller to front of control valve, swing section

1шт.

25

152906A1

HOSE

- 173-1/4 inch (4400 mm) long, swing, left-hand controller to rear of control valve, swing section

1шт.

26

153207A1

HOSE

- 145-5/8 inch (3700 mm) long, arm, left-hand controller to rear of cushion valve, arm section

1шт.

27

152901A1

HOSE

- 134 inch (3400 mm) long, arm, left-hand controller to front of cushion valve, arm section

1шт.

28

152762A1

CLAMP

- hose

4шт.

30

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

31

892-11010

LOCK WASHER,M10

3шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

3шт.

29

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
