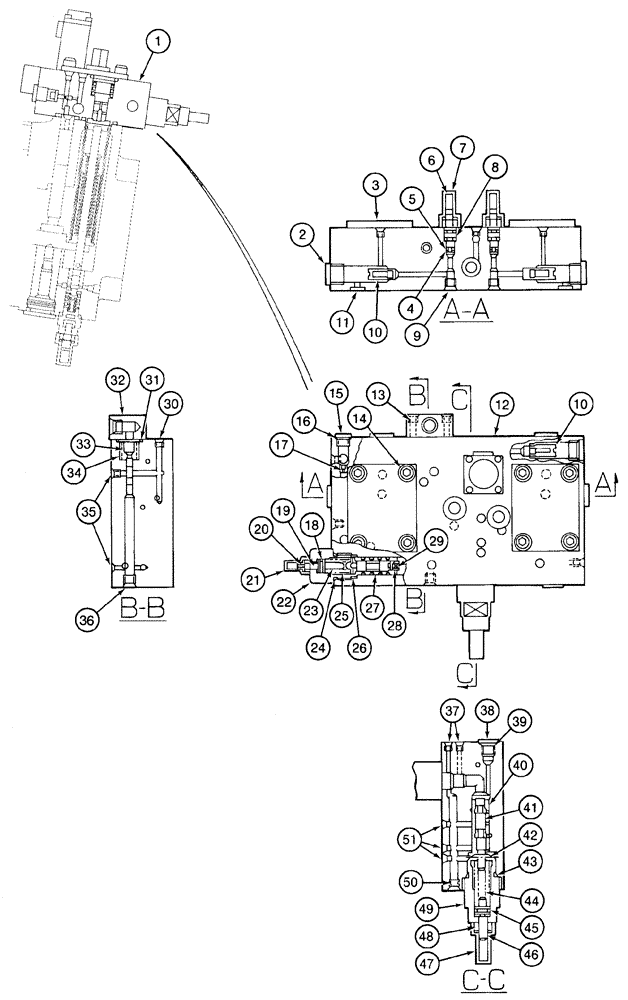

Запчасти Case 9060 (8-020) - 152813A1 & 160661A1 EQUIPMENT PUMPS, CONTROL ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
152813A1
PUMP, HYDRAULIC
PUMP - hydraulic, parts list Figures 8-014 - 8-022, order 160661A1 for service, Serial Range: -EAC0600033
1шт.
160661A1
PUMP
- hydraulic, parts list Figures 8-014 - 8-022, Includes: Ref. 1 - 36 & Ref. 37 - 51 on Figure 8-022, Start Serial: EAC0600033
1шт.
1
164854A1
REGULATOR
CONTROL - equipment pump
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - port
2шт.
3
NSS
NOT SOLD SEPARAT
PLATE - cover
2шт.
4
154443A1
O-RING
- flow adjuster
2шт.
5
153937A1
BACK-UP RING
RING - backup, adjuster seal
2шт.
6
829-1308
NUT,M8, Cl 10
- hex, 8 mm - 1.25, Cl 10
2шт.
7
156363A1
CAP
COVER - adjuster
2шт.
8
NSS
NOT SOLD SEPARAT
SCREW - adjusting
2шт.
9
NSS
NOT SOLD SEPARAT
PLUG - port
1шт.
10
155352A1
FILTER CARTRIDGE
ELEMENT - filter
3шт.
11
155206A1
O-RING
- port
2шт.
12
NSS
NOT SOLD SEPARAT
HOUSING - control
1шт.
13
NSS
NOT SOLD SEPARAT
BOLT - hex socket, special
2шт.
14
NSS
NOT SOLD SEPARAT
BOLT - hex socket, 10 - 1.5 x 80 mm, class 12.9
8шт.
15
NSS
NOT SOLD SEPARAT
PLUG - port
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
17
NSS
NOT SOLD SEPARAT
FITTING - orifice
1шт.
18
155086A1
O-RING
- spring seat
1шт.
19
829-1306
NUT,M6, Cl 10
- hex, 6 mm - 1.0, class 10
1шт.
20
878-50625
SET SCREW,Hex Skt, M6 x 20mm, Dog Pt
SCREW - set, hex socket, 6 - 1.0 x 25 mm, dog point, 152813A1 pump only
1шт.
20
NSS
NOT SOLD SEPARAT
SCREW - set, hex socket, 160661A1 pump only
1шт.
21
156361A1
CAP
- relief
1шт.
22
NSS
NOT SOLD SEPARAT
GUIDE - relief
1шт.
23
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
24
154495A1
O-RING
- relief valve
1шт.
25
NSS
NOT SOLD SEPARAT
SPRING - relief
1шт.
26
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
27
NSS
NOT SOLD SEPARAT
SLEEVE - relief
1шт.
28
NSS
NOT SOLD SEPARAT
SPOOL - relief
1шт.
29
NSS
NOT SOLD SEPARAT
FITTING - orifice
1шт.
30
NSS
NOT SOLD SEPARAT
PLUG - port
1шт.
31
154498A1
O-RING
- spool cover
1шт.
32
156367A1
COVER
- spool
1шт.
33
NSS
NOT SOLD SEPARAT
SPOOL - relief
1шт.
34
156108A1
SPRING
- valve
1шт.
35
NSS
NOT SOLD SEPARAT
PLUG - port
1шт.
36
NSS
NOT SOLD SEPARAT
PLUG - port
1шт.
Выбрано товаров: 39
