Запчасти Case 9060 (8-016) - 152813A1 AND 160661A1 EQUIPMENT PUMPS, VALVE SECTION (08) - HYDRAULICS

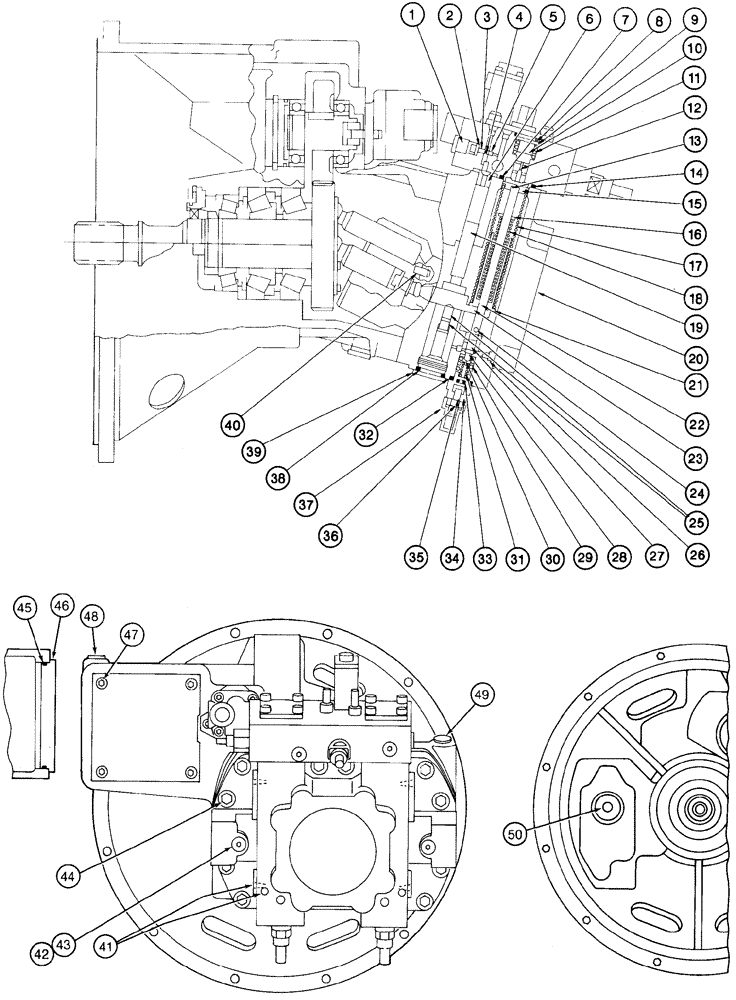

Схема запчастей Case 9060 - (8-016) - 152813A1 AND 160661A1 EQUIPMENT PUMPS, VALVE SECTION (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

152813A1

PUMP, HYDRAULIC

PUMP - hydraulic, parts list Figure 8-014 - 8-022, order 160661A1 pump for service, Includes: Ref. 1 - 50, Serial Range: -EAC0600033

1шт.

160661A1

PUMP

- hydraulic, parts list Figures 8-014 - 8-022, Includes: Ref. 1 - 50, Start Serial: EAC0600033

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

2

NSS

NOT SOLD SEPARAT

GASKET - plug

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

4

NSS

NOT SOLD SEPARAT

PLUG - valve

2шт.

5

NSS

NOT SOLD SEPARAT

SEAT - ball

2шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - piston

2шт.

7

155207A1

O-RING

- pump

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING - pump

2шт.

9

NSS

NOT SOLD SEPARAT

SHIM - washer

6шт.

10

NSS

NOT SOLD SEPARAT

PISTON - regulator

2шт.

11

NSS

NOT SOLD SEPARAT

SPRING - regulator

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING - ball

1шт.

13

NSS

NOT SOLD SEPARAT

RING - regulator

2шт.

14

155191A1

O-RING

- pump to control body

2шт.

15

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

16

NSS

NOT SOLD SEPARAT

SHIM - spring tension

4шт.

17

NSS

NOT SOLD SEPARAT

SPRING - control, outer

2шт.

18

NSS

NOT SOLD SEPARAT

SPRING - control, inner

2шт.

19

NSS

NOT SOLD SEPARAT

PLUNGER - control

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - control

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

22

NSS

NOT SOLD SEPARAT

ROD - control

2шт.

23

NSS

NOT SOLD SEPARAT

ROD - control assembly

2шт.

24

NSS

NOT SOLD SEPARAT

PIN - spring

2шт.

25

NSS

NOT SOLD SEPARAT

SCREW - set, hex socket, 12 - 1.75 x 16 mm, dog point

4шт.

26

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - control

2шт.

28

NSS

NOT SOLD SEPARAT

BUSHING - control assembly

2шт.

29

NSS

NOT SOLD SEPARAT

SPRING - outer

2шт.

30

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

31

NSS

NOT SOLD SEPARAT

SPRING - inner

2шт.

32

154491A1

O-RING

- spring guide, outer

2шт.

33

155086A1

O-RING

- spring guide, inner

2шт.

34

NSS

NOT SOLD SEPARAT

GUIDE - spring

2шт.

35

159383A1

SCREW

- adjusting

2шт.

36

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

2шт.

37

156362A1

CAP

- relief

2шт.

38

NSS

NOT SOLD SEPARAT

O-RING - plug

2шт.

39

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

40

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

41

NSS

NOT SOLD SEPARAT

PLUG - port

12шт.

42

NSS

NOT SOLD SEPARAT

O-RING - plug

2шт.

43

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

44

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 16 - 2.0 x 45 mm, class 12.9

12шт.

45

NSS

NOT SOLD SEPARAT

O-RING - seal, cover

1шт.

46

NSS

NOT SOLD SEPARAT

COVER - access

1шт.

47

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

48

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

49

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

50

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

Выбрано товаров: 52
